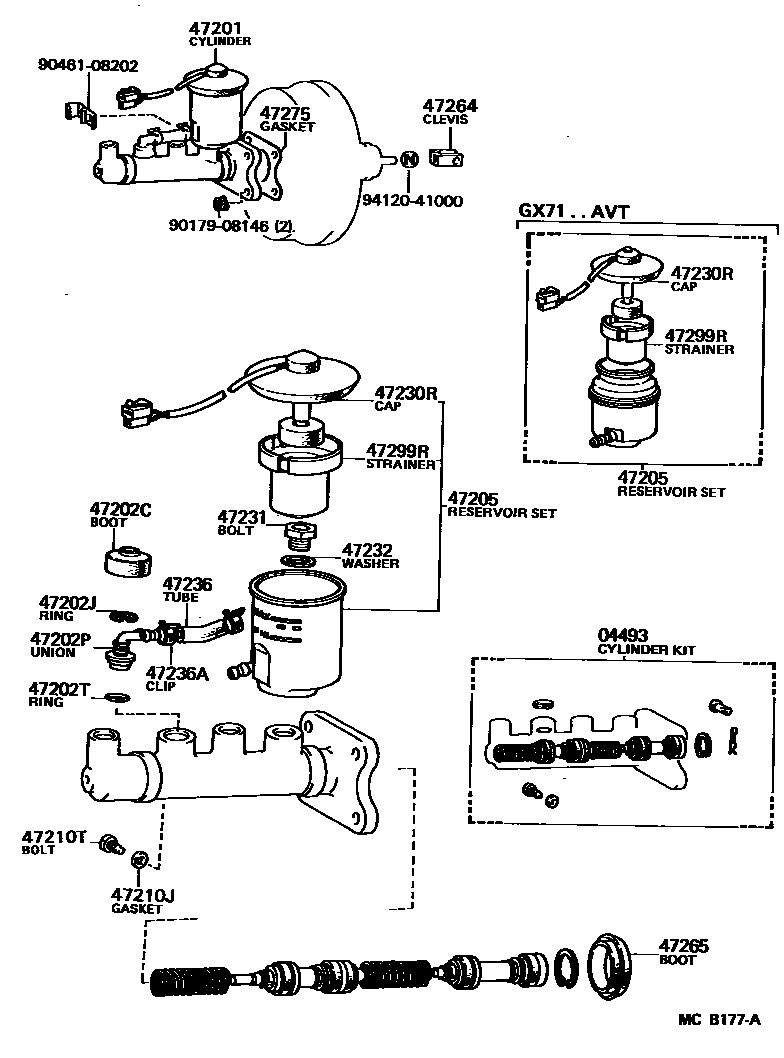

BRAKE MASTER CYLINDER

0001 1 0002 1 0004 1 0005 1

04493CYLINDER KIT, BRAKE MASTER

main04493-22120iLX70..TD198408-198808

main04493-22130iGX71..SXL198408-198808

main04493-22130iLX70,SX70,YX7#..KYO198408-198808

*41

main04493-22140iLX70,SX70,YX7#..KYO198408-198808

*42

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47200-2A410iLX70,SX70,YX7#..KYO198408-198808

*42

main47201-22440iGX71..AVT..EFI198408-198510

main47201-22450iGX71..SXL198408-198808

main47201-22490iMX71198408-198808

main47201-22500iGX71..TWC198408-198808

main47201-22530iLX70,SX70,YX7#..KYO198408-198808

*41

main47201-22560iGX71..AVT..EFI198510-198808

main47201-22570iLX70..TD198608-198808

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iGX71,LX70,MX71,SX70,YX7#198408-198808

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iGX71,LX70,MX71,SX70,YX7#198408-198808

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iGX71,LX70,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

sub90407-10004

main90407-10004iMX71198408-198808

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iGX71,LX70,MX71,SX70,YX7#198408-198808

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-22170iGX71..TWC198408-198808

main47202-22180iGX71,MX71..TBO,TWT198408-198808

main47202-22210iLX70,SX70,YX7#..KYO198408-198808

main47202-22220iGX71,LX70,SX70..SXL,XG,XL198408-198808

main47202-22230iGX71..AVT..EFI198510-198808

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGX71,LX70,MX71,SX70,YX7#198408-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX71,LX70,MX71,SX70,YX7#198408-198808

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-20051iLX70,SX70,YX7#198408-198808

sub84460-12011

main84460-22020iGX71..AVT..EFI198510-198808

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iLX70,MX71,SX70,YX7#..AVT,KYO198408-198808

main47231-22010iLX70,SX70..XG,XL198509-198808

main47231-30010iGX71,LX70,SX70..AVT,SXL,XG,XL198408-198509

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198408-198808

47236TUBE, RESERVOIR BRAKE

main47234-20010iGX71,LX70,MX71,SX70,YX7#198408-198808

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iGX71,LX70,MX71,SX70,YX7#198408-198808

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

47265BOOT, MASTER CYLINDER

main47265-12020iLX70,SX70,YX7#..KYO198408-198808

*42

main47265-20050iGX71,LX70,MX71,SX70,YX7#198408-198808

47275GASKET, BRAKE MASTER CYLINDER

main47275-22020iLX70,SX70,YX7#..KYO198408-198808

*42

main47275-24010iGX71,LX70,MX71,SX70,YX7#198408-198808

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-22030iGX71,LX70,MX71,SX70,YX70198408-198808

main47299-32010iGX71..AVT..EFI198510-198808

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

21 parts on this diagram · 4 diagrams in section
