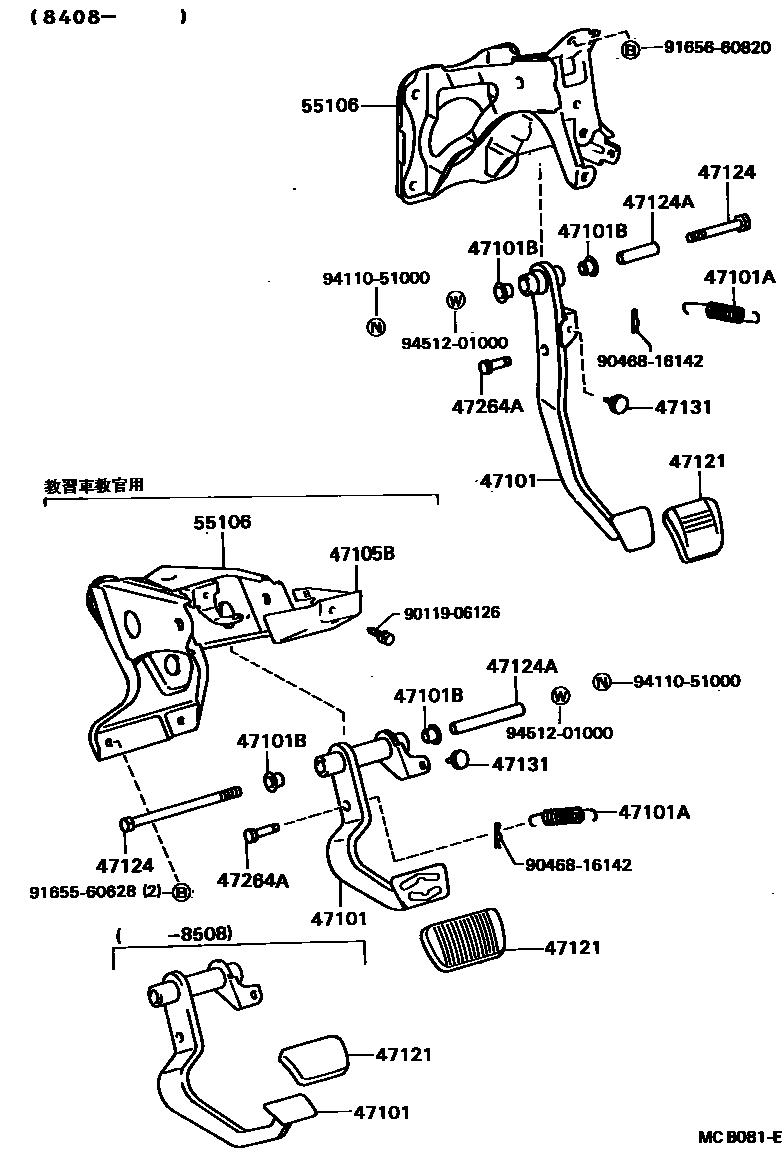

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22240iGX71,LX70,SX70,YX7#..5F198408-198808

main47101-22250iGX71,LX70,MX71,SX70..4FC198408-198607

main47101-22280iLX70,SX70,YX70..KYO198508-198607

*42

main47101-22290iLX70,SX70,YX70..KYO198408-198508

*42

sub47101-22280

sub47121-22020

main47101-22300iGX71,LX70,SX70..4FC198607-198808

main47101-22320iLX70,SX70,YX7#..KYO198607-198808

*42

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iGX71,LX70,MX71,SX70,YX7#198408-198808

main90507-14018iLX70,SX70,YX7#..KYO198408-198808

*42

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGX71,LX70,SX70,YX7#198605-198808

main90386-13192iGX71,LX70,MX71,SX70,YX70198408-198605

47105BREINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-22060iLX70,SX70,YX7#..KYO198408-198808

*42

47121PAD, BRAKE PEDAL

main31321-14020iGX71,LX70,SX70,YX7#..5F198408-198808

main31321-30040iLX70,SX70,YX70..KYO198408-198508

*42

main47121-14010iGX71,LX70,SX70..4FC198607-198808

*42

main47121-22020iLX70,SX70,YX70..KYO198508-198607

*42

main47121-22020iGX71,LX70,MX71,SX70..4FC198408-198607

47124SHAFT, BRAKE PEDAL

main90101-10039iGX71,LX70,MX71,SX70,YX7#198408-198808

main90101-10380iLX70,SX70,YX7#..KYO198408-198808

*42

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGX71,LX70,MX71,SX70,YX7#198408-198808

main90387-10044iLX70,SX70,YX7#..KYO198408-198808

*42

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iGX71,LX70,MX71,SX70,YX70198408-198605

main90541-06032iGX71,LX70,SX70,YX7#198605-198808

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10017iLX70,SX70,YX7#..KYO198408-198808

*42

main90249-10064iGX71,LX70,MX71,SX70,YX7#198408-198808

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-22130iGX71,LX70,MX71,SX70,YX7#198408-198708

main55106-22150iGX71,LX70,SX70,YX72198708-198808

main55108-22010iLX70,SX70,YX7#..KYO198408-198808

*42

9011906126

main90119-06126

9046816142

main90468-16142

9165560628

main91655-60628

9165660820

main91656-60820

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 1 diagram in section
