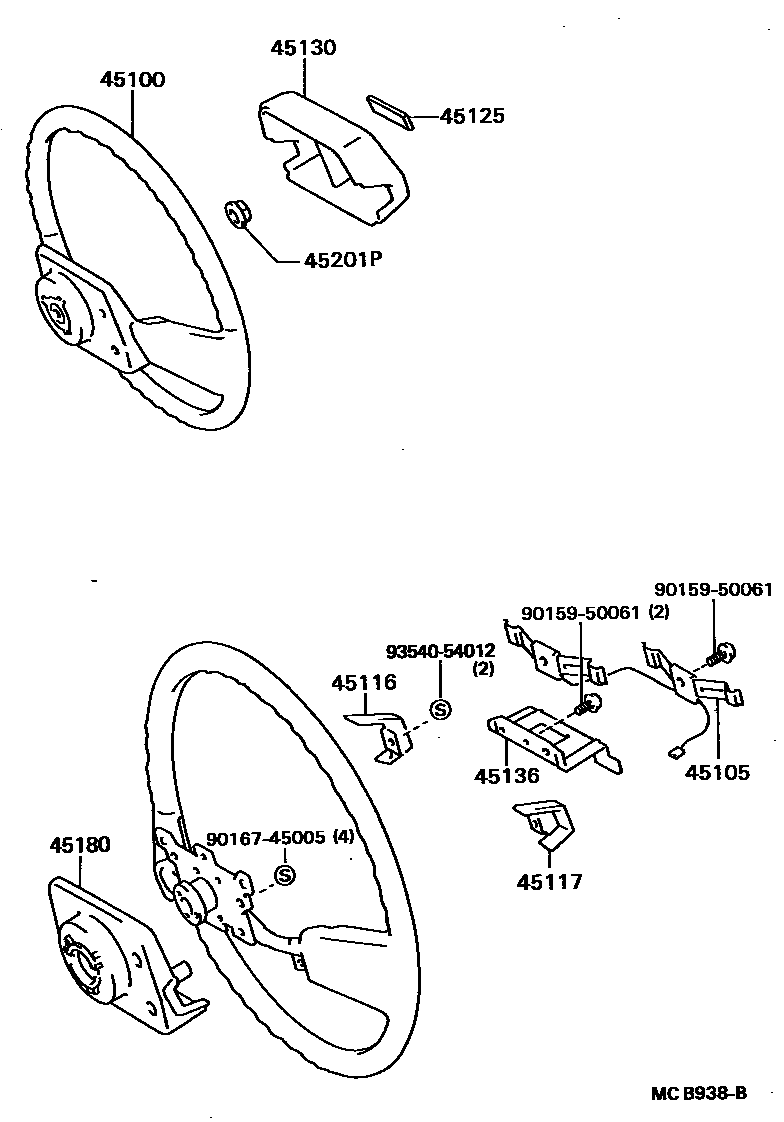

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-22230-02iGX71,LX70,SX70..SXL,XG198408-198608

MAROON,MAROON,TRIM3#

sub45100-22230

main45100-22230-03iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

GRAY,COOL GRAY,TRIM1#

sub45100-22230

main45100-22230-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

sub45100-22230

main45100-22240-02iGX71,MX71..AVT..(EFI,TBO)198408-198608

MAROON,MAROON,TRIM3#

sub45100-22240

main45100-22240-03iGX71,MX71..AVT..(EFI,TBO)198408-198608

GRAY,COOL GRAY,TRIM1#

sub45100-22240

main45100-22240-04iGX71..AVT..EFI198608-198808

BLUE,DARK BLUE,TRIM8#

sub45100-22240

main45100-22240-05iGX71,MX71..AVT..(EFI,TBO)198408-198608

BEIGE,BEIGE,TRIM4#

sub45100-22240

main45100-22240-12iGX71..AVT..EFI198608-198808

MAROON,MAROON,TRIM3#

sub45100-22240

main45100-22240-15iGX71..AVT..EFI198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-22240

main45100-22250-02iGX71..TWC198408-198608

MAROON,MAROON,TRIM3#

sub45100-22250

main45100-22250-03iGX71..TWC198408-198608

GRAY,COOL GRAY,TRIM1#

sub45100-22250

main45100-22250-04iGX71..TWC198608-198808

BLUE,DARK BLUE,TRIM8#

sub45100-22250

main45100-22250-05iGX71..TWC198408-198608

BEIGE,BEIGE,TRIM4#

sub45100-22250

main45100-22250-05iGX71..AVT..EFI198601-198602

BEIGE,LORDLY,BEIGE,TRIM4#

sub45100-22250

main45100-22250-05iGX71..AVT..EFI198705

sub45100-22250

main45100-22250-12iGX71..TWC198608-198808

MAROON,MAROON,TRIM3#

sub45100-22250

main45100-22250-12iGX71..AVT..EFI198801

sub45100-22250

main45100-22250-15iGX71..AVT..EFI198701-198703

sub45100-22250

main45100-22250-15iGX71..TWC198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-22250

main45100-22280-02iGX71..TWT198510-198608

MAROON,MAROON,TRIM3#

sub45100-22280

main45100-22280-03iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

sub45100-22280

main45100-22280-04iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

sub45100-22280

main45100-22280-05iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

sub45100-22280

main45100-22280-12iGX71..TWT198608-198808

MAROON,MAROON,TRIM3#

sub45100-22280

main45100-22280-15iGX71..TWT198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-22280

main45100-22290-02iGX71,LX70,SX70..SXL,XG198608-198808

MAROON,MAROON,TRIM3#

sub45100-22291

main45100-22290-04iGX71..SXL198608-198808

BLUE,DARK BLUE,TRIM8#

sub45100-22291

main45100-22290-05iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,BEIGE,TRIM4#

sub45100-22291

main45100-22300-02iGX71..TWC198705

sub45100-22300

main45100-22300-02iGX71..TWC198801

sub45100-22300

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-22080iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-22050iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

main45116-22060iGX71,MX71..AVT198408-198808

main45116-22070-02iGX71,LX70,SX70..SXL,XG198608-198808

MAROON,MAROON,TRIM3#

sub45116-22070

main45116-22070-04iLX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

sub45116-22070

main45116-22070-05iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,BEIGE,TRIM4#

sub45116-22070

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-22010iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

main45117-22020iGX71,MX71..AVT198408-198808

main45117-22030-02iGX71,LX70,SX70..SXL,XG198608-198808

MAROON,MAROON,TRIM3#

sub45117-22030

main45117-22030-04iGX71..SXL198608-198808

BLUE,DARK BLUE,TRIM8#

sub45117-22030

main45117-22030-05iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,BEIGE,TRIM4#

sub45117-22030

45125MARK, STEERING WHEEL PAD

main45125-22340iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

main45125-22380iGX71,MX71..AVT198408-198608

main45125-22480iLX70,SX70,YX72198608-198808

main45125-22510iGX71..AVT198608-198808

45130BUTTON ASSY, HORN

main45112-22130-02iGX71,LX70,SX70..SXL,XG198408-198608

MAROON,MAROON,TRIM3#

sub45112-22130

main45112-22130-03iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

GRAY,COOL,TRIM1#

sub45112-22130

main45112-22130-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

sub45112-22130

main45112-22180-02iGX71,LX70,SX70..SXL,XG198608-198808

MAROON,MAROON,TRIM3#

sub45112-22180

main45112-22180-04iGX71..EFI198608-198808

BLUE,DARK BLUE,TRIM8#

sub45112-22180

main45112-22180-05iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,BEIGE,TRIM4#

sub45112-22180

main45130-22230-02iGX71,MX71..AVT198408-198608

MAROON,MAROON,TRIM3#

sub45130-22230

main45130-22230-03iGX71,MX71..AVT198408-198608

GRAY,COOL GRAY,TRIM1#

sub45130-22230

main45130-22230-05iGX71,MX71..AVT198408-198608

BEIGE,BEIGE,TRIM4#

sub45130-22230

main45130-22250-02iGX71..TWT198510-198608

MAROON,MAROON,TRIM3#

sub45130-22250

main45130-22250-03iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

sub45130-22250

main45130-22250-04iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

sub45130-22250

main45130-22250-05iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

sub45130-22250

main45130-22250-12iGX71..TWT198608-198808

MAROON,MAROON,TRIM3#

sub45130-22250

main45130-22250-15iGX71..TWT198608-198808

BEIGE,BEIGE,TRIM4#

sub45130-22250

main45130-22280-02iGX71..TWC198608-198808

MAROON,MAROON,TRIM3#

main45130-22280-04iGX71..TWC198608-198808

BLUE,DARK BLUE,TRIM8#

main45130-22280-05iGX71..TWC198608-198808

BEIGE,BEIGE,TRIM4#

main45130-22280-05iGX71..AVT..EFI198705

main45130-22280-12iGX71..AVT..EFI198801

main45130-22300-02iGX71..TWC198705

main45130-22300-02iGX71..TWC198801

45136PLATE, HORN BUTTON CONTACT

main45136-12120iGX71..TWT198510-198808

main45136-22100iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

45180COVER SUB-ASSY, STEERING WHEEL

main45180-22010-02iGX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL198408-198608

MAROON,MAROON,TRIM3#

sub45180-22010

main45180-22010-03iGX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL198408-198608

GRAY,COOL GRAY,TRIM1#

sub45180-22010

main45180-22010-04iGX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

sub45180-22010

main45180-22010-05iGX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

sub45180-22010

main45180-22010-12iGX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL198608-198808

MAROON,MAROON,TRIM3#

sub45180-22010

main45180-22010-15iGX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL198608-198808

BEIGE,BEIGE,TRIM4#

sub45180-22010

main45180-22020-02iGX71..TWT198510-198608

MAROON,MAROON,TRIM3#

sub45180-22020

main45180-22020-03iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

sub45180-22020

main45180-22020-04iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

sub45180-22020

main45180-22020-05iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

sub45180-22020

main45180-22020-12iGX71..TWT198608-198808

MAROON,MAROON,TRIM3#

sub45180-22020

main45180-22020-15iGX71..TWT198608-198808

BEIGE,BEIGE,TRIM4#

sub45180-22020

45201PNUT, STEERING WHEEL SET

main90179-12086iGX71,LX70,MX71,SX70,YX7#198408-198808

9015950061

main90159-50061

9016745005

main90167-45005

9354054012

main93540-54012

12 parts on this diagram · 2 diagrams in section
