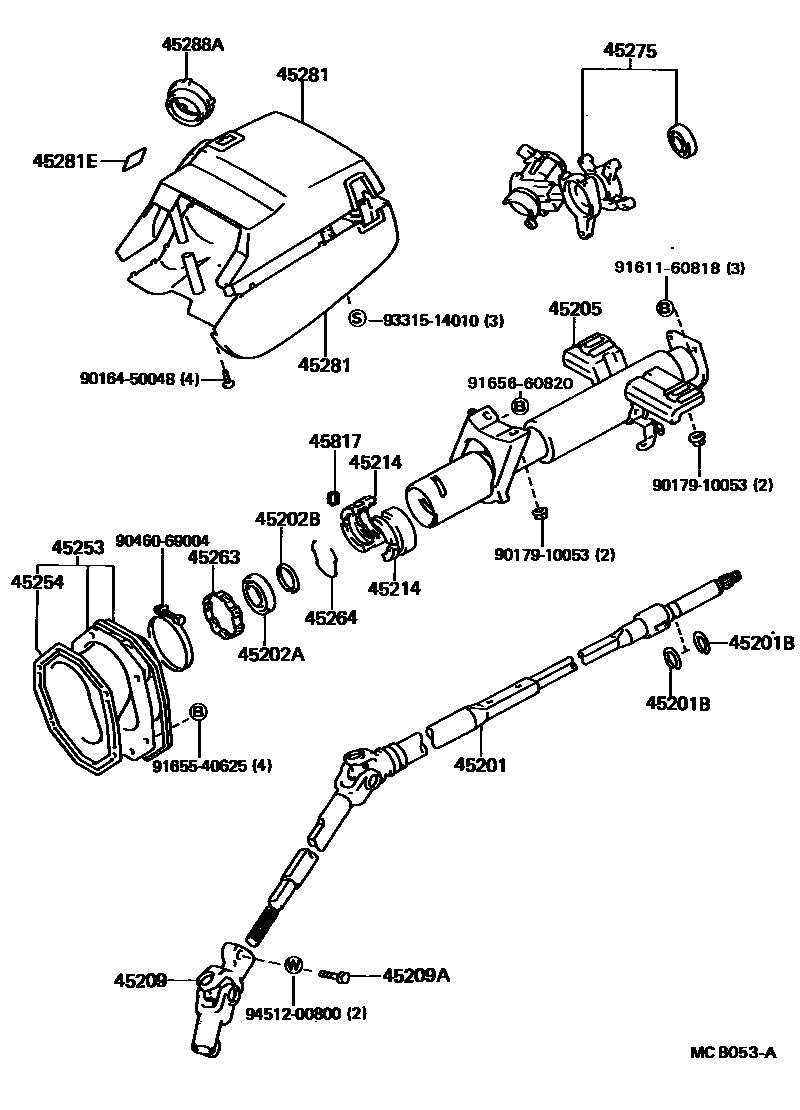

STEERING COLUMN & SHAFT

0001 1 0002 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22120iGX71,LX70,MX71,SX70,YX7#198408-198808

W/TILT STEERING

sub45210-22050

main45210-22130iGX71,LX70,MX71,SX70,YX7#198408-198808

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGX71,LX70,MX71,SX70,YX7#198408-198808

main90520-17196iGX71,LX70,MX71,SX70,YX7#198408-198808

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-22070iGX71..TWC198408-198808

main45220-22080iLX70,SX70,YX7#..KYO198408-198808

main45220-22130iGX71..EFI198408-198808

W/POWER STEERING

main45220-22130iGX71,MX71..AVT..(EFI,TBO)198506-198608

main45220-22140iGX71,MX71..AVT..(EFI,TBO)198408-198506

W/POWER STEERING

sub45220-22130

main45220-22160iGX71..TWT198608-198808

45202ABEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)

main90363-30007iGX71,LX70,MX71,SX70,YX7#198408-198808

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iGX71,LX70,MX71,SX70,YX7#198408-198808

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-22160iYX72198408-198808

W/TILT STEERING

main45870-22170iLX70,SX70,YX7#..KYO198408-198808

main45870-22180iGX71..TWC198408-198808

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-22010iGX71..TWT198510-198808

sub45206-22010

main45209-32010iLX70,SX70,YX7#..KYO198408-198808

sub45209-10020

main45209-32020iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

W/POWER STEERING

sub45209-16010

45209ABOLT, HEXAGON(FOR STEERING SLIDING YOKE SET)

main90101-08070iGX71,LX70,MX71,SX70,YX7#198408-198808

sub90119-08560

45214RETAINER, MAIN SHAFT SPRING

main45214-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

45253COVER, STEERING COLUMN HOLE

main45025-22070iGX71,LX70,MX71,SX70,YX7#198408-198808

45254SHIELD, STEERING COLUMN HOLE

main45254-22050iGX71,LX70,MX71,SX70,YX7#198408-198808

45263RING, STEERING COLUMN, NO.1

main45263-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

45264RING, STEERING COLUMN, NO.2

main45264-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-22290iGX71,MX71..AVT,GT198408-198608

main45280-22291iGX71..AVT,GT198608-198808

main45280-22300iLX70,SX70,YX70..KYO198408-198608

main45280-22301iLX70,SX70,YX72..KYO198608-198808

sub45280-22302

main45280-22330iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

W/TILT STEERING

sub45280-22290

main45280-22330iGX71..5F..TWT198510-198608

GT-S PACKAGE

sub45280-22290

main45280-22331iGX71..SXL198608-198808

W/TILT STEERING

sub45280-22291

45281HOUSING, STEERING COLUMN

main45286-22400-02iSX70..XL198510-198608

UPR,MAROON,XL EXTRA,MAROON,TRIM3#

sub45286-22400

main45286-22400-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

UPR,MAROON,MAROON,TRIM3#

sub45286-22400

main45286-22400-03iGX71,LX70,MX71,SX70,YX70198408-198608

UPR,GRAY,COOL GRAY,TRIM1#

sub45286-22400

main45286-22400-04iGX71,LX70,SX70,YX72198608-198808

UPR,BLUE,DARK BLUE,TRIM8#

sub45286-22400

main45286-22400-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

UPR,BEIGE,BEIGE,TRIM4#

sub45286-22400

main45286-22400-12iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

UPR,MAROON,XL EXTRA,MAROON,TRIM3#

sub45286-22400

main45286-22400-12iSX70..XL198608-198808

UPR,MAROON,MAROON,TRIM3#

sub45286-22400

main45286-22400-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

UPR,BEIGE,BEIGE,TRIM4#

sub45286-22400

main45287-22310-02iSX70..XL198510-198608

LWR,MAROON,XL EXTRA,MAROON,TRIM3#

sub45287-22310

main45287-22310-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

LWR,MAROON,W/TILT STEERING,MAROON,TRIM3#

sub45287-22310

main45287-22310-03iGX71,LX70,MX71,SX70,YX70198408-198608

LWR,GRAY,W/TILT STEERING,COOL GRAY,TRIM1#

sub45287-22310

main45287-22310-04iGX71,LX70,SX70,YX72198608-198808

LWR,BLUE,W/TILT STEERING,DARK BLUE,TRIM8#

sub45287-22310

main45287-22310-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

LWR,BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45287-22310

main45287-22310-12iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

LWR,MAROON,XL EXTRA,MAROON,TRIM3#

sub45287-22310

main45287-22310-12iSX70..XL198608-198808

LWR,MAROON,W/TILT STEERING,MAROON,TRIM3#

sub45287-22310

main45287-22310-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

LWR,BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45287-22310

main45287-22320-03iLX70,SX70,YX70..KYO198408-198608

LWR,GRAY,COOL GRAY,TRIM1#

sub45287-22320

main45287-22320-04iLX70,SX70,YX72..KYO198608-198808

LWR,BLUE,DARK BLUE,TRIM8#

sub45287-22320

45281EPLATE, SAFETY CAUTION

main45283-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

45288ASPACER, COLUMN COVER

main45288-30010iLX70,SX70,YX7#..KYO,XL198408-198808

45817STOPPER, STEERING SHAFT THRUST

main45817-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

9016450048

main90164-50048

9017910053

main90179-10053

9046069004

main90460-69004

9161160818

main91611-60818

9165540625

main91655-40625

9165660820

main91656-60820

9331514010

main93315-14010

9451200800

main94512-00800

26 parts on this diagram · 2 diagrams in section
