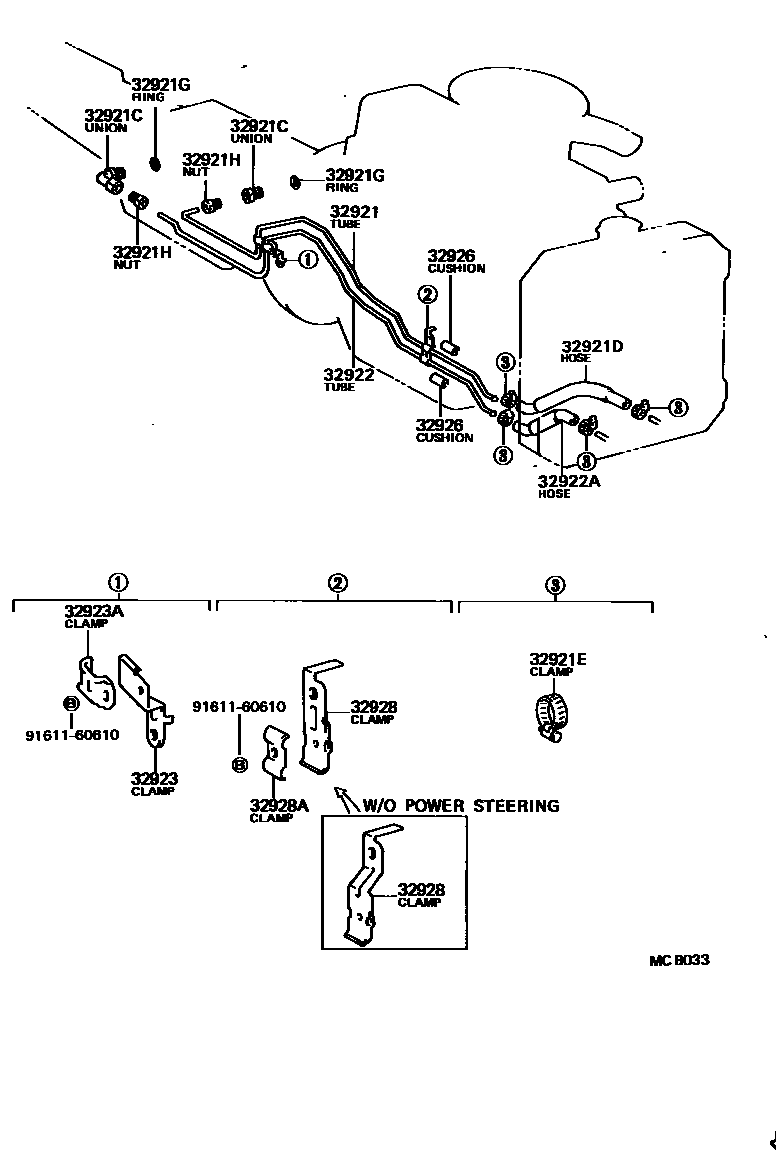

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22261iSX70..4FC198408-198608

main32921-22320iGX71..4FC..(EFI,TWC)198408-198808

sub32921-22321

main32921-22340iLX70..4FC198408-198608

main32921-22350iMX71198408-198510

main32921-22360iGX71..4FC..TWT198510-198601

main32921-22361iGX71..4FC..TWT198601-198808

main32921-22440iSX70..4FC198608-198808

main32921-22460iLX70..4FC198608-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

FR

main90404-16020iGX71..4FC..TWT198510-198808

FR

sub90404-16029

main90404-16021iMX71198408-198510

FR

main90407-14003iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

RR

main90407-16009iGX71..4FC..TWT198510-198808

RR

main90407-16010iMX71198408-198510

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22040iGX71..4FC..(EFI,TWC)198408-198608

main32941-22050iSX70..4FC198408-198608

main32941-22060iGX71,MX71..4FC..(TBO,TWT)198408-198601

L=300

main32941-22110iGX71..4FC..(EFI,TWC)198608-198808

sub32941-22111

main32941-22150iSX70..4FC198608-198808

main32942-22050iGX71..4FC..TWT198601-198608

L=230

main32942-22100iGX71..4FC..TWT198608-198808

sub32942-22101

main90445-14234iLX70..4FC198408-198608

sub90445-14514

main90445-15013iLX70..4FC198608-198808

sub90445-15016

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iLX70,SX70..4FC198408-198608

sub90460-20004

main90460-18002iGX71,MX71..4FC198408-198608

main90467-13039iGX71,LX70,SX70..4FC198608-198808

sub96135-51300

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

main90301-11006iGX71..4FC..TWT198510-198808

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22250iSX70..4FC198408-198608

main32922-22340iGX71..4FC..(EFI,TWC)198408-198808

main32922-22360iLX70..4FC198408-198608

main32922-22370iMX71198408-198510

main32922-22380iGX71..4FC..TWT198510-198601

main32922-22381iGX71..4FC..TWT198601-198808

main32922-22460iSX70..4FC198608-198808

main32922-22480iLX70..4FC198608-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22060iGX71..4FC..TWT198601-198608

L=300

main32941-22070iLX70..4FC198608-198808

sub32941-22071

main32941-22130iGX71..4FC..TWT198608-198808

L=300

sub32941-30060

main32941-30020iLX70..4FC198408-198608

main32942-22040iMX71198408-198510

main32942-22050iGX71..4FC..(EFI,TWC)198601-198608

L=230

main32942-22050iGX71..4FC198408-198601

main32942-22100iGX71..4FC..(EFI,TWC)198608-198808

sub32942-22101

main90445-14526iSX70..4FC198408-198608

sub90445-14514

main90445-15015iSX70..4FC198608-198808

sub90445-15046

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14020iSX70..4FC198408-198808

main32923-22040iLX70..4FC198408-198808

sub32923-22041

main32923-24010iGX71..4FC..TWT198510-198808

main32923-30080iGX71..4FC..EFI198408-198808

main32923-30110iMX71198408-198510

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-28010iLX70..4FC198408-198808

main32929-30060iSX70..4FC198408-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

main32926-30020iMX71198408-198510

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMX71198408-198510

main32928-14011iSX70..4FC..XL198408-198808

main32928-14020iSX70..4FC198408-198808

W/POWER STEERING

main32928-22050iLX70..4FC198408-198808

sub32928-22051

main32928-24010iGX71..4FC..EFI198408-198808

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-12085iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

main90949-01187iMX71198408-198510

9161160610

main91611-60610

14 parts on this diagram · 6 diagrams in section
