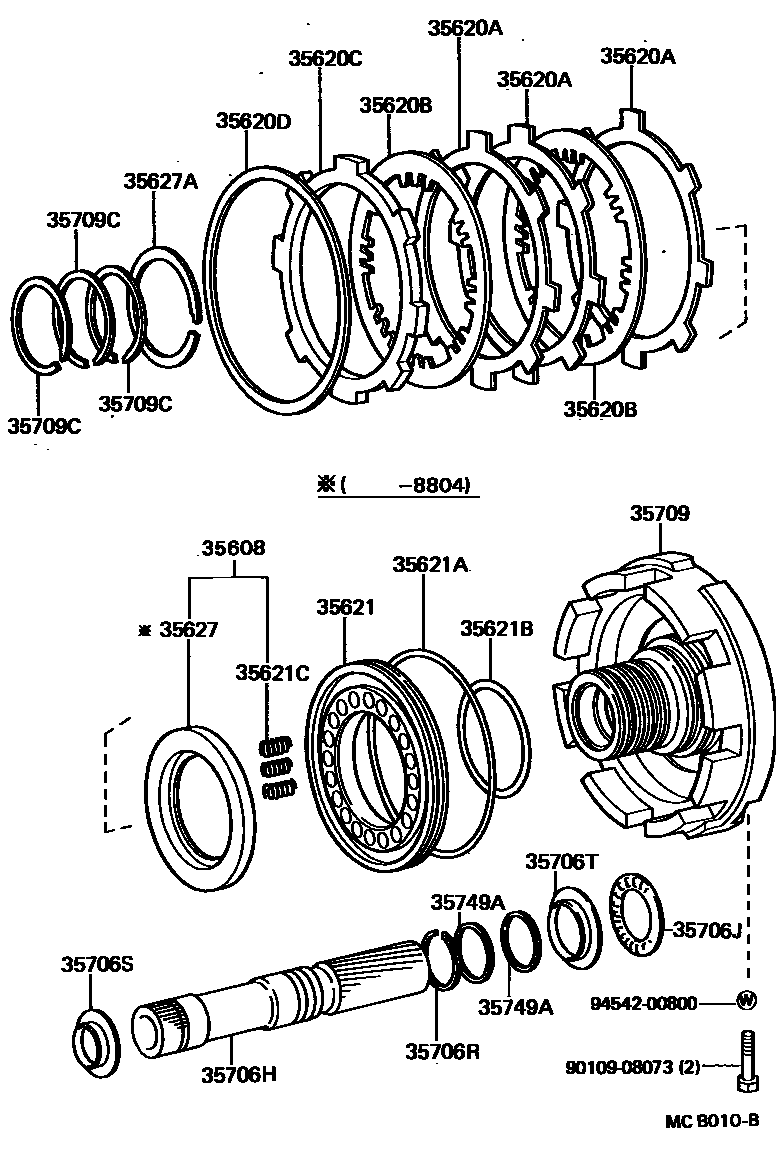

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1 0003 1

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGX71..4FC..EFI198703-198808

main35608-30010iGX71..4FC..TWT198510-198808

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060×3iGX71,LX70,MX71..4FC..(EFI,TBO,TD,TWC)198508-198808

main35634-22090×3iGX71,LX70,MX71..4FC198408-198508

main35648-30010×3iSX70..4FC198408-198808

T=2.0

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22050×2iGX71,LX70,MX71..4FC198408-198506

main35677-30030×2iSX70..4FC198408-198808

sub35677-30160

main35677-30100×2iGX71,LX70..4FC..(EFI,TD,TWC)198601-198808

35620CFLANGE, CLUTCH (FOR BRAKE)

main34625-22010iGX71..4FC..EFI198703-198808

sub35676-22030

main35675-22010iLX70,SX70..4FC198703-198808

sub35675-22140

35620DRING (FOR BRAKE)

main90521-99139iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35621PISTON, BRAKE, NO.1

main35621-30010iSX70..4FC198408-198808

main35624-22010iGX71,LX70,MX71..4FC..(EFI,TBO,TD,TWC)198408-198808

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99007iSX70..4FC198408-198808

sub90301-99107

main90301-99192iGX71,LX70,MX71..4FC..(EFI,TBO,TD,TWC)198408-198808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671×16iGX71,LX70,SX70..4FC..(CBR,TD,TWC)198703-198804

35627SEAT, BRAKE RETURN SPRING

main35627-22010iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198703

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22011iGX71..4FC..(EFI,TWC)198408-198808

main35706-30030iSX70..4FC198408-198808

main35706-30040iLX70..4FC198408-198808

main35706-30050iMX71198408-198510

main35706-30060iGX71..4FC..TWT198510-198601

main35706-30061iGX71..4FC..TWT198601-198808

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iMX71198408-198510

main90374-23012iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

main90374-30006iGX71..4FC..TWT198510-198808

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLX70,MX71,SX70..4FC198408-198808

main90520-34260iGX71..4FC..(EFI,TWC)198408-198808

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

35709SUPPORT SUB-ASSY, CENTER

main35709-12011iGX71..4FC..EFI198408-198808

main35709-30021iSX70..4FC198408-198808

main35709-30041iLX70..4FC198408-198808

main35709-30051iGX71,MX71..4FC..(TBO,TWC)198408-198808

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iGX71,MX71,SX70..4FC..(CBR,EFI,TBO,TWC)198408-198808

main35749-30010×2iGX71,LX70..4FC..(TD,TWT)198408-198808

9010908073

main90109-08073

9454200800

main94542-00800

21 parts on this diagram · 3 diagrams in section
