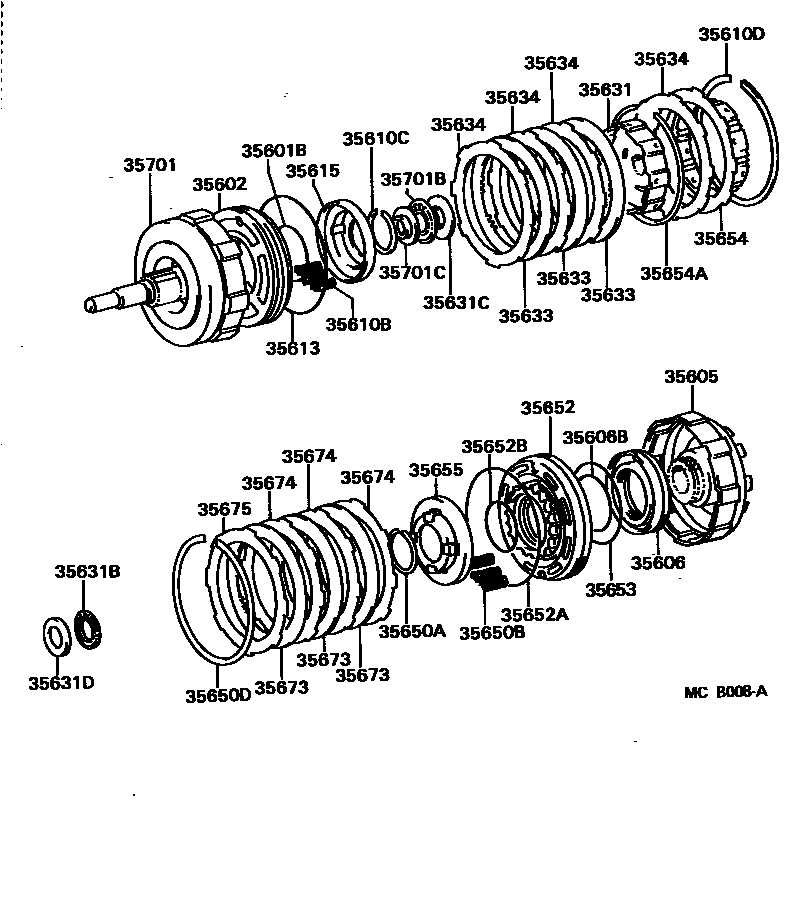

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1 0003 1

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-12031iSX70..4FC198408-198808

main35602-30042iSX70..4FC198703-198808

*30

main35602-30042iGX71,LX70..4FC..(EFI,TD)198408-198808

main35602-30050iMX71198408-198808

main35602-30060iGX71..4FC..TWT198510-198608

main35602-30061iGX71..4FC..TWT198608-198808

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iGX71,MX71,SX70..4FC..(CBR,TBO,TWC)198408-198808

main35605-30021iGX71,LX70..4FC..(EFI,TD)198408-198808

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iGX71,SX70..4FC..(CBR,EFI)198408-198808

main35606-30021iGX71,LX70,MX71..4FC..(TBO,TD,TWC)198408-198808

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-10671iSX70..4FC198408-198705

main90501-11023iSX70..4FC198408-198808

main90501-11023iSX70..4FC198703-198808

*30

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90521-99012iMX71198408-198510

main90521-99139iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iGX71,LX70,MX71..4FC..(EFI,TBO,TD,TWC)198408-198808

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30040iGX71,SX70..4FC198408-198508

sub35631-30050

main35631-30050iLX70,MX71..4FC198408-198808

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-24010iGX71..4FC..TWC198408-198808

main35677-30030iGX71,LX70,SX70..4FC..(CBR,EFI,TD)198408-198808

sub35677-30160

main35677-30060iMX71198408-198510

sub35677-35010

35634PLATE, FRONT CLUTCH

main35634-22040iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

main35634-30070iSX70..4FC198408-198808

main35634-30090iMX71198408-198510

main35634-30120iGX71..4FC..TWC198711-198808

main35634-30130iGX71..4FC..TWC198711-198808

sub35634-22040

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671iGX71,SX70..4FC..(CBR,EFI)198408-198808

main90501-11023iGX71,LX70,MX71..4FC..(TBO,TD,TWC)198408-198808

35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)

main90521-99139iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35652PISTON, REAR CLUTCH, NO.2

main35602-30041iGX71..4FC..EFI198408-198808

main35607-20021iSX70..4FC198408-198808

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

sub90301-83001

35654HUB, REAR CLUTCH

main35654-22010iSX70..4FC198408-198705

main35654-30010iGX71,LX70,MX71..4FC..(EFI,TBO,TD,TWC)198408-198808

main35654-30010iSX70..4FC198705-198808

*30

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99139iMX71198408-198510

main90521-99146iGX71,LX70,SX70..4FC..(CBR,EFI,TD,TWC)198408-198808

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

35673DISC, REAR CLUTCH

main35677-30030iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

sub35677-30160

35674PLATE, REAR CLUTCH

main35634-22040iGX71,SX70..4FC..(CBR,EFI)198408-198808

T=1.8

main35634-30070iGX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC)198408-198808

T=2.0

35675FLANGE, REAR CLUTCH

main35675-22010iGX71,MX71,SX70..4FC..(CBR,EFI,TBO,TWC)198408-198808

sub35675-22140

main35675-30020iGX71,MX71,SX70..4FC..(CBR,TBO,TWC)198408-198808

sub35675-22130

main35675-30030iGX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC)198408-198808

sub35675-22120

35701SHAFT SUB-ASSY, INPUT

main35701-22022iSX70..4FC198408-198808

sub35701-22023

sub90520-99012

main35701-30042iSX70..4FC198703-198808

*30

sub35701-30043

sub90520-99012

main35701-30042iGX71,LX70..4FC..(EFI,TD)198408-198808

sub35701-30043

sub90520-99012

main35701-30050iMX71198408-198808

sub35701-30051

sub90520-99012

main35701-30061iGX71..4FC..TWT198510-198608

main35701-30062iGX71..4FC..TWT198608-198808

sub35701-22050

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

main90374-25005iGX71..4FC..TWT198510-198808

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iGX71,LX70,MX71,SX70..4FC..(AVT,SXL,XG,XL)198408-198808

main35789-30110iGX71..4FC..TWT198510-198808

32 parts on this diagram · 3 diagrams in section
