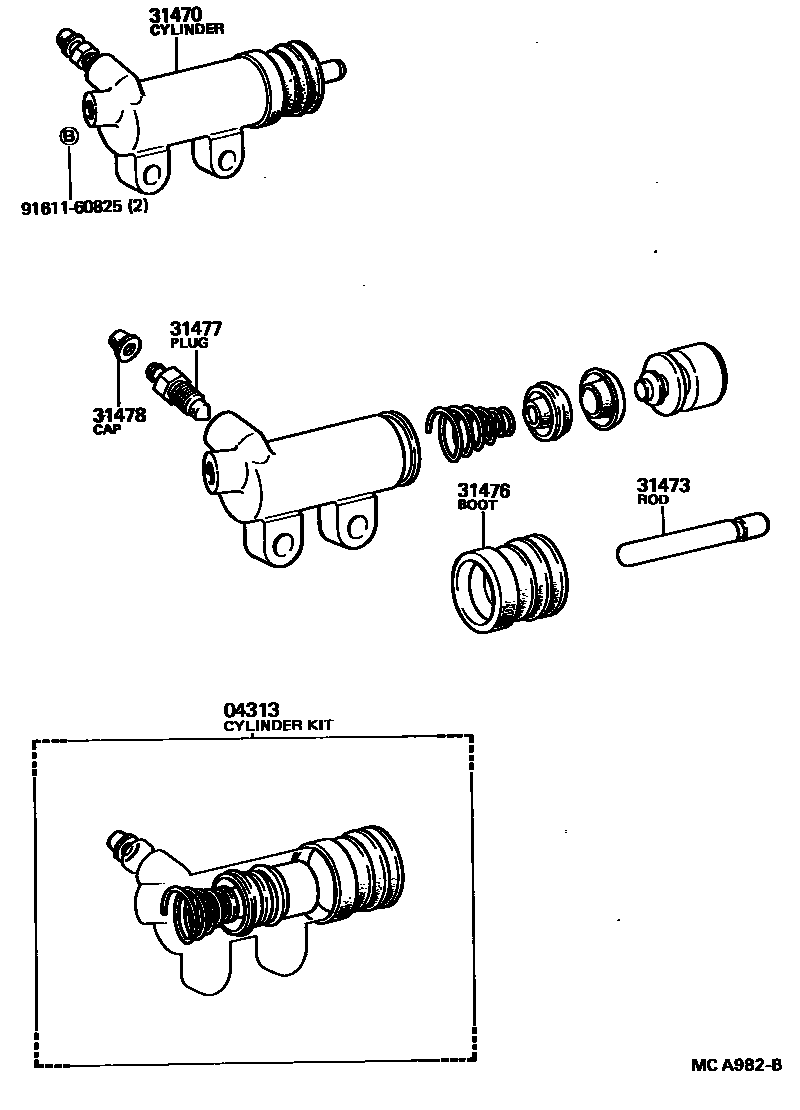

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYX72¥800198805-198808

main04313-22020iGX71,LX70,SX70,YX72..5F¥1,040198408-198808

sub04313-12030¥800

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14021iYX70¥7,400198408-198608

sub31470-20190¥7,500

main31470-22110iLX70..5F¥7,400198408-198808

sub31470-22111¥7,500

main31470-30220iGX71,SX70..5F¥7,200198408-198808

sub31470-30221¥7,400

main31470-30260iYX72¥7,400198805-198808

main31470-35050iYX72¥7,600198608-198805

sub31470-30260¥7,400

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iGX71,LX70,SX70,YX7#..5F¥720198408-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX71,LX70,SX70,YX7#..5F¥230198408-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX71,LX70,SX70,YX7#..5F¥180198408-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX71,LX70,SX70,YX7#..5F¥160198408-198808

9161160825

main91611-60825¥140

7 parts on this diagram · 1 diagram in section
