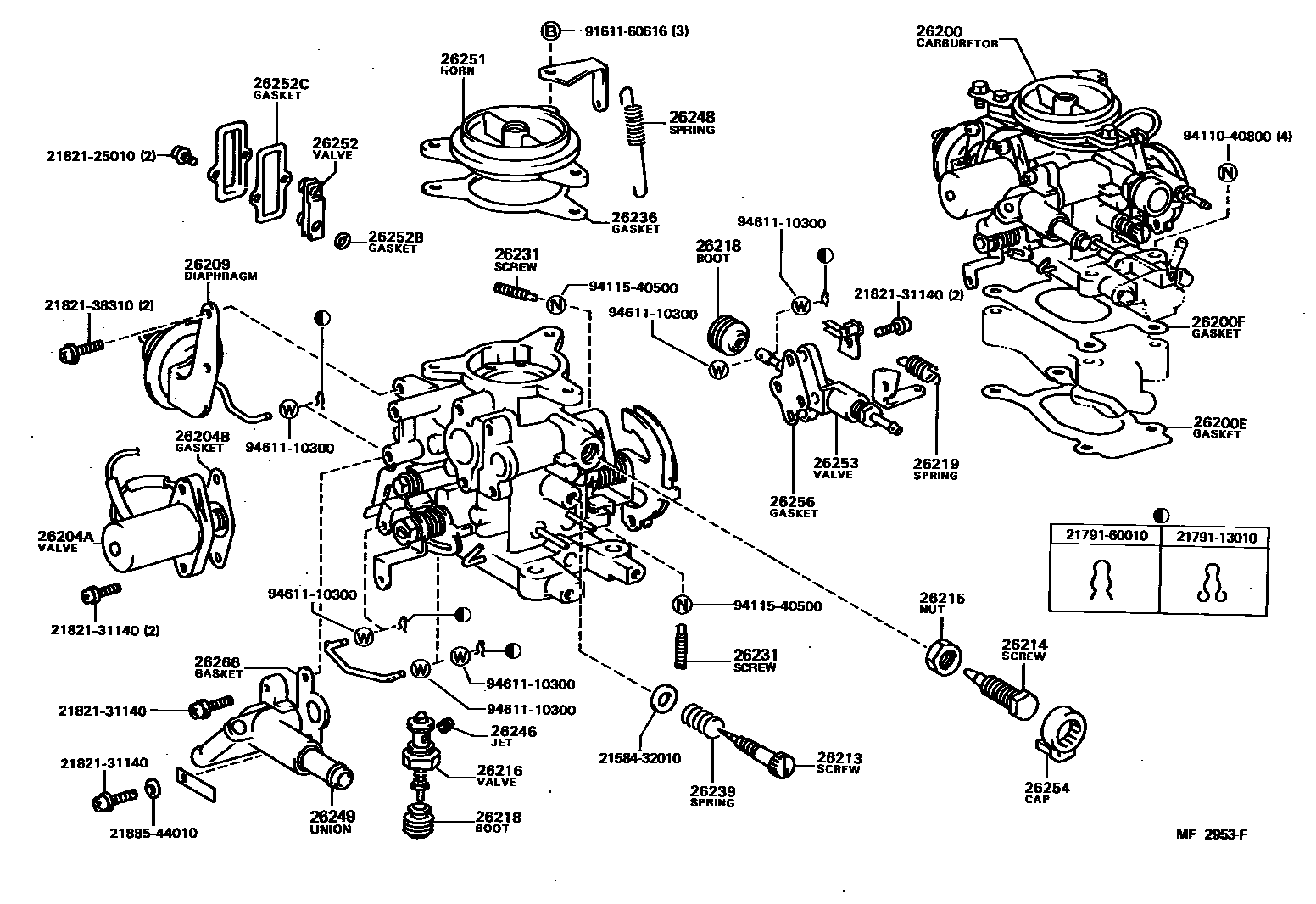

LPG CARBURETOR
26200CARBURETOR ASSY, LPG
26200EGASKET, CARBURETOR, NO.1
sub21911-72011
26200FGASKET, CARBURETOR, NO.2
sub21916-72011
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
26204BGASKET, SOLENOID VALVE(FOR LPG)
26209DIAPHRAGM SUB-ASSY(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26239SPRING
26248SPRING(FOR POWER VALVE CAM)
26249UNION, FUEL HOSE(FOR LPG)
NO.1
NO.2
26251HORN, AIR
26252VALVE, THERMOSTATIC
26252BGASKET, NO.1(FOR THERMOSTATIC VALVE)
26252CGASKET, NO.2(FOR THERMOSTATIC VALVE)
26253VALVE, CHANGE(FOR SLOW)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2158432010SHIM, CHOKE ROD BELLCRANK SHAFT
main21584-32010
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188544010
main21885-44010
9161160616
main91611-60616
9411040800
main94110-40800
9411540500
main94115-40500
9461110300
main94611-10300
37 parts on this diagram · 2 diagrams in section
