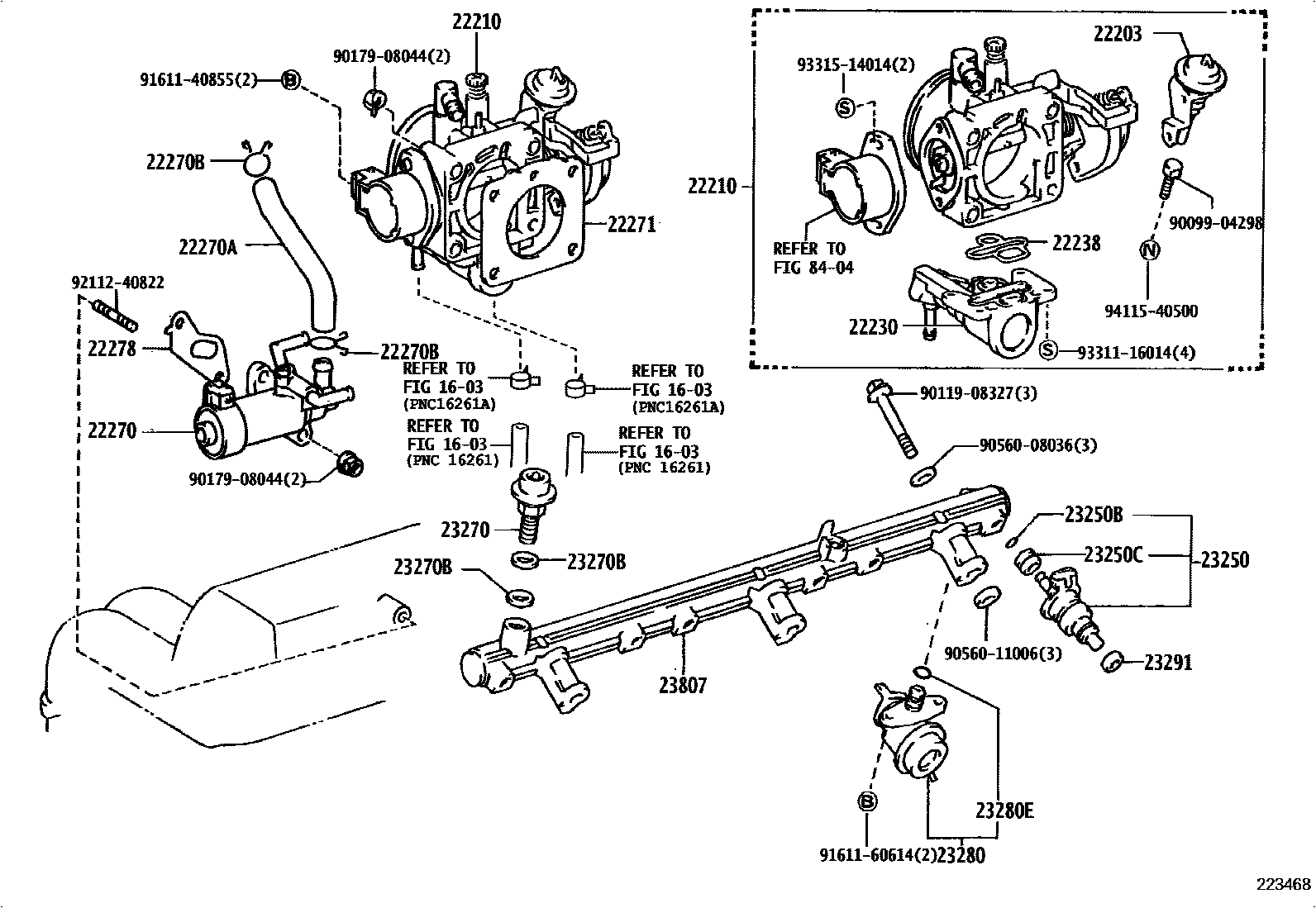

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

1603

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-70020i1GGEU..GX71198408-198608

main22203-70030i1GEU..GX71198408-198808

main22203-70040i1GGTEU..GX71198510-198808

main22203-70050i1GGEU..GX71198608-198808

22210BODY ASSY, THROTTLE

main22210-41230iMTEU..MX71198408-198510

main22210-70080i1GEU..GX71198408-198808

main22210-70110i1GGEU..GX71..5F198408-198608

main22210-70120i1GGTEU..GX71..4FC198510-198602

main22210-70130i1GGEU..GX71..4FC198408-198608

main22210-70140i1GGTEU..GX71..5F198510-198602

main22210-70170i1GGEU..GX71..5F198608-198808

main22210-70180i1GGEU..GX71..4FC198608-198808

main22210-70190i1GGTEU..GX71..5F198602-198808

main22210-70200i1GGTEU..GX71..4FC198602-198808

22230VALVE ASSY, AUXILIARY AIR

main22230-41060iMTEU..MX71198408-198510

main22230-70040i1GEU..GX71198408-198808

22238GASKET, AUXILIARY AIR VALVE

main22238-70010i1GEU..GX71198408-198808

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-41010iMTEU..MX71198408-198510

main22270-70030i1GGEU..GX71198408-198608

main22270-70040i1GEU..GX71198408-198808

main22270-70070i1GGTEU..GX71198510-198808

main22270-70090i1GGEU..GX71198608-198808

22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

main17343-70020i1GEU..GX71198408-198808

main17344-88300i1GGEU..GX71198408-198608

main17344-88301i1GGEU..GX71198608-198808

main22233-88340i1GGTEU..GX71198510-198808

22270BCLIP(FOR AIR HOSE)

main90467-20002i1GEU..GX71198408-198808

main90467-21001i1GGTEU..GX71198510-198808

sub90467-21006

22271GASKET, THROTTLE BODY

main22271-41030iMTEU..MX71198408-198510

main22271-70010i1GEU..GX71198408-198808

main22271-88301i1GGEU..GX71198408-198808

main22271-88340i1GGTEU..GX71198510-198808

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-41010iMTEU..MX71198408-198510

main22278-70010i1GEU..GX71198408-198808

main22278-88300i1GGEU..GX71198408-198412

main22278-88301i1GGEU..GX71198412-198608

main22278-88340i1GGEU..GX71198510-198808

23250INJECTOR ASSY, FUEL

main23209-45011iMTEU..MX71198408-198510

sub23209-43010

main23209-70010i1GEU..GX71198408-198808

sub23209-13010

main23209-70020i1GGEU..GX71198408-198608

main23209-70040i1GGTEU..GX71198510-198808

main23209-70050i1GGEU..GX71198608-198808

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001iMTEU..MX71198408-198808

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005iMTEU..MX71198408-198808

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28030i1GGTEU..GX71198510-198808

sub23207-46010

main23270-52011i1GGEU..GX71198408-198808

sub23207-16020

main23270-70010iMTEU..MX71198408-198808

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1GG#..GX71198408-198808

DAMPER SIDE

sub23232-41081

main90430-12005i1GG#..GX71198408-198808

DELIVERY PIPE SIDE

main90430-14002i1GEU..GX71198408-198808

ID=14.2

main90430-17002i1GEU..GX71198408-198808

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030iMTEU..MX71198408-198510

main23280-70020i1GEU..GX71198408-198808

main23280-70030i1GGEU..GX71198408-198808

main23280-70040i1GGTEU..GX71198510-198808

sub23280-70090

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GEU..GX71198408-198808

23291INSULATOR, INJECTOR VIBRATION

main23291-41010iMTEU..MX71198408-198808

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45020iMTEU..MX71198408-198510

main23807-70020i1GEU..GX71198408-198808

main23807-88300i1GG#..GX71198408-198808

main23807-88301i1GGEU..GX71198701-198808

8404

9009904298

main90099-04298

9011908327

main90119-08327

9017908044

main90179-08044

9056008036

main90560-08036

9056011006

main90560-11006

9161140855

main91611-40855

9161160614

main91611-60614

9211240822

main92112-40822

9331116014

main93311-16014

9331514014

main93315-14014

9411540500

main94115-40500

31 parts on this diagram · 11 diagrams in section
