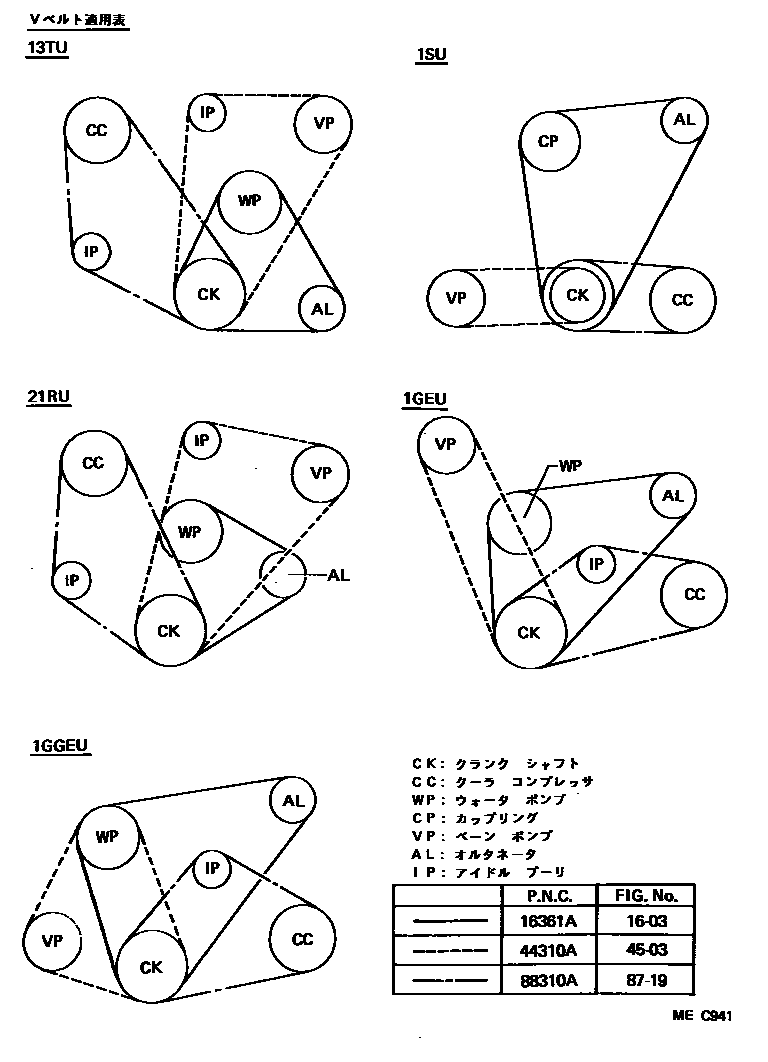

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076iMTEU..MX61198110-198308

DOUBLE V BELTS,L=925

main90916-02119i2LTE..LX65198208-198211

DOUBLE V BELTS

sub90916-02282

main90916-02132i2LTE..LX65198211-198407

DOUBLE V BELTS

sub90916-02281

main90916-02133iL..LX60198211-198407

L=990

main99321-00850i18RGEU..RX63198009-198208

L=850

main99321-00885i13TU..TX60198009-198208

main99331-00880i21RU..RX60198009-198208

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GEU..GX6#198009-198308

main99363-01150i1SU..SX60198208-198407

sub99363-31150

main99364-01100i1GEU..GX61198308-198407

sub99364-81100

main99364-50830i2YPU..SX60198302-198407

*30

sub99364-80830

main99364-51160i1GGEU..GX61198208-198407

sub99364-81160

main99367-00920iMTEU..MX61198308-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02080iLX60..XL198009-198407

main90916-02092iGX6#..EFI198009-198407

main90916-02107iMX61198110-198407

main99332-01055iSX60..LPG198302-198407

main99332-01080iTX60..XL198009-198208

main99332-51135iRX60198009-198208

main99363-00770iSX60..STD,XG,XL198208-198407

main99363-00960iGX61..TWC198208-198407

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00880iSX60..LPG198302-198407

*30

sub99332-00880

main99322-00880iGX6#..SGT,SXL198009-198109

sub99332-00880

main99322-00890iRX60198009-198208

main99322-00900iMX61..SGT198110-198208

sub99332-10900

main99322-00910iGX61..EFI198208-198308

sub99332-00910

main99322-00920iGX6#198109-198208

main99322-01240iRX63198009-198208

main99322-11250iLX65198208-198407

sub99322-51250

main99322-11270iLX60198009-198407

sub99322-51270

main99322-50950iTX60198009-198407

main99332-00910iMX61..AVT198110-198208

main99364-00850iGX61..EFI198308-198407

sub99364-20850

main99364-00860iGX61..TWC198208-198407

sub90916-02354

main99364-50810iSX60..CBR198208-198407

sub99364-80810

6 parts on this diagram · 8 diagrams in section
