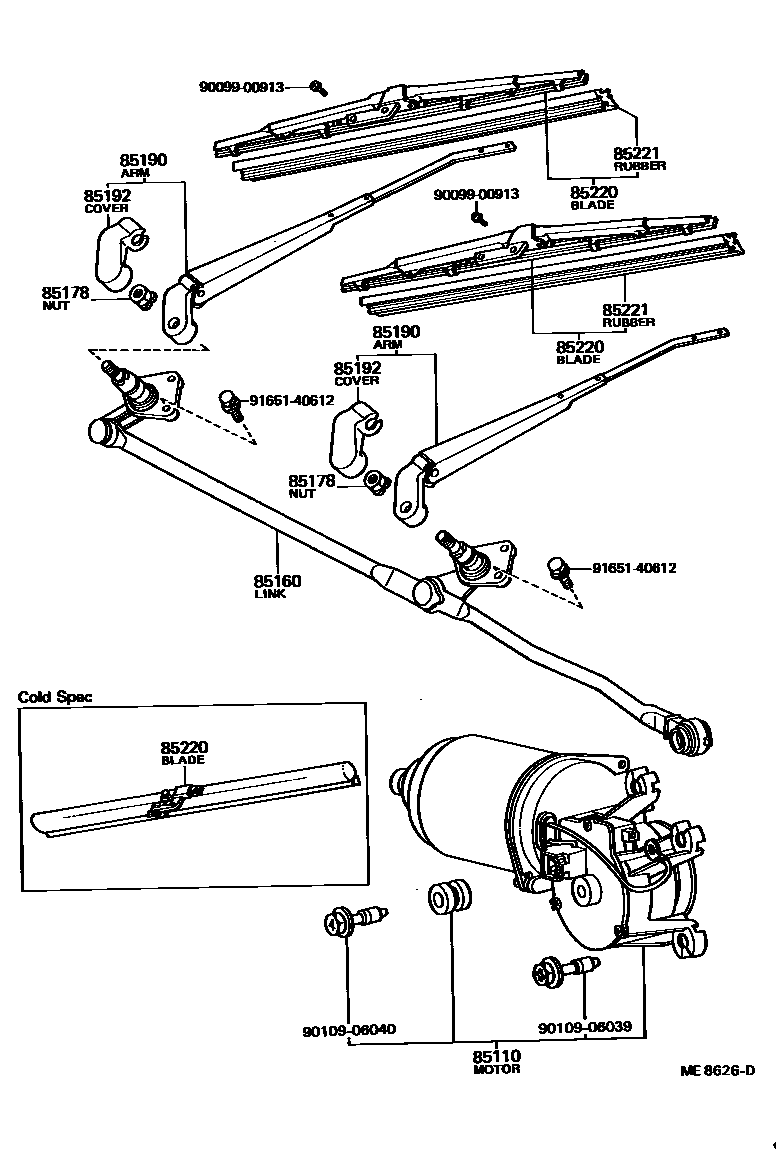

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22191iGX6#,LX60,MX61,RX6#,TX60198009-198208

sub85110-22160

main85110-22200iLX60,SX60..DLX,STD,XL198208-198407

main85110-22210iGX61,LX65,MX61,SX60..AVT,SGT,SXL,XG198208-198407

FULL CONCEALED WIPER

85160LINK ASSY, WINDSHIELD WIPER

main85160-22100iGX6#,LX60,MX61,RX6#,TX60198009-198208

main85160-22150iGX61,LX6#,MX61,SX60198208-198407

sub85160-22190

main85160-22190iLX60..DLX;SX60..STD..CBR198208-198407

*30

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016iGX6#,LX60,MX61,RX6#,TX60198009-198208

main90176-08029iGX61,LX6#,MX61,SX60198208-198407

85190ARM ASSY, WINDSHIELD WIPER

main85190-22250iGX6#,MX61,RX6#,TX60..HT198009-198208

RH

sub85190-22310

main85190-22310iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

RH

sub85210-20040

main85190-22400iLX60,SX60..SED..(DLX,STD,XL)198208-198407

RH

main85190-22410iSX60..HT..XL198208-198407

RH

sub85190-22400

main85190-22420iGX61,LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG)198208-198407

RH,FULL CONCEALED WIPER

sub85190-22430

main85190-22430iGX61,MX61,SX60..HT..(AVT,SGT,SXL,XG)198208-198407

RH,FULL CONCEALED WIPER

main85210-22010iGX6#,MX61,RX6#,TX60..HT198009-198208

LH

sub85210-22070

main85210-22070iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

LH

main85210-22130iLX60,SX60..DLX,STD,XL198208-198407

LH

main85210-22140iGX61,LX65,MX61,SX60..AVT,SGT,SXL,XG198208-198407

LH,FULL CONCEALED WIPER

85192COVER, WINDSHIELD WIPER ARM

main85192-12030iGX6#,LX60,RX6#,TX60198009-198208

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16120iGX61,LX6#,MX61,SX60198208-198306

RH

sub85220-16180

main85220-16130iLX60,SX60..DLX,STD,XL198208-198306

LH

sub85220-16321

main85220-16180iGX61,LX6#,MX61,SX60198306-198307

RH

main85220-16190iLX60,SX60..DLX,STD,XL198306-198307

LH

sub85220-16320

main85220-16300iGX61,LX65,MX61,SX60..AVT,SGT,SXL,XG198306-198307

LH,FULL CONCEALED WIPER

sub85220-16330

main85220-16320iLX60,SX60..DLX,STD,XL198307-198407

LH

sub85220-16321

main85220-16330iGX61,LX65,MX61,SX60..AVT,SGT,SXL,XG198307-198407

LH,FULL CONCEALED WIPER

sub85222-24050

main85220-16350iGX61,LX6#,MX61,SX60198307-198407

RH

main85220-22200iGX6#,LX60,MX61,RX6#,TX60198009-198208

RH

sub85220-14280

main85220-22210iGX6#,LX60,MX61,RX6#,TX60198009-198208

LH

sub85220-14280

main85220-22250iGX61,LX65,MX61,SX60..AVT,SGT,SXL,XG198208-198306

LH,FULL CONCEALED WIPER

sub85220-16300

main85220-24040iGX61,LX6#,MX61,SX60198208-198407

COLD SPEC

sub85291-24010

main85220-30110iGX6#,LX60,MX61,RX6#,TX60198009-198208

COLD SPEC

sub85220-20080

85221BLADE, WINDSHIELD WIPER

main85221-12190iGX61,LX6#,MX61,SX60198208-198306

sub85223-12690

main85221-22040iGX6#,LX60,MX61,RX6#,TX60198009-198208

sub85221-14170

main85221-30100iGX61,LX6#,MX61,SX60198306-198307

main85221-30120iGX61,LX6#,MX61,SX60198307-198407

sub85221-40040

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9165140612

main91651-40612

11 parts on this diagram · 2 diagrams in section
