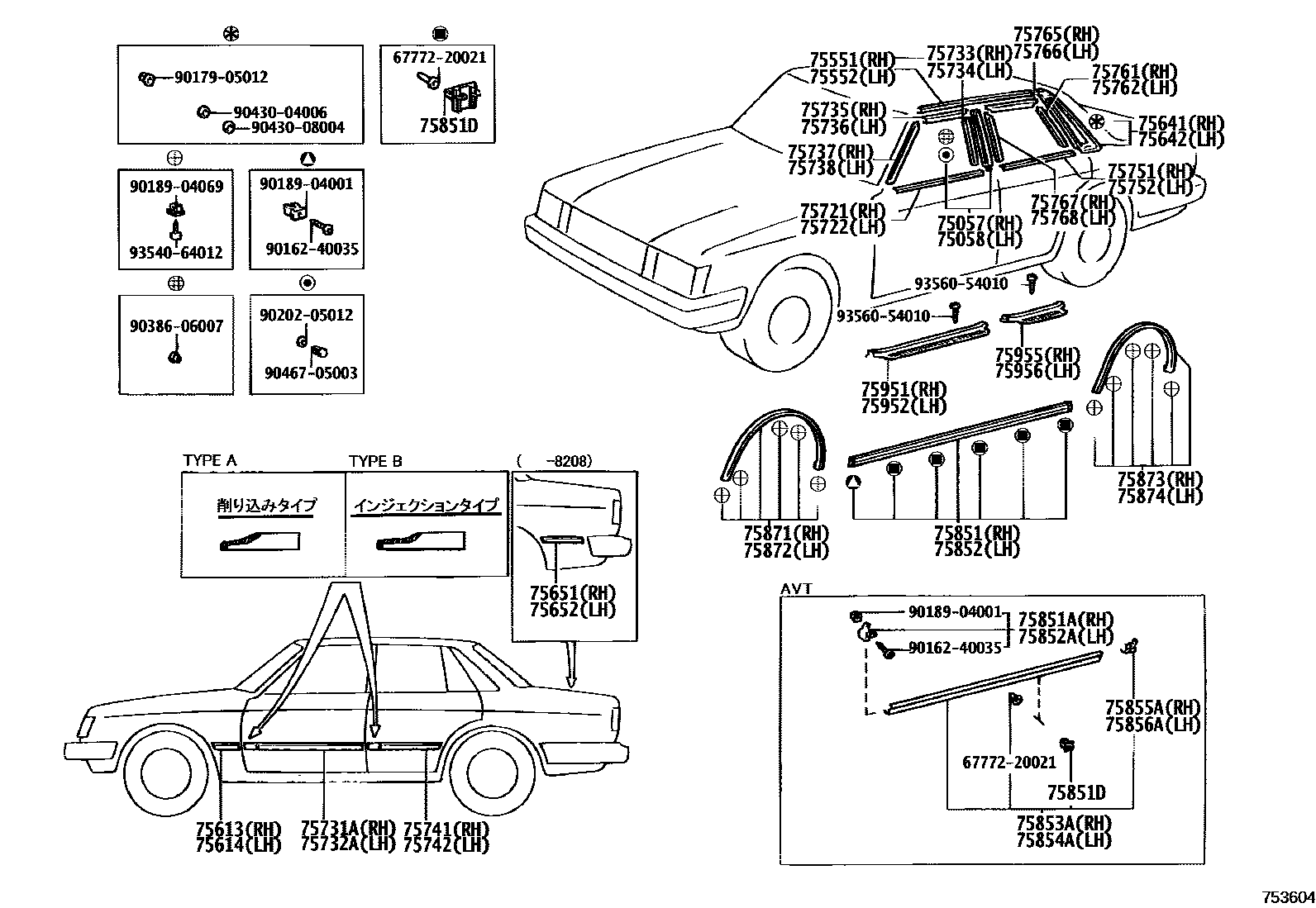

SIDE MOULDING

0001 1 0002 1

75057GARNISH SUB-ASSY, CENTER PILLAR, OUTER RH

main75057-22020iGX61,MX61..SED..AVT198105-198407

75058GARNISH SUB-ASSY, CENTER PILLAR, OUTER LH

main75058-22020iGX61,MX61..SED..AVT198105-198407

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-22070iGX6#,LX60,RX6#,TX60..SED198009-198110

main75551-22071iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198110-198301

main75551-22072iGX61,LX6#,MX61,SX60..SED198301-198407

main75551-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-22070iGX6#,LX60,RX6#,TX60..SED198009-198110

main75552-22071iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198110-198301

main75552-22072iGX61,LX6#,MX61,SX60..SED198301-198407

main75552-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-22010iGX6#,LX60,RX6#,TX60198009-198105

main75611-22020iGX6#,LX60,MX61,RX60,TX60..SGT,SXL,XG,XL198105-198208

main75611-22030iGX61..AVT198105-198108

BLACK

main75611-22030-01iRX60..HT..XG198201-198208

XG EXTRA,BLACK

main75611-22030-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75611-22030-14iGX61,MX61..HT..AVT198108-198208

BLUE,BLUE

main75611-22090iGX61,LX65,MX61198208-198407

main75611-22100-01iLX60,SX60..DLX,XG,XL198208-198407

BLACK,BLACK

main75611-95800iGX61..HT..AVT198009-198105

BLUE

main75611-95801-04iGX61..HT..AVT198105-198108

BLUE,BLUE

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-22010iGX6#,LX60,RX6#,TX60198009-198105

main75612-22020iGX6#,LX60,MX61,RX60,TX60..SGT,SXL,XG,XL198105-198208

main75612-22030iGX61..AVT198105-198108

BLACK

main75612-22030-01iRX60..HT..XG198201-198208

XG EXTRA,BLACK

main75612-22030-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75612-22030-14iGX61,MX61..HT..AVT198108-198208

BLUE,BLUE

main75612-22090iGX61,LX65,MX61198208-198407

main75612-22100-01iLX60,SX60..DLX,XG,XL198208-198407

BLACK,BLACK

main75612-95800iGX61..HT..AVT198009-198105

BLUE

main75612-95801-04iGX61..HT..AVT198105-198108

BLUE,BLUE

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main68153-29015iGX6#,LX60,RX6#,TX60..SED198009-198105

main68153-29016iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL)198108-198407

main68153-29025iGX61..SED..AVT198105-198108

main68153-29026iGX61,MX61..SED..AVT198108-198407

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main68154-29015iGX6#,LX60,RX6#,TX60..SED198009-198105

main68154-29016iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL)198108-198407

main68154-29025iGX61..SED..AVT198105-198108

main68154-29026iGX61,MX61..SED..AVT198108-198407

75651MOULDING, QUARTER, OUTSIDE RH

main75651-22040iLX60,RX63,TX60..SED..(DLX,GT)198105-198208

main75651-22060iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

main75651-22070iGX61..SED..AVT198105-198108

main75651-22070-01iGX61,MX61..SED..AVT198108-198208

BLACK,BLACK

main75651-95800iGX6#,RX6#,TX60..HT198009-198105

main75651-95801iGX61..HT..AVT198105-198108

BLACK

main75651-95801-01iGX61,MX61..HT..AVT198108-198208

BLACK,BLACK

main75651-95801-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75651-95801-14iGX61,MX61..HT..AVT198108-198208

BLUE,BLUE

main75651-95802iGX61..HT..AVT198009-198105

BLUE

main75651-95803-04iGX61..HT..AVT198105-198108

BLUE,BLUE

main75651-95804iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

75652MOULDING, QUARTER, OUTSIDE LH

main75652-22040iLX60,RX63,TX60..SED..(DLX,GT)198105-198208

main75652-22060iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

main75652-22070iGX61..SED..AVT198105-198108

main75652-22070-01iGX61,MX61..SED..AVT198108-198208

BLACK,BLACK

main75652-95800iGX6#,RX6#,TX60..HT198009-198105

main75652-95801iGX61..HT..AVT198105-198108

BLACK

main75652-95801-01iGX61,MX61..HT..AVT198108-198208

BLACK,BLACK

main75652-95801-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75652-95801-14iGX61,MX61..HT..AVT198108-198208

BLUE,BLUE

main75652-95802iGX61..HT..AVT198009-198105

BLUE

main75652-95803-04iGX61..HT..AVT198105-198108

BLUE,BLUE

main75652-95804iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

75721MOULDING, FRONT DOOR BELT, RH

main75710-22030iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

main75710-22031iGX61,LX6#,MX61,SX60..SED198208-198407

main75710-22041iGX61,LX6#,MX61,SX60..SED..(AVT,SGT,SXL,XG,XL)198401-198407

W/DOOR MIRROR

main75710-29035iGX6#,MX61,RX6#,SX60,TX60..HT198009-198403

main75710-29036iGX61,MX61,SX60..HT198403-198407

main75710-29095iGX61,MX61,SX60..HT198401-198403

W/DOOR MIRROR

main75710-29096iGX61,MX61,SX60..HT198403-198407

W/DOOR MIRROR

75722MOULDING, FRONT DOOR BELT, LH

main75720-22030iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

main75720-22031iGX61,LX6#,MX61,SX60..SED198208-198407

main75720-22041iGX61,LX6#,MX61,SX60..SED..(AVT,SGT,SXL,XG,XL)198401-198407

W/DOOR MIRROR

main75720-29035iGX6#,MX61,RX6#,SX60,TX60..HT198009-198403

main75720-29036iGX61,MX61,SX60..HT198403-198407

main75720-29085iGX61,MX61,SX60..HT198401-198403

W/DOOR MIRROR

main75720-29086iGX61,MX61,SX60..HT198403-198407

W/DOOR MIRROR

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-22060iRX63..HT198105-198208

RH

main75731-22080iGX6#,LX60,RX6#,TX60..SED198009-198105

RH

main75731-22090iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

RH

main75731-22100-01iGX61..SED..AVT198105-198108

BLACK,BLACK

main75731-22101-01iGX61..SED..AVT198105-198108

TYPE B,RH,BLACK,BLACK

main75731-22110iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

RH

main75731-22200iGX61,LX65,MX61..SED198208-198407

RH

main75731-22210-01iLX60,SX60..SED..(DLX,XG,XL)198208-198407

RH,BLACK,BLACK

main75731-22220iGX61,MX61..HT198208-198407

RH

main75731-22230iSX60..HT198208-198407

RH

main75731-95803-01iGX61..HT..AVT198105-198108

TYPE A,RH,BLACK,BLACK

main75731-95803-04iGX61..HT..AVT198105-198108

TYPE A,RH,BLUE,BLUE

main75731-95804iGX61..HT..AVT198009-198105

RH,BLUE

main75731-95807-01iRX60..HT..XG198109-198111

RH,XG EXTRA,BLACK

main75731-95807-06iGX61,MX61..HT..AVT198108-198208

RH,BROWN,BROWN

main75731-95807-14iGX61,MX61..HT..AVT198108-198208

RH,BLUE,BLUE

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-22060iRX63..HT198105-198208

LH

main75732-22080iLX60,RX63,TX60..SED..(DLX,GT)198105-198208

LH

main75732-22090iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

LH

main75732-22100-01iGX61..SED..AVT198105-198108

BLACK,BLACK

main75732-22101-01iGX61..SED..AVT198105-198108

TYPE B,LH,BLACK,BLACK

main75732-22110iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

LH

main75732-22200iGX61,LX65,MX61..SED198208-198407

LH

main75732-22210-01iLX60,SX60..SED..(DLX,XG,XL)198208-198407

LH,BLACK,BLACK

main75732-22220iGX61,MX61..HT198208-198407

LH

main75732-22230iSX60..HT198208-198407

LH

main75732-95803-01iGX61..HT..AVT198105-198108

TYPE A,LH,BLACK,BLACK

main75732-95803-04iGX61..HT..AVT198105-198108

TYPE A,LH,BLUE,BLUE

main75732-95804iGX61..HT..AVT198009-198105

LH,BLUE

main75732-95807-01iGX61..HT..AVT198105-198108

TYPE B,LH,BLACK,BLACK

main75732-95807-06iGX61,MX61..HT..AVT198108-198208

LH,BROWN,BROWN

main75732-95807-14iGX61..HT..AVT198105-198108

TYPE B,LH,BLUE,BLUE

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-22030iGX6#..SED198009-198108

main75755-22050iGX61,MX61..SED..AVT198108-198407

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-22030iGX6#,LX65,MX61..SED..(SGT,SXL)198108-198407

main75756-22050iGX61,MX61..SED..AVT198108-198407

75735MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-22030iGX6#..SED198009-198105

main75753-22050iGX61,MX61..SED..AVT198105-198407

75736MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-22010iGX6#..SED198009-198105

main75754-22030iGX61,MX61..SED..AVT198105-198407

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-22050iGX6#..SED198009-198105

main75751-22070iMX61..SED..AVT198105-198407

main75751-22090iGX61,MX61..SED..AVT198401-198407

W/DOOR MIRROR

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-22050iGX6#..SED198009-198105

main75752-22070iGX61,MX61..SED..AVT198105-198407

main75752-22090iGX61,MX61..SED..AVT198401-198407

W/DOOR MIRROR

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-22040iGX6#,RX6#,TX60..HT198009-198105

main75741-22060iGX6#,LX60,RX6#,TX60..SED198009-198105

main75741-22070iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

main75741-22080iGX61..SED..AVT198105-198108

TYPE A,BLACK

main75741-22081-01iGX61..SED..AVT198105-198108

TYPE B,BLACK,BLACK

main75741-22090iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

main75741-22180iGX61,LX65..SED..(EFI,TDE)198208-198407

main75741-22190-01iLX60,SX60..SED..(DLX,XG,XL)198208-198407

BLACK,BLACK

main75741-22200iGX61..HT..EFI198208-198407

main75741-22210iSX60..HT198208-198407

main75741-22260iMX61..HT198208-198407

main75741-22270iGX61..HT..TWC198208-198407

main75741-22280iMX61..SED198208-198407

main75741-22290iGX61..SED..TWC198208-198407

main75741-95800-01iGX61..HT..AVT198105-198108

TYPE A,BLACK,BLACK

main75741-95800-04iGX61..HT..AVT198105-198108

TYPE A,BLUE,BLUE

main75741-95801iGX61..HT..AVT198009-198105

BLUE

main75741-95804-01iGX61..HT..AVT198105-198108

TYPE B,BLACK,BLACK

main75741-95804-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75741-95804-14iGX61,MX61..HT..AVT198108-198208

BLUE,BLUE

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-22030iGX6#,RX6#,TX60..HT198009-198105

main75742-22050iLX60,RX63,TX60..SED..(DLX,GT)198105-198208

main75742-22060iGX6#,LX60,MX61,RX60,TX60..SED..(SGT,SXL,XG,XL)198105-198208

main75742-22070iGX61..SED..AVT198105-198108

TYPE A,BLACK

main75742-22071-01iGX61..SED..AVT198105-198108

TYPE B,BLACK,BLACK

main75742-22080iGX6#,MX61,RX60,TX60..HT..(SGT,SXL,XG,XL)198105-198208

main75742-22170iGX61,LX65..SED..(EFI,TDE)198208-198407

main75742-22180-01iLX60,SX60..SED..(DLX,XG,XL)198208-198407

BLACK,BLACK

main75742-22190iGX61..HT..EFI198208-198407

main75742-22200iSX60..HT198208-198407

main75742-22250iMX61..HT198208-198407

main75742-22260iGX61..HT..TWC198208-198407

main75742-22270iMX61..SED198208-198407

main75742-22280iGX61..SED..TWC198208-198407

main75742-95800-01iGX61..HT..AVT198105-198108

TYPE A,BLACK,BLACK

main75742-95800-04iGX61..HT..AVT198105-198108

TYPE A,BLUE,BLUE

main75742-95801iGX61..HT..AVT198009-198105

BLUE

main75742-95804-01iRX60..HT..XG198201-198208

XG EXTRA,BLACK

main75742-95804-06iGX61,MX61..HT..AVT198108-198208

BROWN,BROWN

main75742-95804-14iGX61..HT..AVT198105-198108

TYPE B,BLUE,BLUE

75751MOULDING, REAR DOOR BELT, RH

main75730-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

sub75730-22051

main75730-29035iGX6#,MX61,RX6#,SX60,TX60..HT198009-198403

main75730-29036iGX61,MX61,SX60..HT198403-198407

75752MOULDING, REAR DOOR BELT, LH

main75740-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

sub75740-22031

main75740-29035iGX6#,MX61,RX6#,SX60,TX60..HT198009-198403

main75740-29036iGX61,MX61,SX60..HT198403-198407

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-22040iGX6#..SED198009-198105

main75765-22060iGX61,MX61..SED..AVT198105-198407

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-22050iGX6#,LX65,MX61..SED..(SGT,SXL)198105-198407

main75766-22070iGX61,MX61..SED..AVT198105-198407

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-22030iGX6#..SED198009-198105

main75763-22050iGX61,MX61..SED..AVT198105-198407

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-22030iGX6#..SED198009-198105

main75764-22050iGX61,MX61..SED..AVT198105-198407

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-22060iGX6#..SED198009-198105

main75761-22080iGX61,MX61..SED..AVT198105-198407

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-22060iGX6#..SED198009-198105

main75762-22080iGX61,MX61..SED..AVT198105-198407

75851MOULDING, ROCKER PANEL, RH

main75850-29085iGX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL198009-198407

75851AMOULDING, ROCKER PANEL, FRONT RH

main75851-29035iGX61,MX61..AVT198009-198407

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-22030×10iGX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL198009-198407

main75867-22040×10iGX61,MX61..AVT198009-198407

75852MOULDING, ROCKER PANEL, LH

main75860-29085iGX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL198009-198407

75852AMOULDING, ROCKER PANEL, FRONT LH

main75852-29025iGX61,MX61..AVT198009-198407

75853AMOULDING, ROCKER PANEL, CENTER RH

main75853-29016iGX61,MX61..AVT198009-198407

75854AMOULDING, ROCKER PANEL, CENTER LH

main75854-29016iGX61,MX61..AVT198009-198407

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-22010iGX61,MX61..AVT198009-198407

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-22010iGX61,MX61..AVT198009-198407

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-29055iGX6#,LX65,MX61198009-198407

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-29055iGX6#,LX65,MX61198009-198407

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-29065iGX6#,LX65,MX61198009-198407

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-29065iGX6#,LX65,MX61198009-198407

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-22050-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main67913-22050-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67913-22050-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main67913-22050-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main67913-22050-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-22050-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main67913-22050-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67913-22050-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main67913-22050-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main67913-22050-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-22050-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main67917-22050-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67917-22050-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main67917-22050-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main67917-22050-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-22050-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main67918-22050-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67918-22050-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main67918-22050-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main67918-22050-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016240035

main90162-40035

9017905012

main90179-05012

9018904001

main90189-04001

9018904069

main90189-04069

9020205012

main90202-05012

9038606007

main90386-06007

9043004006

main90430-04006

9043008004

main90430-08004

9046705003

main90467-05003

9354064012

main93540-64012

9356054010

main93560-54010

59 parts on this diagram · 2 diagrams in section
