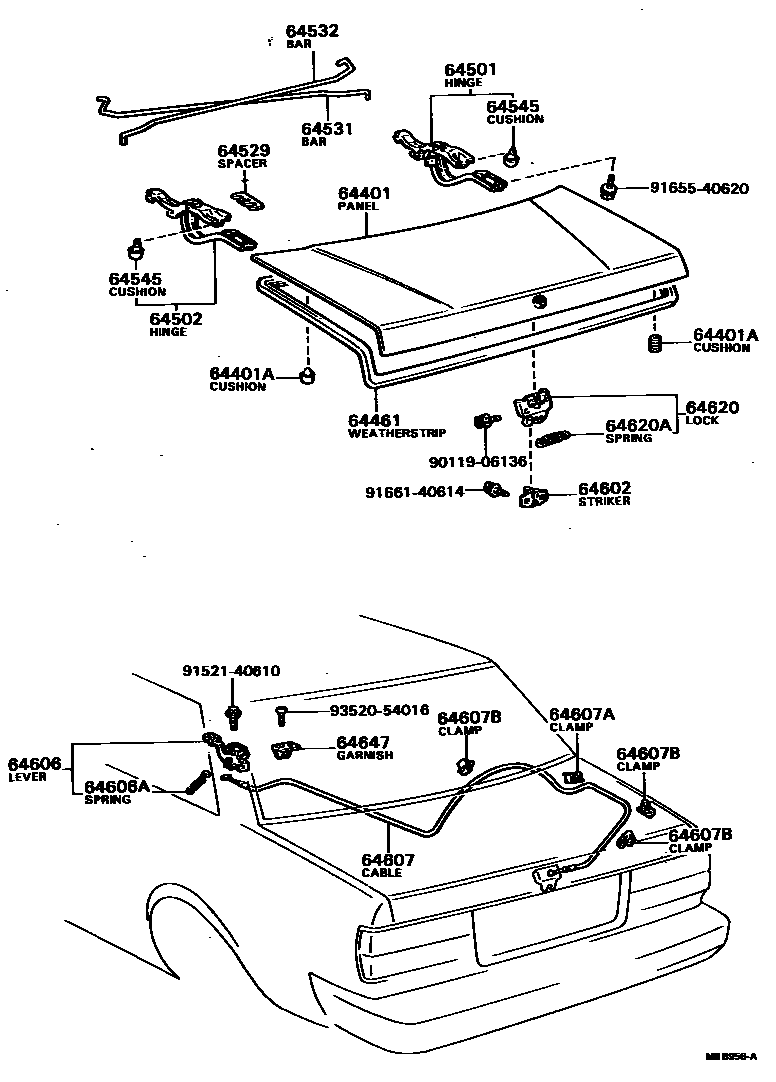

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22150iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64401-22901iGX61,SX60..HT..(SXL,XG,XL)198208-198407

main64401-95814iGX61,MX61..HT..AVT198208-198310

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09017×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198012-198407

H=8,FR

main90541-09151×2iGX6#,LX60,RX6#,TX60198009-198012

H=8,FR

main90541-15111×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

H=26,RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22100iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64461-22110iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

COLD SPEC

main64461-95804iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22070iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64510-22080iSX60..LPG198302-198407

*30

main64510-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-22060iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64520-22070iSX60..LPG198302-198407

*30

main64520-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22070iSX60..LPG198302-198407

*30

main64531-22080iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198403

main64531-22190iGX61,LX6#,MX61,SX60..SED198403-198407

main64531-95803iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22070iSX60..LPG198302-198407

*30

main64532-22080iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198403

main64532-22190iGX61,LX6#,MX61,SX60..SED198403-198407

main64532-95803iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main90541-09013×2iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64620-95800iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22040-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main64606-22040-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64606-22040-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main64606-22040-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main64606-22040-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

sub64607-91D01

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iSX60..STD;LX60,TX60..DLX198109-198407

*30

main64610-20030iGX61,LX6#,MX61,SX60..SED198208-198407

main64610-95803iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09001iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

64647GARNISH, LUGGAGE LOCK CONTROL LEVER

main64647-22020-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main64647-22020-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main64647-22020-06iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

9011906136

main90119-06136

9152140610

main91521-40610

9165540620

main91655-40620

9166140614

main91661-40614

9352054016

main93520-54016

23 parts on this diagram · 1 diagram in section
