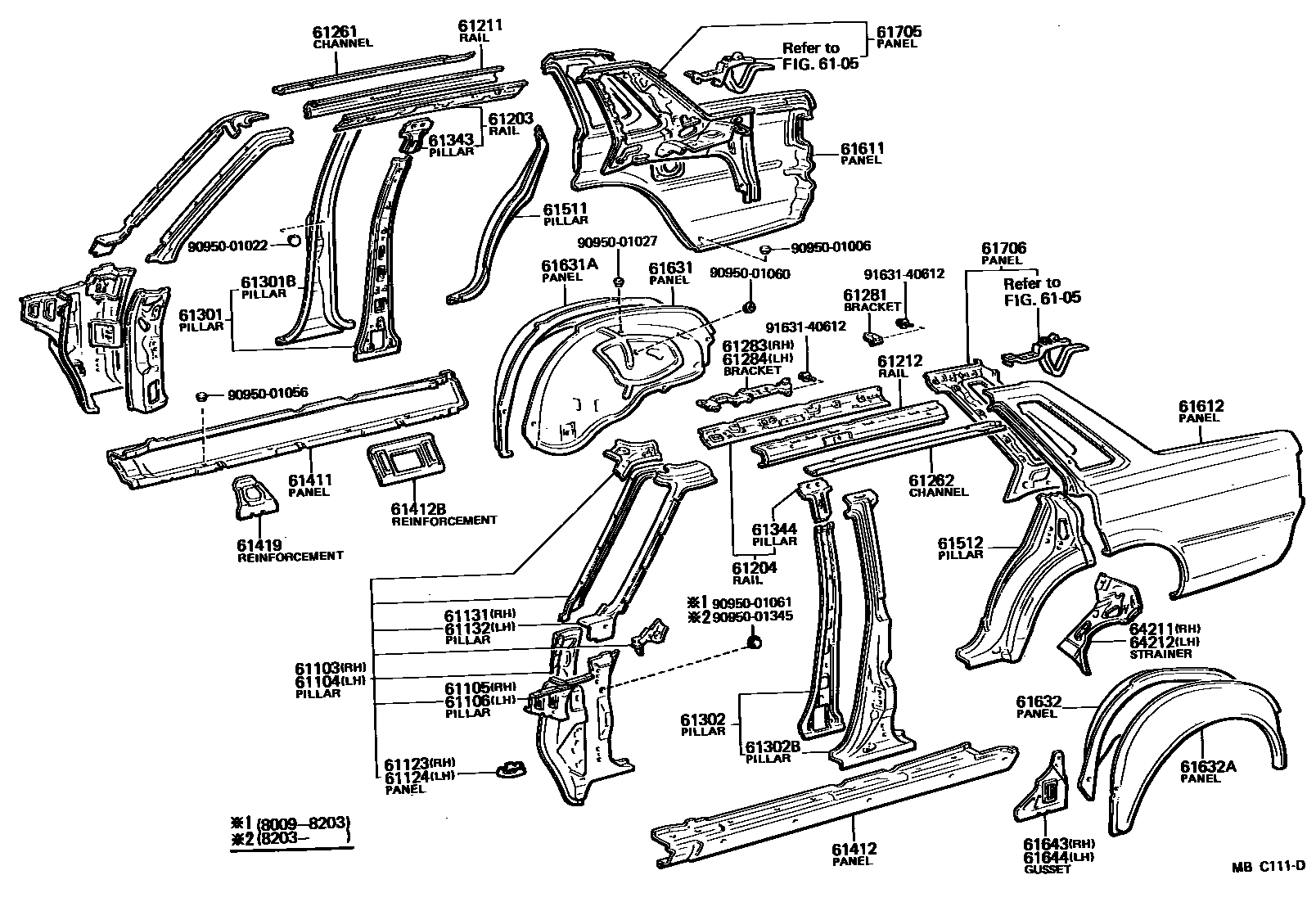

SIDE MEMBER

0001 1 0002 1

6105

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-22020iGX6#,LX60,MX61,RX6#,TX60..SED198009-198203

sub61021-22021

sub90950-01345

main61021-22021iGX6#,LX60,MX61,RX6#,TX60..SED198203-198407

sub61021-22031

main61021-22070iGX61,MX61..SED..AVT198208-198407

main61021-22901iGX6#,MX61,RX6#,TX60..HT198009-198203

sub61021-22902

sub90950-01345

main61021-22902iGX6#,MX61,RX6#,TX60..HT198203-198208

sub61021-22903

sub91611-61016

main61021-22903iGX61,MX61,SX60..HT..(SGT,SXL,XG,XL)198208-198407

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-22020iGX6#,LX60,MX61,RX6#,TX60..SED198009-198203

sub61022-22021

sub90950-01345

main61022-22021iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198203-198407

sub61022-22031

main61022-22902iGX6#,MX61,RX6#,TX60..HT198009-198203

sub61022-22903

sub90950-01345

main61022-22903iGX6#,MX61,RX6#,SX60,TX60..HT198203-198407

sub61022-22011

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-22901iGX6#,MX61,RX6#,TX60..HT198009-198203

sub61025-22905

sub90950-01345

main61025-22902iGX6#,LX60,MX61,RX6#,TX60..SED198009-198203

sub61025-22906

sub90950-01345

main61025-22905iGX61,MX61,SX60..HT..(SGT,SXL,XG,XL)198203-198407

sub61025-22909

sub91611-61016

main61025-22906iGX61,LX6#,MX61,SX60..SED..(DLX,SGT,STD,SXL,XG,XL)198203-198407

sub61025-22907

main61025-22909iGX61,MX61..HT..AVT198208-198407

main61025-22911iGX61,MX61..SED..AVT198208-198407

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-22901iGX6#,MX61,RX6#,TX60..HT198009-198203

sub61026-22906

sub90950-01345

main61026-22902iGX6#,LX60,MX61,RX6#,TX60..SED198009-198203

sub61026-22907

sub90950-01345

main61026-22906iGX6#,MX61,RX6#,SX60,TX60..HT198203-198407

main61026-22907iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198203-198407

sub61026-22908

61123PANEL, COWL SIDE LOWER, RH

main61123-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61124PANEL, COWL SIDE LOWER, LH

main61124-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22080iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61131-22090iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22080iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61132-22090iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-22090iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main61203-95800iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-22090iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main61204-95800iGX6#,RX6#,SX60,TX60..HT198009-198407

61211RAIL, ROOF SIDE, OUTER RH

main61211-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

sub61211-22060

main61211-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61212RAIL, ROOF SIDE, OUTER LH

main61212-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

sub61212-22060

main61212-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61261CHANNEL, ROOF DRIP, RH

main61261-22050iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

sub61261-22051

main61261-22051iGX61,LX6#,MX61,SX60..SED198208-198407

main61261-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61262CHANNEL, ROOF DRIP, LH

main61262-22050iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

sub61262-22051

main61262-22051iGX61,LX6#,MX61,SX60..SED198208-198407

main61262-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-22010iGX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG)198009-198407

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-22010iGX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG)198009-198407

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-22010iGX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG)198009-198407

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22200iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61301-22220iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61301BPILLAR, CENTER BODY, OUTER RH

main61301-22901iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61301-22902iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22230iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61302-22240iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61302BPILLAR, CENTER BODY, OUTER LH

main61302-22901iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61302-22902iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22050iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61341-22060iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22070iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

main61342-22080iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

61411PANEL, ROCKER, OUTER RH

main61411-22101iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub61411-22111

61412PANEL, ROCKER, OUTER LH

main61412-22101iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub61412-22111

61412BREINFORCEMENT, ROCKER PANEL, NO.2

main61414-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61419REINFORCEMENT, ROCKER OUTER PANEL

main61418-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61511PILLAR, QUARTER LOCK, RH

main61501-22900iGX61,LX65,MX61..SED198009-198407

sub61501-22901

main61501-22901iLX60,SX60..SED198208-198407

main61511-22904iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61512PILLAR, QUARTER LOCK, LH

main61502-22900iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

sub61502-22901

main61512-22904iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

61611PANEL, QUARTER, RH

main61601-22938iLX60,TX60..DLX198109-198208

*30

sub61601-22952

main61601-22939iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

sub61601-22953

main61601-22941iGX6#,MX61,RX6#,TX60..HT198009-198208

main61601-22950iSX60..STD198208-198407

main61601-22951iGX61,LX6#,MX61,SX60..SED..(AVT,DLX,SGT,SXL,XG,XL)198208-198407

main61601-22953iSX60..LPG198302-198407

*30

main61601-22957iGX61,MX61..HT198208-198407

main61601-95826iSX60..HT198208-198407

61612PANEL, QUARTER, LH

main61602-22912iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

sub61602-22921

main61602-22915iGX6#,MX61,RX6#,TX60..HT198009-198208

main61602-22919iGX61,LX6#,MX61,SX60..SED198208-198407

main61602-22923iGX61,MX61,SX60..HT198208-198407

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22907iGX61,LX65,MX61,RX63198009-198407

main61607-22908iGX60,LX60,RX60,SX60,TX60198009-198407

sub61607-22906

main61607-22910iSX60..LPG198302-198407

*30

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61603-22905iGX6#,LX60,MX61,RX6#,TX60198009-198203

sub61603-22907

sub77201-22121

sub77201-22130

main61603-22907iGX6#,LX6#,MX61,RX6#,SX60,TX60198203-198407

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22906iGX61,MX61..HT..AVT198009-198407

main61608-22907iGX60,LX60,RX60,SX60,TX60198009-198407

sub61608-22905

main61608-22910iGX61,MX61,RX63..HT..(GT,SGT)198009-198208

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22070iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub61632-22080

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)198009-198407

main61705-22060iGX61,MX61..SED..AVT198009-198407

main61705-22070iSX60..LPG198302-198407

*30

main61705-95802iGX6#,RX6#,SX60,TX60..HT198009-198407

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)198009-198407

main61706-22060iGX61,MX61..SED..AVT198009-198407

main61706-22070iSX60..LPG198302-198407

*30

main61706-95802iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22060iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main64211-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22050iGX6#,LX60,MX61,RX6#,TX60..SED198009-198407

main64212-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

9095001006

main90950-01006

9095001022

main90950-01022

9095001027

main90950-01027

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001345

main90950-01345

9163140612

main91631-40612

50 parts on this diagram · 2 diagrams in section
