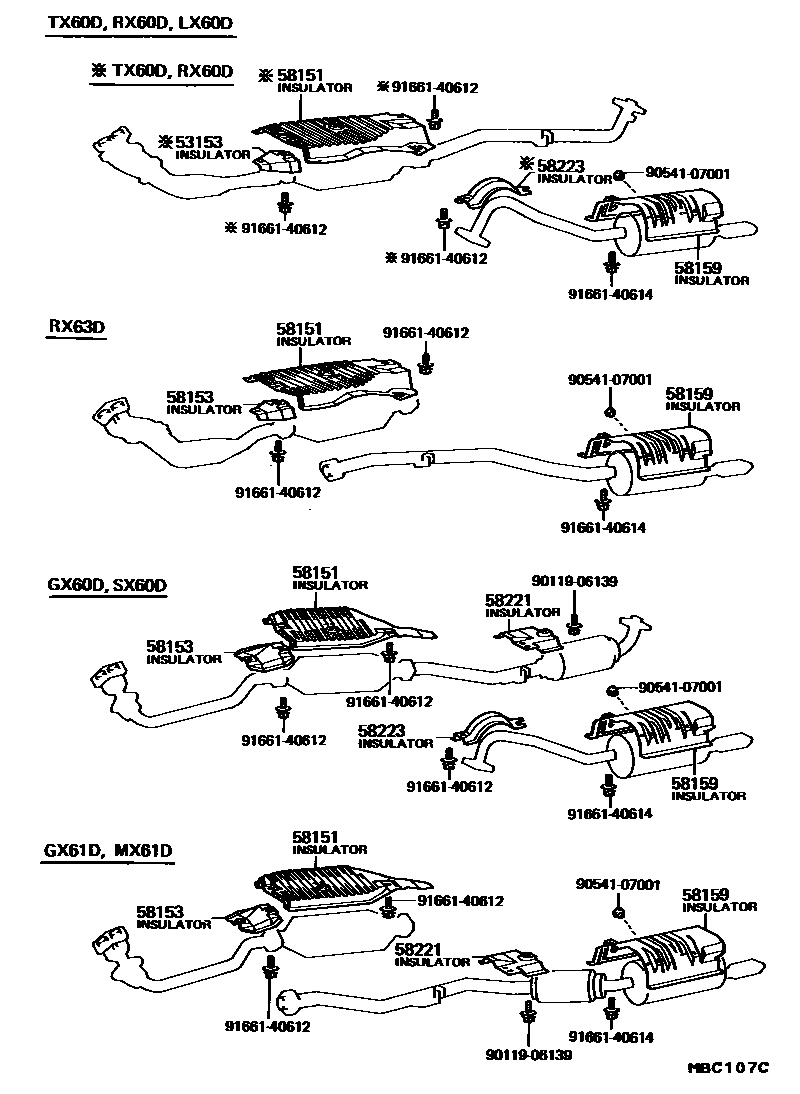

FLOOR INSULATOR

53153

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-22031iRX6#,TX60198009-198208

main58041-22031iSX60..LPG198302-198407

*30

main58041-22041iGX6#,MX61¥16,000198009-198208

sub58041-22042¥15,900

main58041-22042iGX61,MX61,SX60¥15,900198208-198407

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-22040iRX6#,TX60198009-198208

main58153-22050iGX6#,MX61,SX60198009-198407

main58153-91601iSX60..LPG198302-198407

*30

58159INSULATOR, MAIN MAFFLAR HEAT

main58031-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60¥6,000198009-198407

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-22060iGX6#,MX61198009-198208

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-22040iGX60,RX60,SX60,TX60198009-198407

9011906139

main90119-06139¥140

9054107001

main90541-07001¥200

9166140612

main91661-40612¥130

9166140614

main91661-40614¥120

10 parts on this diagram · 1 diagram in section
