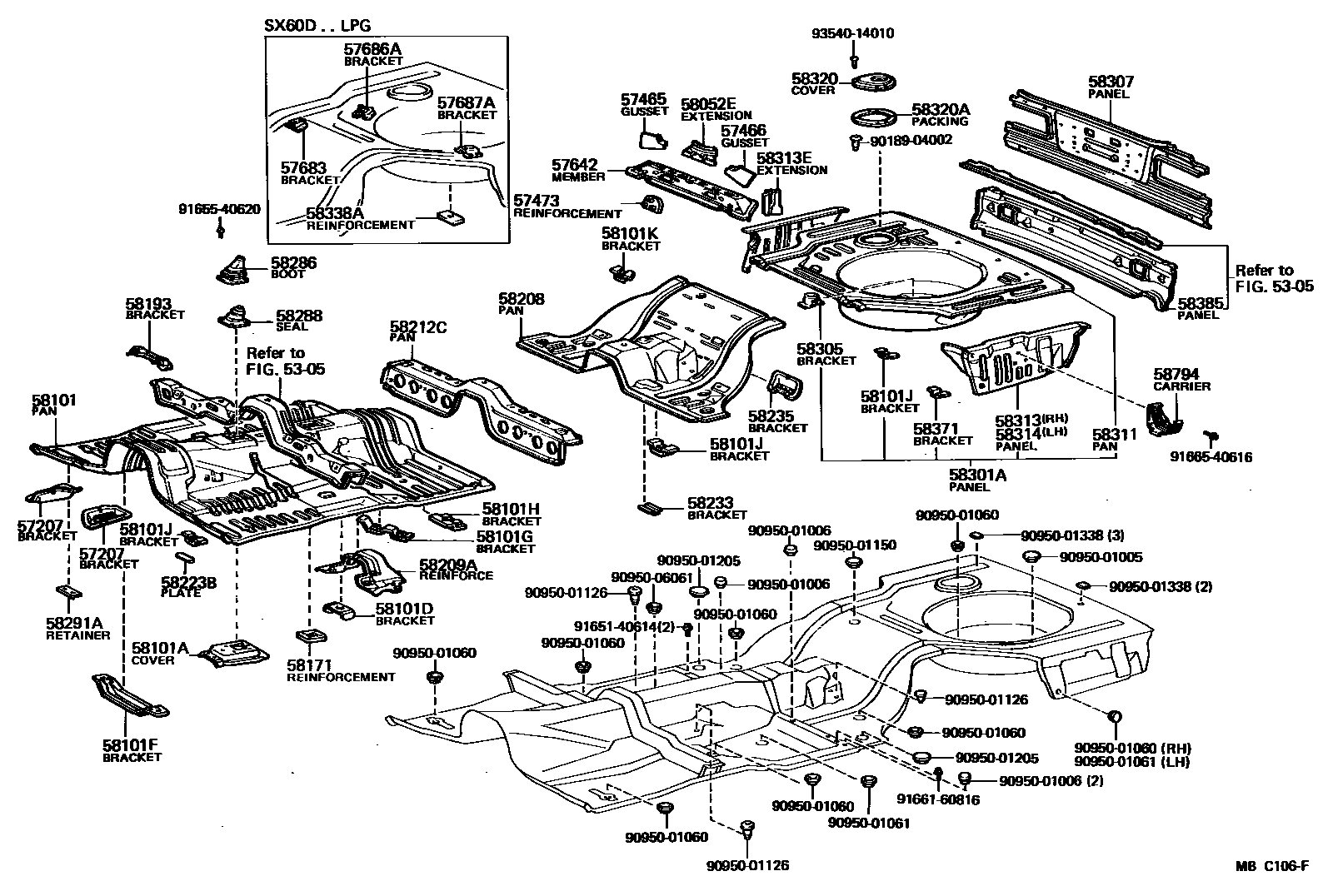

FLOOR PAN & LOWER BACK PANEL

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-22021iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

RH

main57208-22011iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

LH

57465GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH

main57465-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main57465-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

57466GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH

main57466-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main57466-95801iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

57473REINFORCEMENT, REAR SEATBACK HINGE

main57473-95800iGX61,MX61,RX63..HT..(GT,SGT)198009-198208

57642MEMBER, CENTER FLOOR CROSS, NO.2

main57462-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

main57462-95800iGX61,MX61,RX63..HT..(GT,SGT)198009-198208

57683BRACKET, FUEL TANK, FRONT

main57061-22080iSX60..LPG198302-198407

*30

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57063-22010iSX60..LPG198302-198407

RH,*30

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57064-22010iSX60..LPG198302-198407

LH,*30

58052EEXTENSION, CENTER FLOOR TO BRACE

main64227-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

58101PAN SUB-ASSY, FRONT FLOOR

main58111-22070iGX6#,LX60,MX61,RX6#,TX60198009-198204

sub58111-22100

sub58261-22130

sub58261-22140

main58111-22100iGX61,LX60,SX60..5F198204-198407

main58111-22110iGX61,LX6#,MX61,SX60..4FC198208-198407

58101ACOVER, TRANSMISSION AUXILIARY

main58261-22090iTX60..3FC;GX6#,LX60,MX61,RX6#198009-198204

main58261-22100iTX60..4F198009-198204

main58261-22120iSX60..5F198208-198407

main58261-22130iGX61,LX6#,MX61,SX60..4FC198204-198407

main58261-22140iSX60..LPG198302-198407

*30

main58261-22140iTX60..4F198204-198208

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58207-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58131-22020iGX6#,LX6#,MX61,SX60198009-198407

58101GBRACKET, MOUNTING, FLOOR, NO.2

main58132-22021iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58101HBRACKET, MOUNTING, FLOOR, NO.3

main58133-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58101JBRACKET, MOUNTING, FLOOR, NO.4

main58236-14010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58101KBRACKET, MOUNTING, FLOOR, NO.5

main58231-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58171REINFORCEMENT, PARKING BRAKE BASE

main58029-22022iGX61,LX6#,MX61,SX60..4FC198208-198407

main58171-22030iGX6#,LX60,MX61,RX6#,TX60198009-198407

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58208PAN, CENTER FLOOR

main58211-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58212CPAN, CENTER FLOOR, FRONT

main58212-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58223BPLATE, ACCELERATOR PEDAL

main58223-20020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-22011iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING

main58235-22010iGX60,LX60,RX60,SX60,TX60198009-198407

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22060iGX6#,LX60,RX6#,TX60..MTM198009-198208

sub58280-22061

main58280-22061iGX61,LX60,SX60..5F198208-198407

58288SEAL, SHIFT LEVER BOOT

main58288-22021iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

58291ARETAINER, ACCELERATOR PEDAL

main58291-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58301APANEL SUB-ASSY, REAR FLOOR

main58301-22902iGX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,TBO,TDE,TWC198009-198407

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22340iGX6#,LX60,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)198009-198105

main58307-22390iGX61..SED..AVT198009-198208

sub58307-22904

main58307-22440iGX61,LX6#,MX61,SX60..SED198208-198407

main58307-95849iGX6#,MX61,RX6#,TX60..HT198009-198208

main58307-95850iGX61,MX61,SX60..HT198208-198407

58311PAN, REAR FLOOR

main58311-22081iSX60..LPG198302-198407

*30

main58311-22090iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58313PANEL, REAR FLOOR SIDE, RH

main58313-22901iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub58313-22902

58313EEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

58314PANEL, REAR FLOOR SIDE, LH

main58314-22901iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub58314-22902

58320COVER, REAR FLOOR SERVICE HOLE

main58325-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-22010iSX60..LPG198302-198407

*30

58371BRACKET, FUEL PUMP SUPPORT

main58369-22031iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58385PANEL, REAR VALANCE

main58381-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58794CARRIER, JACK

main58791-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

9018904002

main90189-04002

9095001005

main90950-01005

9095001006

main90950-01006

9095001060

main90950-01060

9095001061

main90950-01061

9095001126

main90950-01126

9095001150

main90950-01150

9095001205

main90950-01205

9095001338

main90950-01338

9095006061

main90950-06061

9165140614

main91651-40614

9165540620

main91655-40620

9166160816

main91661-60816

9166540616

main91665-40616

9354014010

main93540-14010

57 parts on this diagram · 1 diagram in section
