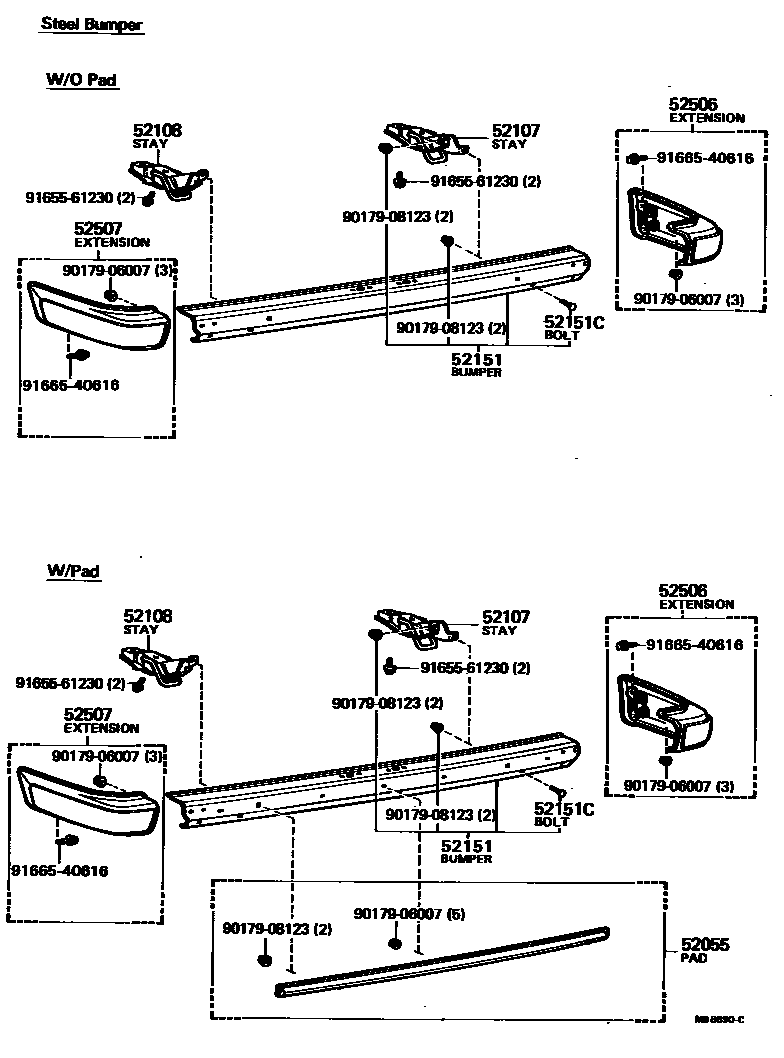

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29065iTX60..XL198009-198208

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-22010iTX60198009-198208

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-22010iTX60198009-198208

52151BUMPER ASSY, REAR

main52151-29385iTX60..XL198009-198208

sub52151-29515

main52151-29455iTX60..DLX198009-198208

sub52151-29525

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08017iTX60198009-198208

52506EXTENSION SUB-ASSY, REAR BUMPER, RH

52507EXTENSION SUB-ASSY, REAR BUMPER, LH

9017906007

main90179-06007

9017908123

main90179-08123

9165561230

main91655-61230

9166540616

main91665-40616

11 parts on this diagram · 3 diagrams in section
