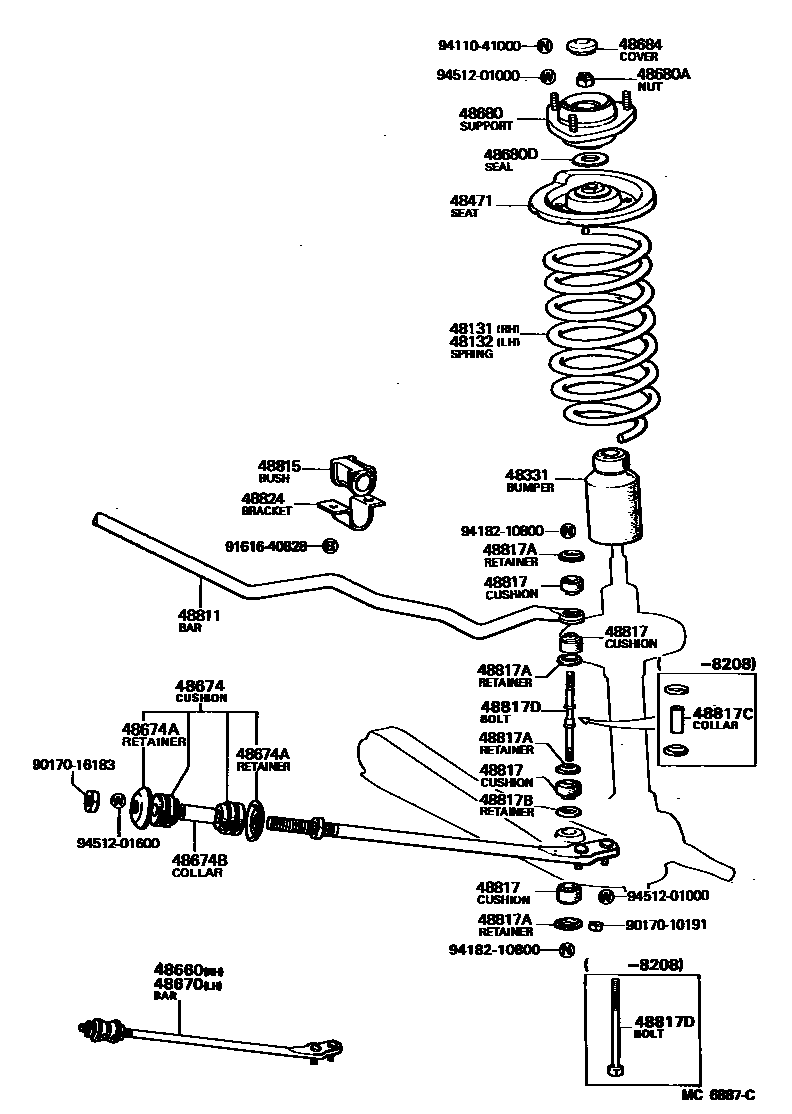

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-22530iGX60¥12,400198009-198208

main48131-22540iTX60¥12,400198009-198208

sub48131-22530¥12,400

main48131-22550iGX61..SGT¥8,900198009-198208

main48131-22580iLX60198009-198208

main48131-22650iRX60¥9,700198009-198208

main48131-22660iRX63¥8,500198009-198208

main48131-22680iMX61..SGT¥10,700198110-198208

sub48131-2A110

main48131-22690iMX61..AVT¥10,700198110-198208

main48131-22720iSX60198208-198407

main48131-22850iGX61..AVT..EFI¥10,400198208-198407

sub48131-22880¥10,400

main48131-2A030iGX61,LX60..DSL,TWC¥10,600198208-198407

main48131-2A050iGX61..SXL¥10,400198208-198407

main48131-2A070iLX65,MX61..AVT,SXL¥11,800198208-198407

main48131-2A090iGX61..TWC¥10,400198208-198407

HARDER SUSPENSION

sub48131-22640¥10,300

main48131-2A110iMX61..SGT198208-198407

48132SPRING, FRONT COIL, LH

main48131-22530iGX60¥12,400198009-198208

main48131-22540iTX60¥12,400198009-198208

sub48131-22530¥12,400

main48131-22550iGX61¥8,900198009-198208

main48131-22580iGX61,LX60..AVT,DLX,XL198009-198208

main48131-22650iRX60¥9,700198009-198208

main48131-22660iRX63¥8,500198009-198208

main48131-22680iMX61..SGT¥10,700198110-198208

sub48131-2A110

main48131-22690iMX61..AVT¥10,700198110-198208

main48131-22860iGX61..AVT..EFI¥10,400198208-198407

sub48131-2A050¥10,400

main48131-22890iSX60198208-198407

main48131-2A040iGX61,LX60..DSL,TWC¥9,900198208-198407

main48131-2A060iGX61..SXL¥10,400198208-198407

sub48131-22670

main48131-2A080iLX65,MX61..AVT,SXL¥11,800198208-198407

sub48131-22690¥10,700

main48131-2A100iGX61..TWC¥10,400198208-198407

HARDER SUSPENSION

main48131-2A120iMX61..SGT198208-198407

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX6#,LX6#,MX61,RX6#,SX60,TX60¥1,000198009-198407

48471SEAT, FRONT SPRING, UPPER

main48044-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60¥1,820198009-198407

48660BAR ASSY, STRUT, RH

main48660-29085iGX6#,LX60,MX61,RX6#,TX60¥6,500198009-198208

main48660-29125iGX61,LX6#,MX61,SX60¥7,200198208-198407

48670BAR ASSY, STRUT, LH

main48670-29085iGX6#,LX60,MX61,RX6#,TX60¥6,500198009-198208

main48670-29125iGX61,LX6#,MX61,SX60¥7,200198208-198407

48674CUSHION, STRUT BAR

main48674-29045iGX6#,LX6#,MX61,RX6#,SX60,TX60¥1,780198009-198407

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02036iGX6#,LX6#,MX61,RX6#,SX60,TX60¥540198009-198407

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108iGX6#,LX6#,MX61,RX6#,SX60,TX60¥540198009-198407

48680SUPPORT ASSY, FRONT SUSPENSION

main48603-22010iGX61,LX6#,MX61,SX60¥4,900198208-198407

RH

main48609-22010iGX6#,LX60,MX61,RX6#,TX60¥4,930198009-198208

main48609-22030iGX61,LX6#,MX61,SX60¥4,900198208-198407

LH

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iGX6#,LX6#,MX61,RX6#,SX60,TX60¥310198009-198407

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX6#,LX6#,MX61,RX6#,SX60,TX60¥260198009-198407

48684COVER, BEARING DUST

main48684-14020iGX6#,LX6#,MX61,RX6#,SX60,TX60¥230198009-198407

48811BAR, STABILIZER, FRONT

main48811-22130iRX60,TX60..DLX,XL¥11,500198009-198208

OD=21

sub48811-22190

main48811-22140iGX61,LX60,RX63..AVT,GT,XL¥12,700198009-198208

OD=23

sub48811-22210¥12,700

main48811-22150iLX60¥12,000198009-198208

OD=22

sub48811-22200

main48811-22170iGX61¥13,400198009-198208

OD=24

sub48811-22220¥13,400

main48811-22190iSX60198208-198407

OD=21

main48811-22200iLX60,MX61..DLX,SGT,XL198208-198407

OD=22

main48811-22210iGX61,LX65¥12,700198208-198407

OD=23

main48811-22210iGX61,LX65¥12,700198208-198407

W/POWER STEERING,OD=23

main48811-22220iGX61..TWC¥13,400198208-198407

HARDER SUSPENSION,OD=24

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14020iLX60,MX61..DLX,SGT,XL¥600198009-198407

ID=22

sub48815-38010¥590

main48815-20060iRX60,TX60..DLX,XL¥600198009-198407

ID=21

main48815-28010iGX61..TWC¥600198403-198407

HARDER SUSPENSION,ID=24

main48815-30050iGX61,LX65¥380198208-198407

W/POWER STEERING,ID=23

main48815-30050iGX61,LX65¥380198208-198407

ID=23,24

main48815-30050iGX61,LX60,MX61,RX63..AVT,GT,SGT,XL¥380198009-198208

ID=23

48817CUSHION, FRONT STABILIZER

main48817-22010iGX6#,LX60,MX61,RX6#,TX60¥600198009-198204

sub48817-22020¥510

main48817-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60¥510198204-198407

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX6#,LX6#,MX61,RX6#,SX60,TX60¥200198009-198407

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX6#,LX6#,MX61,RX6#,SX60,TX60¥90198009-198407

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09002iGX6#,LX6#,MX61,RX6#,SX60,TX60¥260198009-198407

48817DBOLT(FOR FRONT STABILIZER)

main48819-24010iGX61,LX6#,MX61,SX60¥510198208-198407

main90101-08023iGX6#,LX60,MX61,RX6#,TX60¥280198009-198208

48824BRACKET, STABILIZER, FRONT

main48824-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60¥250198009-198407

9017010191

main90170-10191¥110

9017016183

main90170-16183¥240

9161640828

main91616-40828¥190

9411041000

main94110-41000¥160

9418210800

main94182-10800¥230

9451201000

main94512-01000¥90

9451201600

main94512-01600¥200

28 parts on this diagram · 2 diagrams in section
