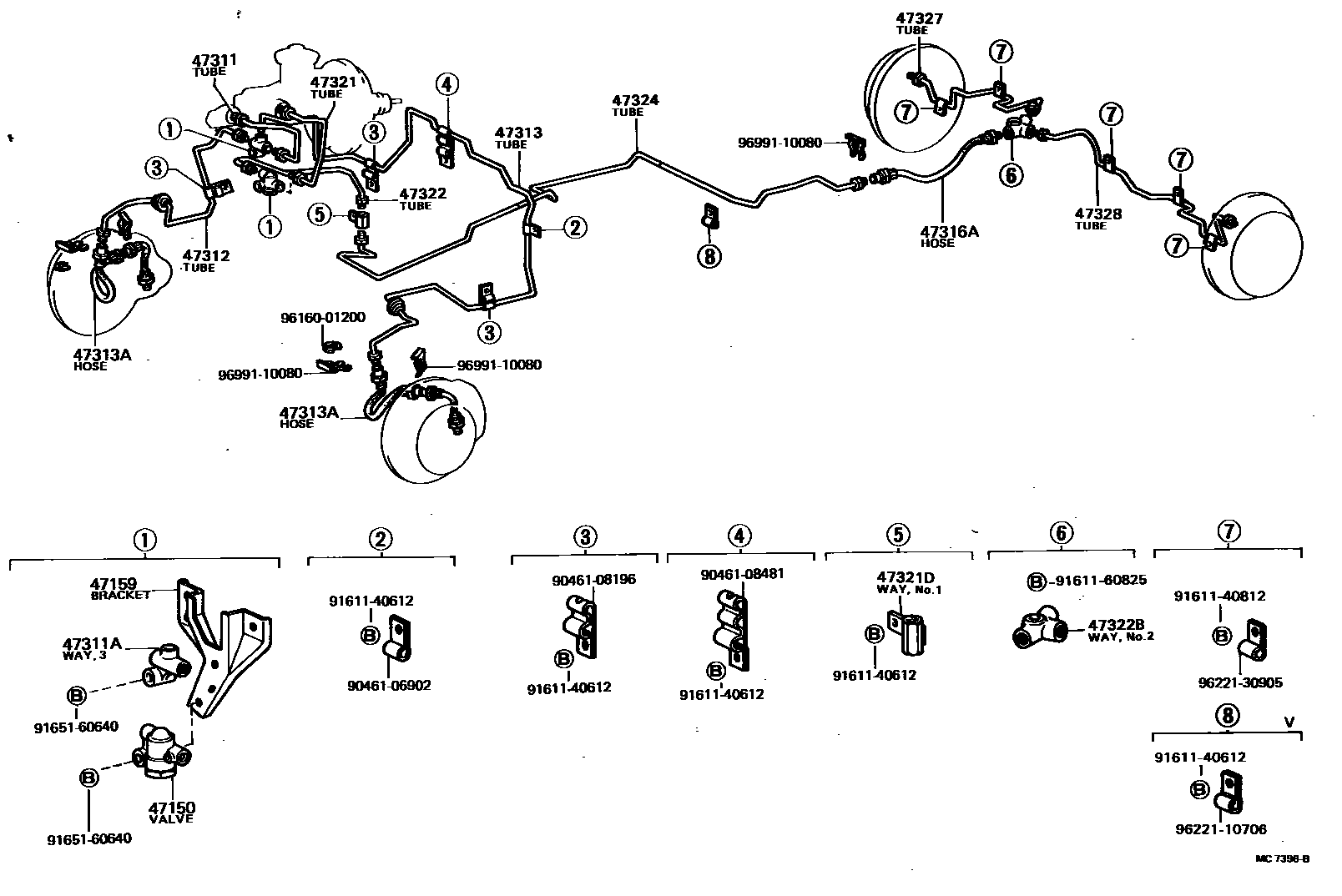

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47150VALVE ASSY, PROPORTIONING

main47150-10010iMX61198110-198407

main47150-10020iLX65198208-198407

main47150-12031iGX60,LX60,RX60,TX60198009-198407

sub47150-22050

main47150-12041iGX61,RX63198009-198407

47159BRACKET, PROPORTIONING VALVE

main47159-22100iGX60,LX60,RX60,SX60,TX60198009-198407

main47159-22110iGX61,RX63198009-198407

main47159-22120iLX65,MX61198110-198407

47311TUBE, FRONT BRAKE, NO.1

main47311-22190iGX61,LX60,SX60..DLX,STD,SXL,XG,XL198009-198407

sub47311-22220

main47311-22200iGX61,RX63198009-198407

main47311-22210iMX61198110-198407

main47311-22230iLX65198208-198407

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47312TUBE, FRONT BRAKE, NO.2

main47312-22060iGX6#,LX60,RX6#,SX60,TX60198009-198407

main47312-22090iLX65,MX61198110-198407

47313TUBE, FRONT BRAKE, NO.3

main47313-22190iGX6#,LX60,RX6#,SX60,TX60198009-198407

main47313-22220iLX65,MX61198110-198407

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02407iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iGX60,LX60,RX60,SX60,TX60198009-198407

47321TUBE, REAR BRAKE, NO.1

main47321-22040iGX61,LX60,SX60..DLX,STD,SXL,XG,XL198009-198407

sub47321-22070

main47321-22050iGX61,RX63198009-198407

main47321-22060iMX61198110-198407

main47321-22080iLX65198208-198407

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10017iGX6#,LX6#,MX61,SX60198009-198407

main90412-10036iRX6#,TX60198009-198208

main90412-10036iSX60..LPG198302-198407

*30

47322TUBE, REAR BRAKE, NO.2

main47322-22080iGX6#,LX60,SX60198009-198407

main47322-22090iSX60..LPG198302-198407

*30

main47322-22090iRX6#,TX60198009-198208

main47322-22110iGX61..AVT198009-198407

W/ESC

main47322-22120iLX65,MX61198110-198407

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10019iRX63198009-198208

main90413-10076iGX61,LX65,MX61198009-198407

main90413-10098iGX60,LX60,RX60,SX60,TX60198009-198407

47324TUBE, REAR BRAKE, NO.4

main47324-22100iRX60,TX60198009-198208

main47324-22100iSX60..LPG198302-198407

*30

main47324-22110iGX60,LX60,SX60198009-198407

main47324-22120iGX61,MX61198009-198208

main47324-22140iRX63198009-198208

main47324-22160iGX61,LX65,MX61198208-198407

47327TUBE, REAR BRAKE, NO.7

main47327-14020iGX61,LX65..SXL198208-198407

main47327-22020iGX61,MX61,RX63198009-198407

main47327-22070iGX60,LX60,RX60,SX60,TX60198009-198407

sub47327-22060

47328TUBE, REAR BRAKE, NO.8

main47328-14020iGX61,LX65..SXL198208-198407

main47328-22020iGX61,MX61,RX63198009-198407

main47328-22070iGX60,LX60,RX60,SX60,TX60198009-198407

sub47328-22060

9046106902

main90461-06902

9046108196

main90461-08196

9046108481

main90461-08481

9161140612

main91611-40612

9161140812

main91611-40812

9161160825

main91611-60825

9165160640

main91651-60640

9616001200

main96160-01200

9622110706

main96221-10706

9622130905

main96221-30905

9699110080

main96991-10080
