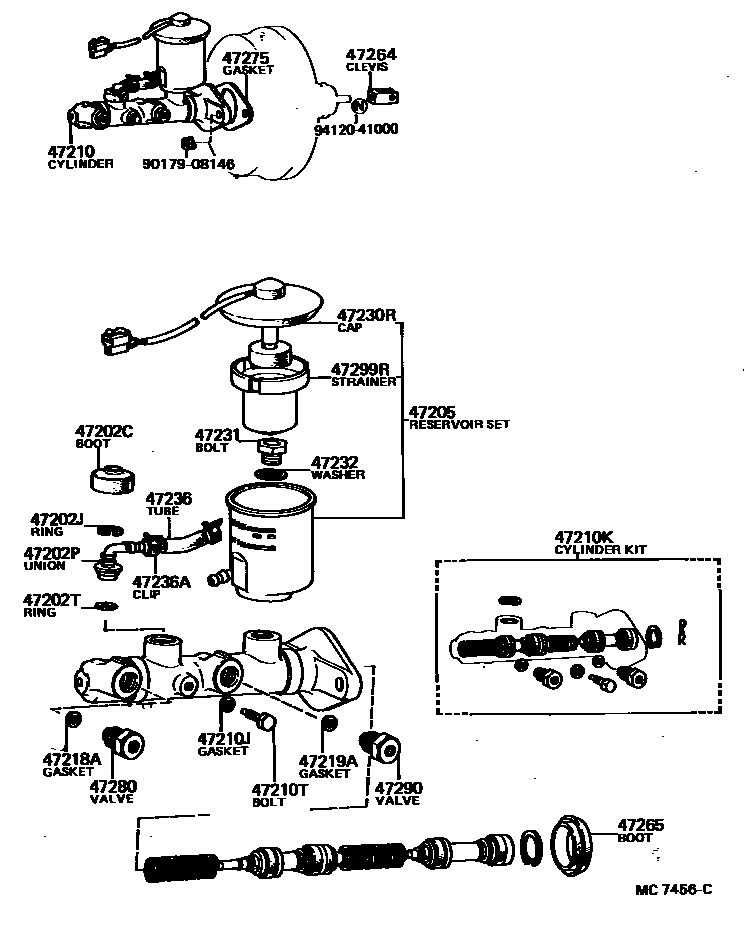

BRAKE MASTER CYLINDER

0001 1 0003 1 0005 1

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iGX6#,LX60,RX6#,SX60,TX60198009-198407

sub90407-10004

main90407-10004iLX65,MX61198110-198407

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-20240iGX60,LX60,RX60,TX60198009-198407

sub47202-14270

main47202-22120iGX61,RX63198009-198407

main47202-22160iLX65198208-198407

main47202-30080iMX61198110-198407

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-22350iGX60,LX60,RX60,SX60,TX60198009-198407

main47201-22360iGX61,RX63198009-198407

main47201-22380iGX61..SXL198208-198407

sub47207-22110

sub84460-20051

main47201-22400iMX61198110-198407

main47201-22410iLX65198208-198407

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47210KCYLINDER KIT, BRAKE MASTER

main04493-20110iGX60,LX60,RX60,TX60198009-198407

main04493-22070iGX61..AVT198009-198407

main04493-22080iMX61198110-198407

main04493-22090iLX65198208-198407

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-20051iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iLX65,MX61198110-198407

main47231-30010iGX6#,LX60,RX6#,SX60,TX60198009-198407

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iGX6#,LX6#,RX6#,SX60,TX60198009-198407

47236TUBE, RESERVOIR BRAKE

main47234-14010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47265BOOT, MASTER CYLINDER

main47265-20050iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iGX6#,LX60,RX6#,SX60,TX60198009-198407

sub47275-26010

main47275-22010iGX61,LX65,MX61,RX63198009-198407

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iLX65198208-198407

main47280-24010iMX61198110-198407

main47280-30030iGX6#,LX60,RX6#,SX60,TX60198009-198407

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iLX65,MX61198110-198407

main47280-30030iGX6#,LX60,RX6#,SX60,TX60198009-198407

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iGX6#,LX6#,MX61,RX6#,SX60,TX60198107-198407

main47299-20010iGX6#,LX60,RX6#,TX60198009-198107

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 3 diagrams in section
