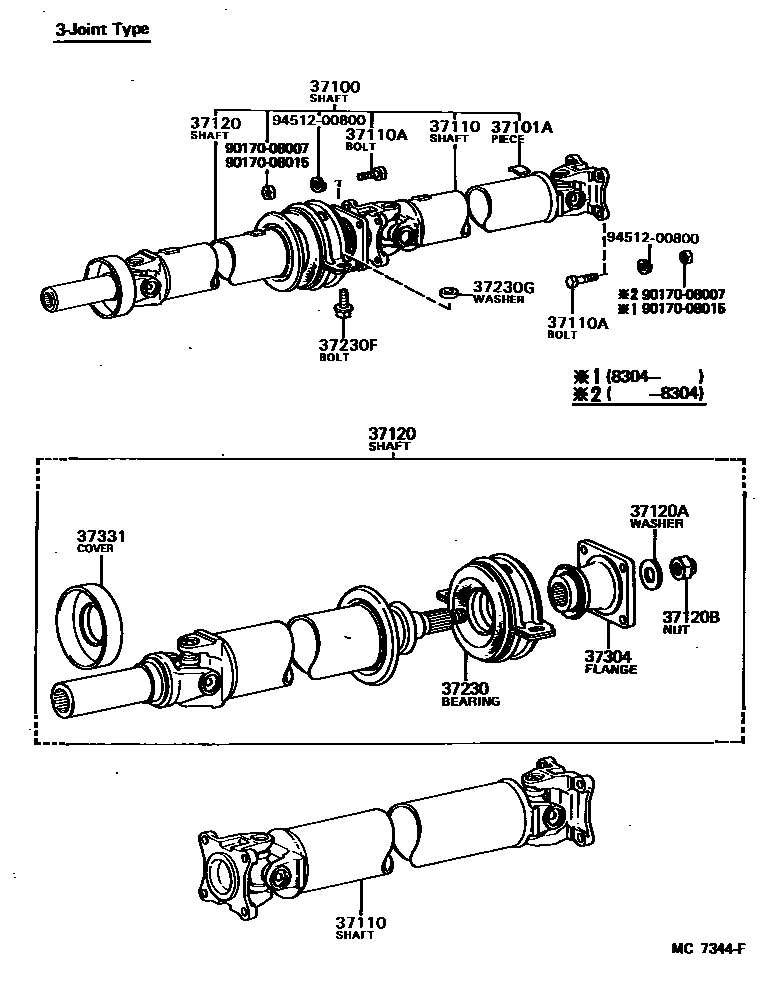

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0004 1 0005 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-22200iSX60,TX60..3FC,4F,4FC198009-198407

main37100-22200iSX60..LPG198302-198407

*30

main37100-22210iGX6#,LX60,RX6#..MTM198009-198407

main37100-22220iGX6#,RX60..4FC198009-198208

A40D

main37100-22230iLX6#,MX61..4FC198009-198407

main37100-22230iGX61,LX60..4FC198105-198208

A42D,A42DL

main37100-22240iMX61198110-198208

main37100-22250iGX61..5F..TWC198208-198407

main37100-22270iSX60..5F198208-198407

main37100-22280iGX61..4FC..EFI198208-198407

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01136iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01140iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01147iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01148iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01149iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01150iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01151iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01152iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01153iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01154iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01155iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01156iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01157iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90937-01158iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

37110SHAFT ASSY, PROPELLER

main37110-12330iGX61..5F;LX6#,MX61,SX60198009-198407

main37110-20170iMX61198110-198208

main37110-22110iGX61..4FC..EFI198208-198407

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iGX6#,LX6#,MX61,RX6#,SX60,TX60198102-198304

main90101-08082iGX61,LX6#,MX61,SX60198304-198407

main90101-08214iGX6#,LX60,RX6#,TX60198009-198102

sub90101-08262

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-22110iMX61198110-198208

main37120-22120iSX60..LPG198302-198407

*30

main37120-22120iSX60,TX60..3FC,4F,4FC198009-198407

main37120-22130iGX61..5F..EFI198009-198407

main37120-22140iGX6#,RX60..4FC198009-198208

A40D

main37120-22150iLX60..4FC198009-198407

main37120-22150iGX61,LX60..4FC198105-198208

A42D,A42DL

main37120-22160iGX61..5F..TWC198208-198407

main37120-22170iSX60..5F198208-198407

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90201-26005iGX61,LX6#,MX61,SX60198402-198407

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGX61,LX6#,MX61,SX60198402-198407

main90179-18060iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198402

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-22042iGX6#,LX60,MX61,RX6#,TX60198009-198407

main37230-22070iGX61..TWC198208-198407

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10046iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iGX6#,LX60,MX61,RX6#,TX60198009-198407

main90201-10017iGX6#,LX60,MX61,RX6#,TX60198009-198407

main90201-10033iGX61,LX6#,MX61,SX60..CBR,DSL,EFI,LPG,TBO,TDE198009-198407

main90201-10034iGX6#,LX60,MX61,RX6#,TX60198009-198407

main90201-10035iGX6#,LX60,MX61,RX6#,TX60198009-198407

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22012iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198402

sub37304-22H00

main37304-22013iGX61,LX6#,MX61,SX60198402-198407

sub37304-28010

37331COVER, SLIDING SHAFT DUST

main37331-30010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
