TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

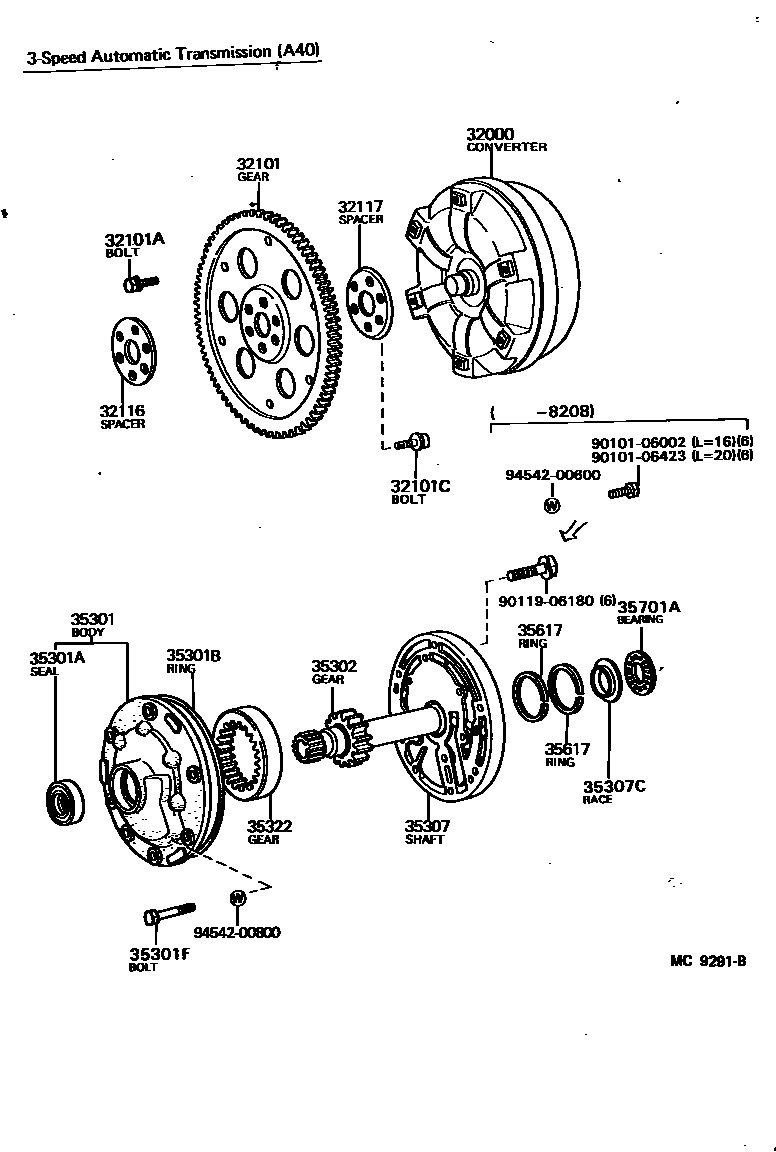

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-14040i198009-198208
sub32000-14041
main32000-14050i198009-198107
A40D
sub32000-14080
main32000-14080i198107-198208
A40D
sub32000-14081
main32000-14090i198107-198406
sub32000-14091
main32000-14091i198406-198407
main32000-14100i198208-198406
sub32000-14101
main32000-14101i198406-198407
main32000-24010i198105-198407
A42DL,A42DE
sub32000-24011
main32000-30090i198009-198107
sub32000-14090
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-14030i198009-198311
sub32101-22030
main32101-14040i198208-198407
main32101-20050i198009-198208
main32101-22030i198302-198407
sub32101-22031
main32101-30040i198110-198407
main32101-30051i198009-198407
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08090i198212-198407
L=10.5,WHITE
main90109-08107i198304-198407
main90119-08223i198110-198212
main90119-08223i198212-198407
main91611-60812i198009-198407
sub91611-B0812
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10006i198009-198108
main90105-10046i198108-198407
main90105-12014i198009-198407
main90109-10037i198110-198407
main90109-10049i198208-198407
sub90109-10054
main90913-01011i198009-198208
32116SPACER, DRIVE PLATE, FRONT
main32116-14011i198009-198407
main32116-14020i198208-198407
main32116-20011i198009-198208
main32116-30011i198110-198407
main32116-30020i198009-198407
32117SPACER, DRIVE PLATE, REAR
main32117-14011i198009-198407
main32117-14030i198208-198407
main32117-20021i198009-198208
main32117-30011i198110-198407
main32117-30020i198009-198407
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-14010i198105-198407
A42DL,A42DE
main35301-22012i198009-198010
sub35301-30030
sub90101-06002
sub90101-08046
main35301-30030i198010-198407
A40,A40D,A42D,A43D
main35301-30030i198009-198010
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i198312-198407
main90311-38129i198009-198312
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99010i198009-198407
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90101-08042i198009-198407
A42D,A42DL,A42DE,A43D
sub90105-08137
main90101-08042i198208-198407
sub90105-08137
main90101-08046i198108-198208
L=40
sub90105-08128
main90101-08431i198009-198208
A40D
sub90105-08136
main90109-08075i198009-198108
L=45
sub90109-08073
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
main35321-14010i198105-198407
A42DL,A42DE
sub35321-22020
sub35321-22030
sub35321-22040
sub35321-22050
sub35321-22060
main35321-22010i198009-198407
A40,A40D,A42D,A43D
sub35321-22090
35307SHAFT SUB-ASSY, STATOR
main35370-14010i198105-198108
A42DL
main35370-14011i198208-198407
sub35370-14012
main35370-22010i198009-198108
main35370-22011i198108-198208
sub35370-22012
main35370-22021i198108-198208
A42DL
main35370-22030i198108-198208
A40D,A42D
sub35370-22031
main35370-22030i198208-198407
sub35370-22031
main35370-30010i198009-198108
A40D,A42D
sub35370-30012
main35370-30021i198110-198407
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-22010i198108-198407
main35789-22010i198009-198108
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-14010i198105-198407
sub35322-22020
sub35322-22030
sub35322-22040
sub35322-22050
sub35322-22060
main35322-22010i198009-198407
sub35322-22090
35617RING, CLUTCH DRUM OIL SEAL
main35617-16010i198108-198407
main35617-22010i198009-198108
main35617-22011i198108-198208
sub35617-32010
main35617-22020i198009-198108
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
main90374-23012i198108-198110
A40,A40D,A42D
main90374-23012i198009-198407
main90374-25003i198110-198407
main90374-25003i198108-198407
A42DL,A42DE
9010106002
main90101-06002
9010106423
main90101-06423
9011906180
main90119-06180
9454200600
main94542-00600
9454200800
main94542-00800

21 parts on this diagram · 2 diagrams in section
