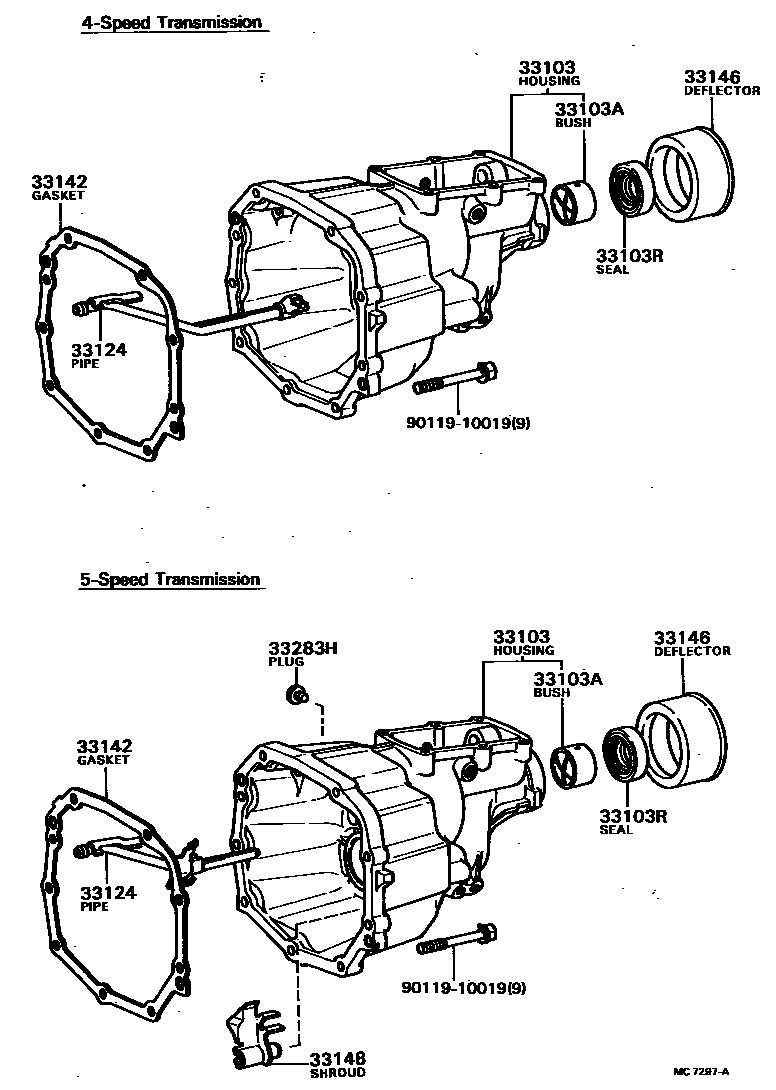

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22090iGX6#,LX60,RX6#,SX60..5F198009-198407

sub33103-22091

main33103-22100iGX60,RX60,TX60..4F198009-198208

main33103-30190iLX60..DLX198302-198407

*30

sub33103-30191

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90999-73139

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub90311-38040

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iGX6#,LX60,RX6#,SX60..5F198009-198407

sub33106-35030

main33106-22020iGX60,RX60,TX60..4F198009-198208

33142GASKET, EXTENSION HOUSING(MTM)

main33142-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

sub33146-30020

33148SHROUD, GEAR, NO.1

main33148-22010iGX6#,LX60,RX6#,SX60..5F198009-198407

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iGX6#,LX60,RX6#,SX60..5F198009-198407

9011910019

main90119-10019

9 parts on this diagram · 1 diagram in section
