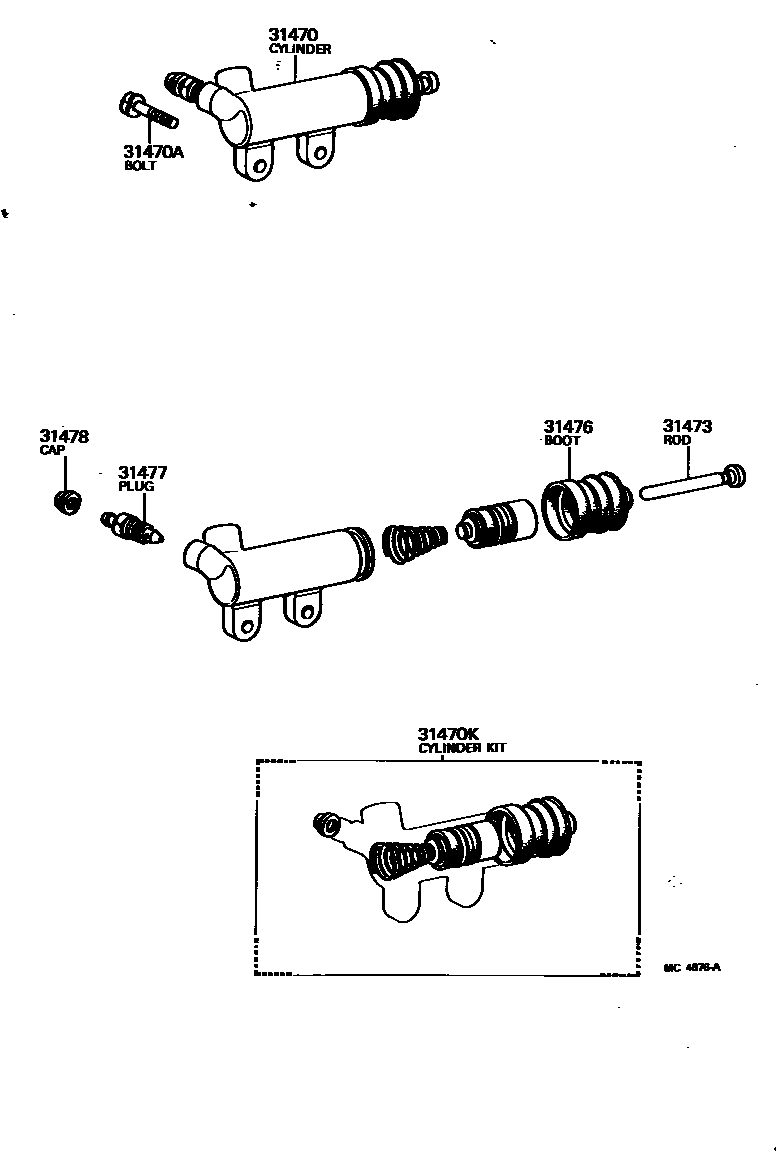

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iRX6#,TX60..MTM¥7,100198009-198102

sub31470-14021¥7,400

main31470-14021iRX6#,TX60..MTM¥7,400198102-198208

sub31470-20190¥7,500

main31470-22090iLX60..5F¥39,000198009-198407

main31470-30220iGX6#,SX60..MTM¥7,200198009-198407

sub31470-30221¥7,400

main31470-35050iSX60..LPG¥7,600198302-198407

*30

sub31470-30260¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iGX6#,LX60,RX6#,SX60,TX60..MTM¥160198009-198407

sub91611-B0825¥160

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iGX6#,RX6#,SX60,TX60..MTM¥1,040198009-198407

sub04313-12030¥800

main04313-30100iRX6#,TX60..MTM¥1,030198009-198012

main04313-30120iLX60..5F¥1,090198009-198407

sub04313-26020¥1,090

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iRX6#,TX60..MTM198009-198102

main31473-22010iGX6#,LX60..MTM¥720198009-198407

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX6#,LX60..MTM¥230198009-198407

main31476-30040iRX6#,TX60..MTM¥460198009-198102

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX6#,LX60,RX6#,SX60,TX60..MTM¥180198009-198407

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX6#,LX60,RX6#,SX60,TX60..MTM¥160198009-198407

7 parts on this diagram · 2 diagrams in section
