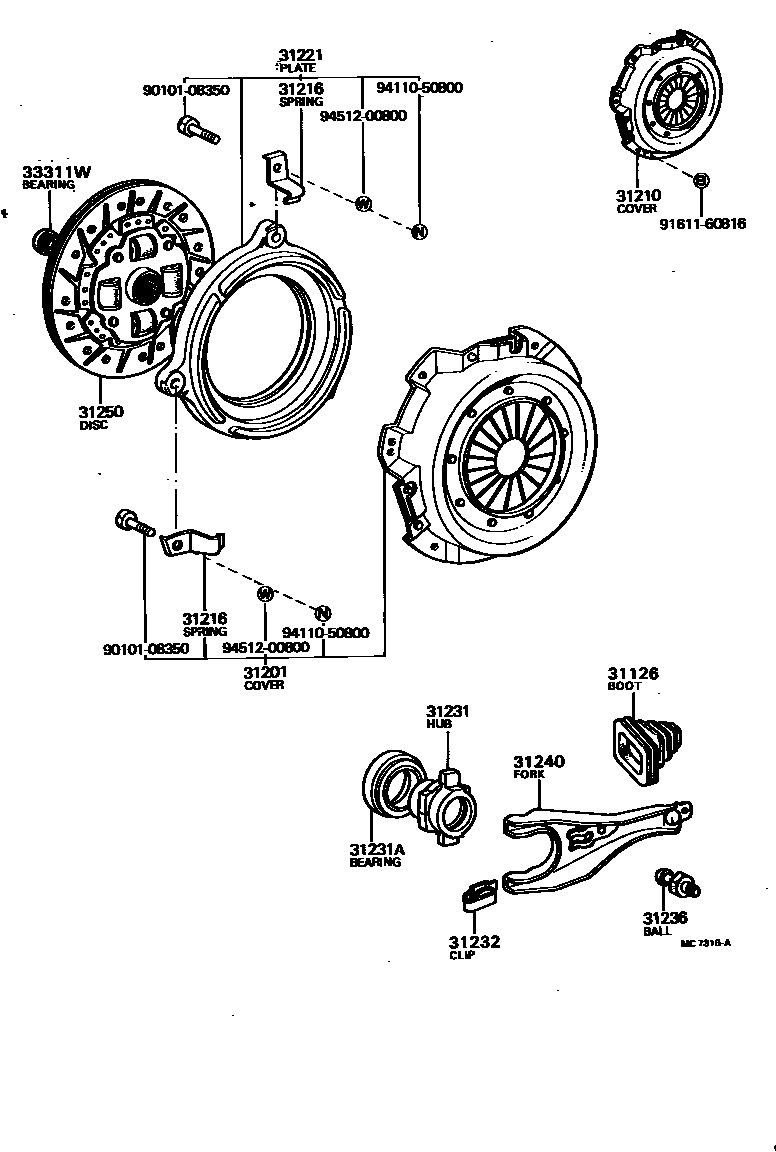

CLUTCH & RELEASE FORK

0001 1 0002 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRX6#..MTM198009-198208

main31126-20060iSX60..LPG198302-198407

*30

main31126-20070iGX6#,LX60,SX60,TX60..MTM198009-198407

31201COVER SUB-ASSY, CLUTCH

main31201-19048iTX60..4F198009-198012

sub31201-19075

main31201-19075iTX60..4F198012-198208

main31201-19095iGX61..5F..TWC198208-198407

sub31201-14110

main31201-29085iGX61,SX60..CBR,EFI198009-198407

sub31201-26010

main31201-29145iSX60..LPG198302-198407

*30

sub31201-20120

main31201-39047iRX60..MTM198009-198208

main31201-39068iLX60..5F198009-198109

sub31201-39135

main31201-39135iLX60..5F198109-198407

31210COVER ASSY, CLUTCH

main31210-14130iGX61..5F..TWC198208-198407

sub31210-35090

main31210-20170iRX63198009-198208

sub31210-20171

main31210-20180iSX60..LPG198302-198407

*30

sub31210-20181

main31210-23011iTX60..4F198009-198012

sub31210-23012

main31210-23012iTX60..4F198012-198208

sub31210-12210

main31210-26030iSX60..5F198208-198407

sub31210-26070

main31210-30152iLX60..5F198009-198109

sub31210-30153

main31210-30153iLX60..5F198109-198407

sub31210-30154

main31210-30172iRX60..MTM198009-198208

sub31210-20270

main31210-36029iSX60..STD198208-198407

*30

sub31210-36200

main31210-36029iGX6#..MTM..EFI198012-198407

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-20020iTX60..4F198009-198208

main31216-30010iGX6#,LX60,RX6#,SX60..MTM198009-198407

31221PLATE, CLUTCH PRESSURE

main31221-19025iTX60..4F198009-198208

main31221-29025iRX63198009-198208

main31221-29035iSX60..5F198208-198407

main31221-29065iSX60..LPG198302-198407

*30

sub31221-20070

main31221-39056iGX6#..MTM198012-198407

sub31221-36025

main31221-39056iSX60..STD198208-198407

*30

sub31221-36025

main31221-39105iLX60..5F198009-198407

sub31221-30090

main31221-39115iRX60..MTM198009-198208

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLX60,RX6#,SX60,TX60..MTM198009-198407

main31231-22040iGX6#..MTM198009-198109

sub31231-36070

main31231-36070iSX60..LPG198302-198407

*30

main31231-36070iGX6#..MTM198109-198407

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40015iGX6#,LX60,RX6#,TX60..MTM198009-198012

sub90363-40022

main90363-40022iGX6#,LX60,RX6#,SX60,TX60..MTM198012-198407

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iGX6#,LX60,RX6#,SX60,TX60..MTM198009-198407

31236BALL, RELEASE FORK

main31236-20020iGX6#,LX60,RX6#,TX60..MTM198009-198107

main31236-30060iGX6#,LX60,RX6#,SX60,TX60..MTM198107-198407

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRX6#..MTM198009-198208

sub31204-20072

main31204-20070iSX60..LPG198302-198407

*30

sub31204-20072

main31204-20090iGX6#,LX60,SX60,TX60..MTM198009-198407

31250DISC ASSY, CLUTCH

main31250-20130iSX60..STD198208-198405

*30

sub31250-20131

main31250-20131iSX60..LPG198405-198407

*30

main31250-22053iRX63198009-198208

sub31250-22054

main31250-22090iTX60..4F198009-198107

sub31250-22091

main31250-22090iTX60..DLX198109-198201

*30

sub31250-22091

main31250-22091iTX60..4F198107-198208

sub31250-28140

main31250-22120iRX60..MTM198009-198208

sub31250-22121

main31250-22130iTX60..DLX198201-198208

*30

sub31250-22091

main31250-22140iLX60..5F198112-198204

sub31250-22141

main31250-22141iLX60..5F198204-198210

sub31250-22142

main31250-22142iLX60..5F198210-198304

sub31250-22170

main31250-22143iLX60..5F198304-198407

sub31250-22210

main31250-22150iGX61..5F..TWC198208-198407

sub31250-22151

main31250-30233iLX60..5F198009-198105

sub31250-30234

main31250-30234iLX60..5F198105-198110

sub31250-30235

main31250-30235iLX60..5F198110-198112

sub31250-30270

main31250-30310iGX6#..MTM..EFI198009-198407

sub31250-22101

main31250-35061iSX60..5F198208-198407

sub31250-35062

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLX60,RX6#..MTM198011-198407

sub90363-12024

main90363-12002iSX60..LPG198302-198407

*30

sub90363-12024

main90363-12003iGX6#,TX60..MTM198011-198407

main90363-12004iSX60..5F198208-198407

main97123-06001iGX6#,TX60..MTM198009-198011

main97143-06201iLX60,RX6#..MTM198009-198011

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 4 diagrams in section
