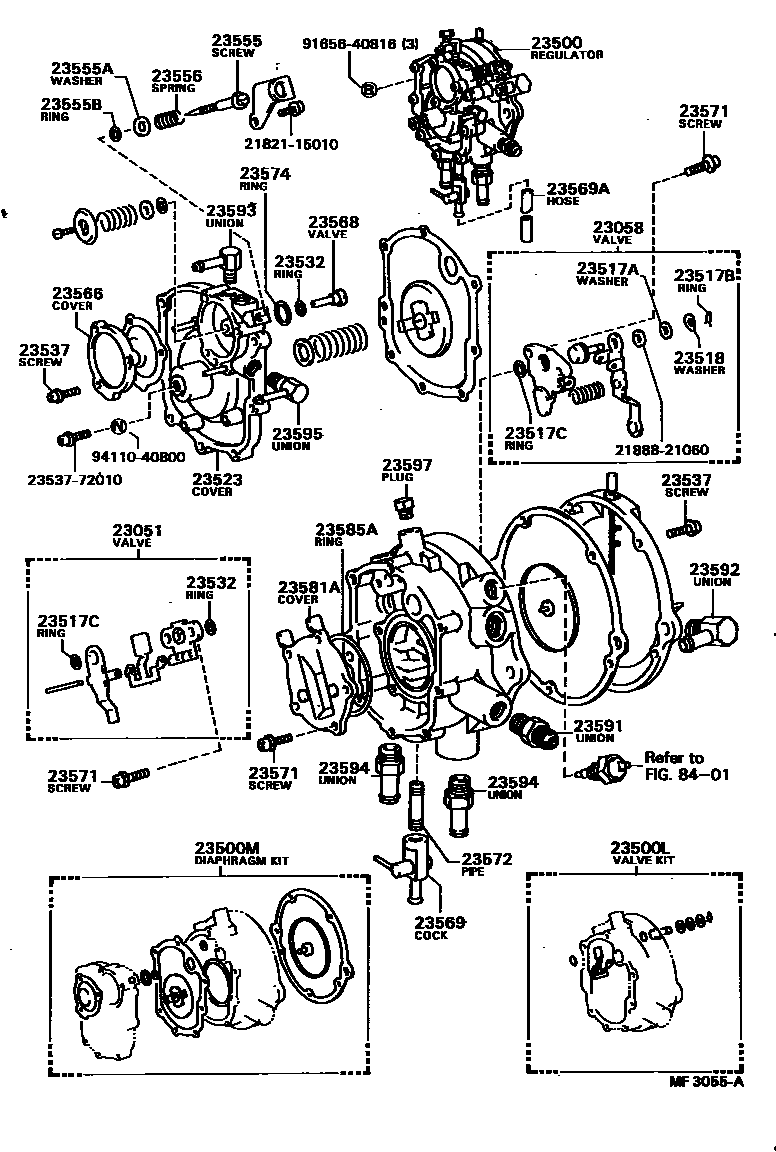

LPG OR CNG REGULATOR
23051VALVE SUB-ASSY, 1ST
*30
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
*30
23500LVALVE KIT, LPG REGULATOR
*30
23500MDIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
*30
23517AWASHER(FOR ELASTIC FACE VALVE SET)
*30
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
*30
23517CGASKET(FOR ELASTIC FACE VALVE)
*30
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
*30
23523COVER, 1ST REGULATOR
*30
23532RING, O, NO.2(FOR BULB)
*30
23537SCREW(FOR 2ND REGULATOR COVER SET)
*30
23555SCREW, IDLE ADJUST
23555AWASHER, IDLE ADJUST SCREW
*30
23555BRING, O(FOR IDLE ADJUST SCREW)
*30
23556SPRING, IDLE ADJUST SCREW
*30
23566COVER(FOR VACUUM LOCK DIAPHRAGM)
*30
23568VALVE(FOR VACUUM LOCK DIAPHRAGM)
*30
23569COCK, DRAIN
*30
23569AHOSE(FOR DRAIN COCK)
*30
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
*30
23572PIPE, DRAIN
*30
23574RING, O, NO.1(FOR BULB)
*30
23581ACOVER, UPPER PREHEATER
*30
23585ARING, O(FOR PREHEATER)
*30
23591UNION, NO.1, FUEL
*30
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
*30
23594UNION, NO.4, WATER HOSE
*30
23595UNION, NO.5
23597PLUG, LPG REGULATOR BODY
8401
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9165640816
main91656-40816
9411040800
main94110-40800
37 parts on this diagram · 1 diagram in section
