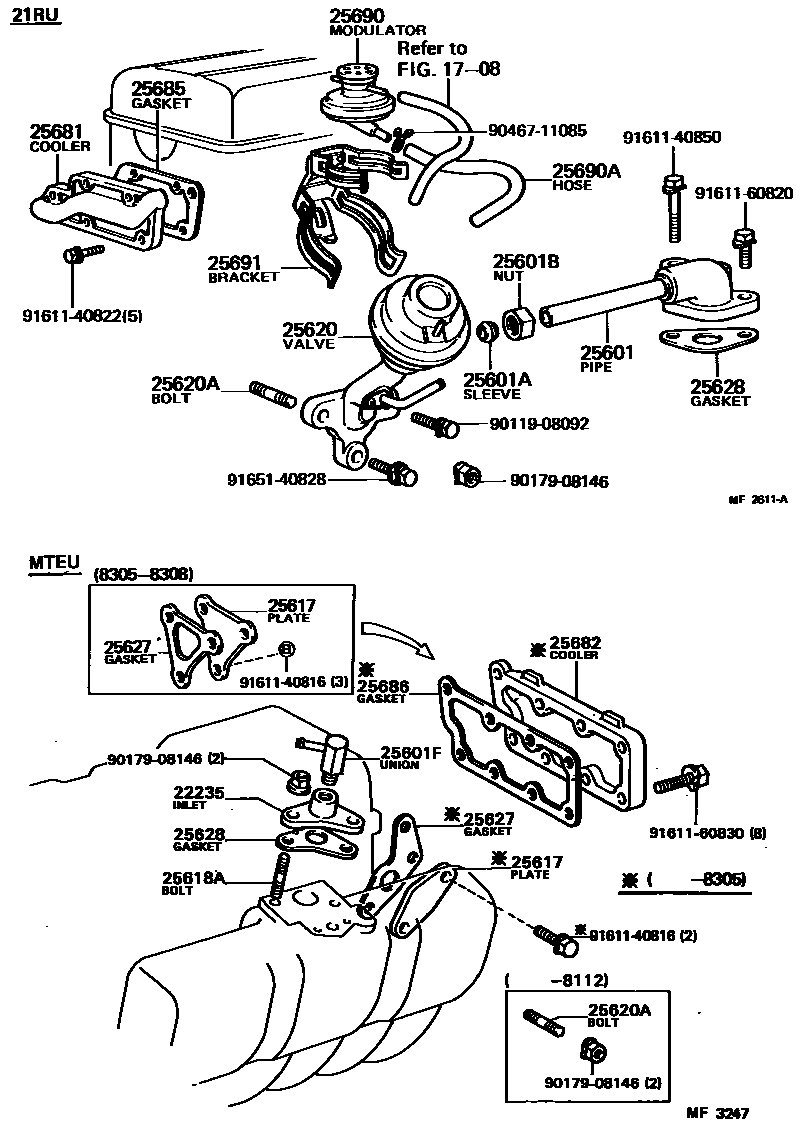

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 MF2611A,MF3247 0003 1 MF1852B,MF2694A 0004 1

1708

22235INLET, AUXILIARY AIR

main22235-43010iMTEU..MX61198110-198407

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i21RU..RX60198009-198208

main25611-72010i2YPU..SX60198302-198407

*30

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i2YPU..SX60198302-198407

*30,VALVE SIDE

main90410-16001i2YPU..SX60198302-198407

*30,UNION SIDE

main90410-16044i21RU..RX60198009-198208

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20008i2YPU..SX60198302-198308

*30,VALVE SIDE

sub90402-20073

main90402-20073i2YPU..SX60198308-198407

*30,VALVE SIDE

main90402-22005i2YPU..SX60198302-198308

*30,UNION SIDE

main90402-22010i2YPU..SX60198308-198407

*30,UNION SIDE

main90402-22081i21RU..RX60198009-198208

25601FUNION(FOR EGR PIPE, NO.1)

main90404-22003i2YPU..SX60198302-198407

*30

main90404-53027iMTEU..MX61198110-198407

25617PLATE, EGR HOLE COVER

main25617-43010iMTEU..MX61198110-198305

main25617-43030iMTEU..MX61198305-198308

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025iMTEU..MX61198110-198407

25620VALVE ASSY, EGR

main25620-18020i13TU..TX60..3FC198009-198208

main25620-18030i13TU..TX60..4F198009-198208

main25620-37010i21RU..RX60198009-198208

main25620-63010i1SU..SX60..5F198208-198407

main25620-63020i1SU..SX60..4FC198208-198407

main25620-72010i2YPU..SX60198302-198407

*30

sub25620-72011

sub90445-11078

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08008i2YPU..SX60198302-198407

*30

main90116-08025iMTEU..MX61198110-198112

main90116-08207i21RU..RX60198009-198208

25627GASKET, EGR VALVE

main25627-26011i13TU..TX60198009-198208

sub25627-26012

main25627-31020i2YPU..SX60198302-198407

*30

main25627-41020iMTEU..MX61198110-198305

sub25627-43140

main25627-43040iMTEU..MX61198305-198308

sub25627-43060

main25627-63010i1SU..SX60198208-198407

sub25627-63011

25628GASKET, EGR INLET

main25628-38010i21RU..RX60198009-198208

main25628-45020iMTEU..MX61198110-198407

25681COOLER, EGR, NO.1

main11181-35010i21RU..RX60198009-198206

main11181-35020i21RU..RX60198206-198208

25682COOLER, EGR, NO.2

main25682-45020iMTEU..MX61198110-198305

25685GASKET, EGR COOLER, NO.1

main11182-35010i21RU..RX60198206-198208

sub11182-35011

main11182-38011i21RU..RX60198009-198206

25686GASKET, EGR COOLER, NO.2

main25686-45010iMTEU..MX61198110-198305

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-28010i13TU..TX60198009-198208

main25690-37010i21RU..RX60198009-198208

main25870-63010i1SU..SX60198208-198407

main25870-72010i2YPU..SX60198302-198407

*30

sub25870-71011

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11013i1SU..SX60198208-198407

main90445-11020i13TU..TX60198009-198208

sub90445-11051

main90910-05134i21RU..RX60198009-198208

main90910-05137i2YPU..SX60198302-198407

*30

sub90910-05128

25691BRACKET, EGR VACUUM MODULATOR

main25691-27011i13TU..TX60198009-198208

main25691-38021i21RU..RX60198009-198208

main25691-63010i1SU..SX60198208-198407

main25691-72010i2YPU..SX60198302-198407

*30

9011908092

main90119-08092

9017908146

main90179-08146

9046711085

main90467-11085

9161140816

main91611-40816

9161140822

main91611-40822

9161140850

main91611-40850

9161160820

main91611-60820

9161160830

main91611-60830

9165140828

main91651-40828

28 parts on this diagram · 3 diagrams in section
