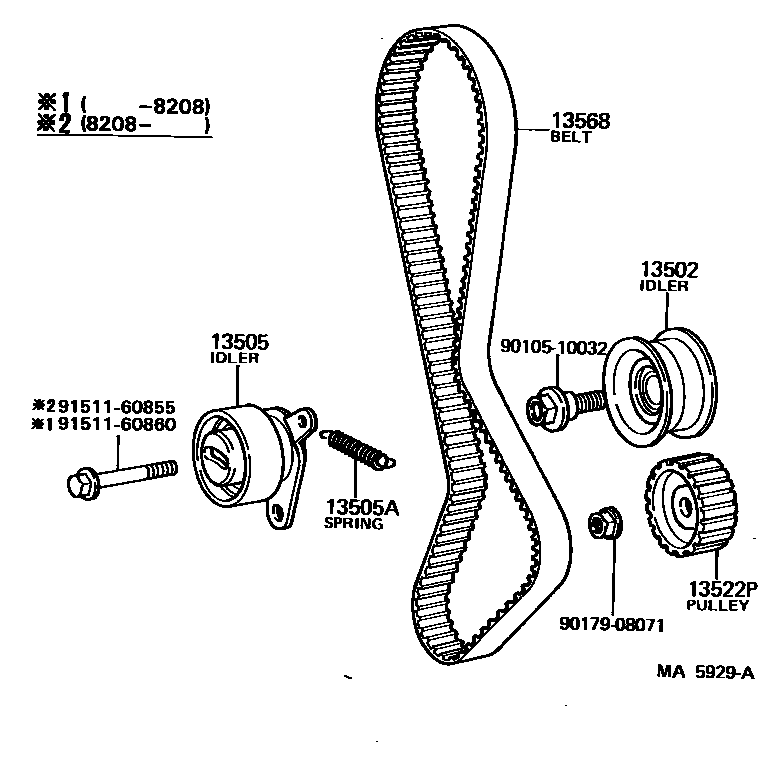

TIMING BELT

0001 1 0002 1 0003 1 0004 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010iL,2LTE..LX6#198205-198407

sub13503-54020

main13503-63010i1SU..SX60198208-198407

sub13503-63011

main13503-70020i1GEU..GX6#198009-198407

main13503-70040i1GEU..GX61198407-198407

sub13503-63010

main13503-88300i1GGEU..GX61198208-198407

sub13503-88301

sub90105-10212

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010iL,2LTE..LX6#198009-198407

main13505-63010i1SU..SX60198208-198407

sub13505-63011

main13505-70020i1GEU..GX6#198009-198208

sub13505-70021

sub91511-60855

main13505-70021i1GEU..GX61198208-198407

sub13505-70012

main13505-88300i1GGEU..GX61198208-198309

sub13505-88301

sub91511-60855

main13505-88301i1GGEU..GX61198309-198407

sub13505-70012

13505ASPRING, TENSION(FOR IDLER)

main90506-12001iL..LX60198009-198101

sub90506-14038

main90506-14034i1GEU..GX6#198009-198407

sub90506-12054

main90506-14038iL,2LTE..LX6#198101-198407

main90506-16047i1GGEU..GX61198210-198407

sub90506-13002

main90506-20039i1SU..SX60198208-198407

main90506-20040i1GGEU..GX61198208-198210

sub90506-16047

13522PPULLEY, PUMP DRIVE SHAFT

main13524-70010i1GEU..GX6#198009-198106

sub13524-70011

main13524-70011i1GEU..GX6#198106-198407

main13524-70030i1GEU..GX61198407-198407

main13524-88300i1GGEU..GX61198208-198407

sub13524-88301

13568BELT, TIMING

main13568-59015iL..LX60198009-198205

sub13568-59016

main13568-59025iL,2LTE..LX6#198205-198407

sub13568-59026

main13568-63020i1SU..SX60198208-198407

sub13568-63022

main13568-70010i1GEU..GX6#198009-198407

sub13568-79055

main13568-70030i1GEU..GX61198407-198407

sub13568-79065

main13568-88300i1GGEU..GX61198208-198407

sub13568-88340

9010510032

main90105-10032

9017908071

main90179-08071

9151160855

main91511-60855

9151160860

main91511-60860

9 parts on this diagram · 4 diagrams in section
