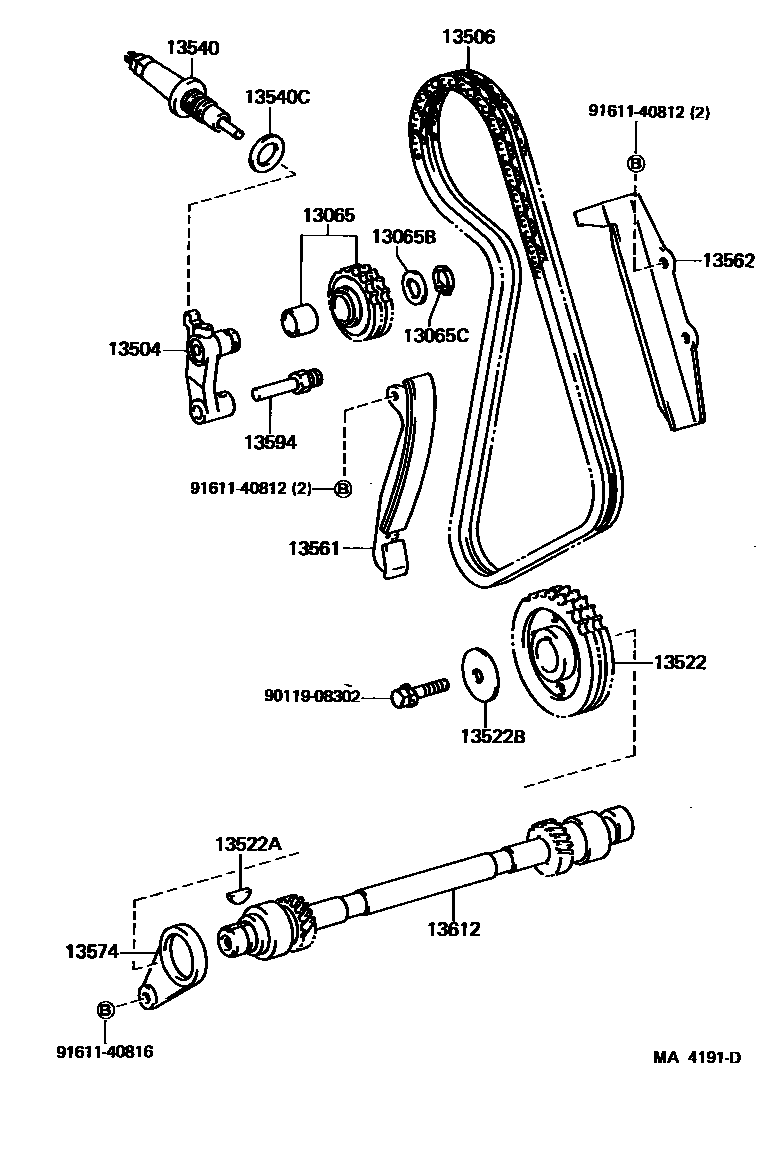

TIMING CHAIN
13065GEAR SUB-ASSY, TENSION
13065BWASHER, TIMING CHAIN TENSION GEAR CLAW
13065CRING, SHAFT SNAP(FOR TENSION GEAR)
13504ARM SUB-ASSY, TENSION
13522GEAR, PUMP DRIVE SHAFT
N=36
N=30
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
13522BWASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)
13540CGASKET(FOR CHAIN TENSIONER)
sub90430-22009
13561DAMPER, CHAIN VIBRATION, NO.1
*30
13574PLATE, PUMP DRIVE SHAFT
13594SHAFT, TENSION GEAR ARM
9011908302
main90119-08302
9161140812
main91611-40812
9161140816
main91611-40816
18 parts on this diagram · 4 diagrams in section
