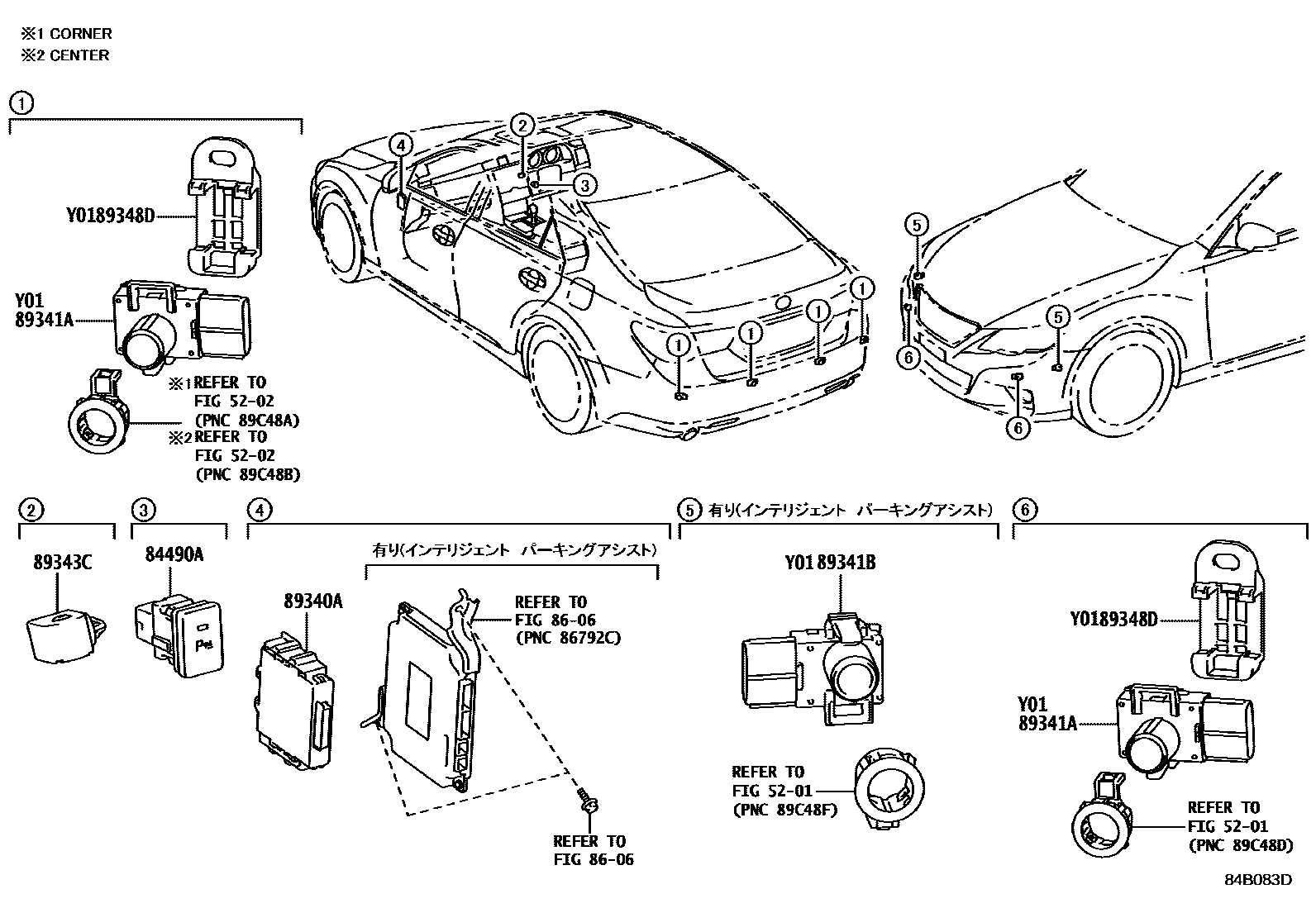

CLEARANCE & BACK SONAR

0001 1 0002 1

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-22010iGRX130,135..PREM201208-201502

main84490-22011iGRX130,135..PREM201503-201611

main84490-22040iGRX13#201611-201912

8606

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-22120iGRX133..PREM201208-201605

main89340-22121iGRX133..PREM201606-201611

main89340-22090iGRX13#200910-201208

main89340-22110iGRX13#201611

89341ASENSOR, ULTRASONIC, NO.1

main89341-33190-D1×6iGRX130,135201208-201611

DK. RED M.M.,3Q3

sub89341-33210

main89341-33190-J6×6iGRX130,135201208-201611

sub89341-33210

main89341-33190-F2×6iGRX130..250G201407-201611

sub89341-33210

main89341-48010-A5×6supersedes 89341-33190-A5iGRX13#200910-201208

sub89341-60030

main89341-48010-B2×6supersedes 89341-33190-B0iGRX13#..250G,350S200910-201208

sub89341-60030

main89341-48010-B8×6supersedes 89341-33190-P0iGRX13#200910-201208

sub89341-60030

main89341-48010-C2×6supersedes 89341-33190-C2iGRX13#200910-201208

sub89341-60030

main89341-48010-D4×6iGRX13#200910-201208

sub89341-60030

main89341-48010-E3×6iGRX13#..250G,350S200910-201208

sub89341-60030

main89341-48010-J5×6iGRX13#..250G,350S201010-201208

sub89341-60030

main89341-60060-A3×6iGRX13#201611

main89341-60060-B4×6iGRX13#201611

main89341-60060-C0×6iGRX13#201611

main89341-60060-C6×6iGRX13#201611

main89341-60060-D1×6iGRX13#201611

main89341-60060-J1×6iGRX13#201611

89341BSENSOR, ULTRASONIC, NO.2

main89341-30060-A0×2iGRX133..PREM200910-201208

main89341-30060-B0×2iGRX130,135201208-201611

main89341-30060-B1×2iGRX130,135201208-201611

main89341-30060-C0×2iGRX130,135201208-201611

main89341-30060-D0×2iGRX133..PREM200910-201208

main89341-30060-D2×2iGRX130,135201208-201611

main89341-30060-E0×2iGRX133..PREM200910-201208

main89341-30060-F1×2iGRX130,135..250G201407-201611

main89341-30060-J1×2iGRX130,135201208-201611

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

main89348-33190×4iGRX13#201611

9 parts on this diagram · 2 diagrams in section
