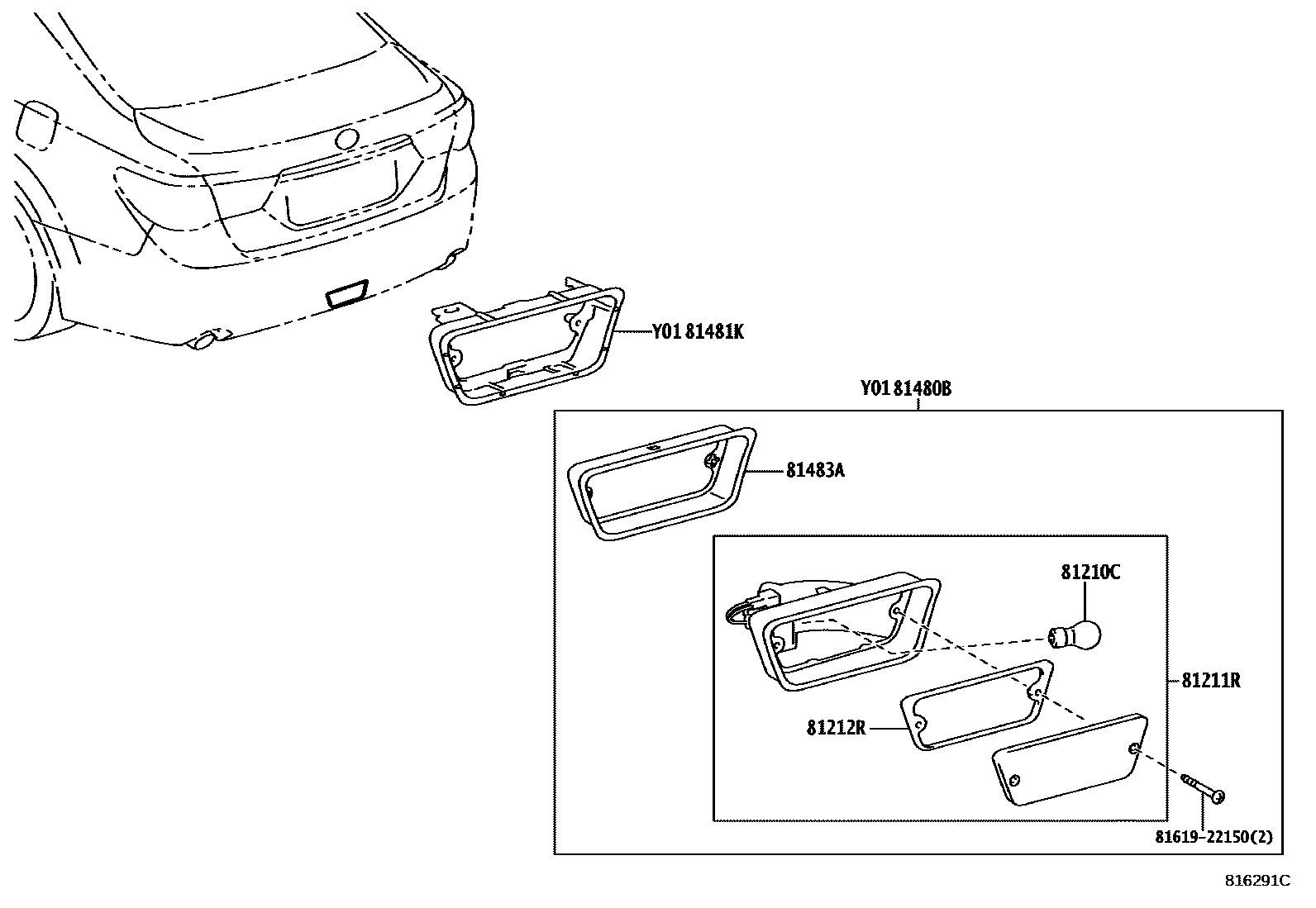

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iGRX13#201208-201611

81211RLENS, REAR FOG LAMP

main81457-28031iGRX13#201208-201611

81212RGASKET, REAR FOG LAMP, NO.1

main81458-28030iGRX13#201208-201611

81480BLAMP ASSY, REAR FOG

main81480-22020-D0iGRX13#201208-201611

81481KBRACKET, REAR FOG LAMP

main81481-22030iGRX13#201208-201611

81483APROTECTOR, FOG LAMP

main81483-22010-D0iGRX13#201208-201611

8161922150

main81619-22150

7 parts on this diagram · 1 diagram in section
