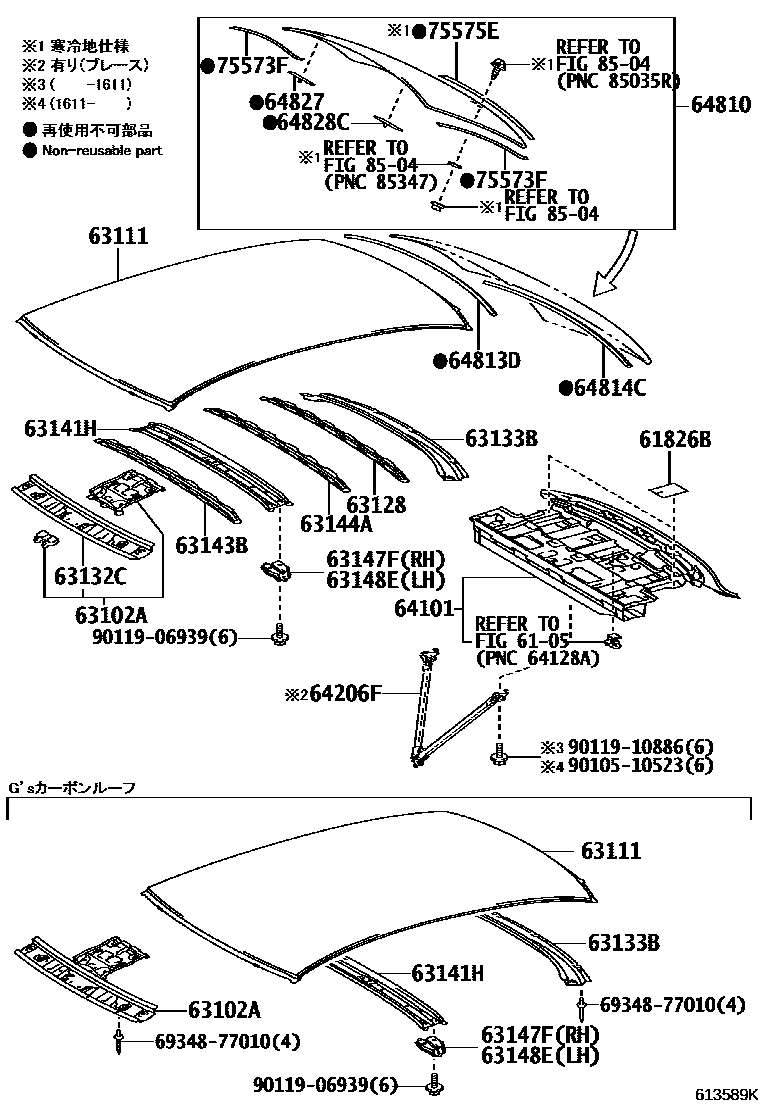

ROOF PANEL & BACK WINDOW GLASS
6105
61826BPLATE, NOISE CONTROL, NO.3
63111PANEL, ROOF
63128REINFORCEMENT, ROOF PANEL, NO.6
63132CPANEL, WINDSHIELD HEADER, INNER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
64206FPANEL SUB-ASSY, ROOM PARTITION
64813DDAM, BACK WINDOW GLASS ADHESIVE
64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER
64827CLIP, BACK WINDOW GLASS, RH
64828CCLIP, BACK WINDOW GLASS, LH
75573FMOULDING, BACK WINDOW, OUTSIDE
75575EMOULDING, BACK WINDOW, OUTSIDE LOWER
8504
6934877010JOINT, ADJUSTING
main69348-77010
9010510523
main90105-10523
9011906939
main90119-06939
9011910886
main90119-10886
26 parts on this diagram · 3 diagrams in section
