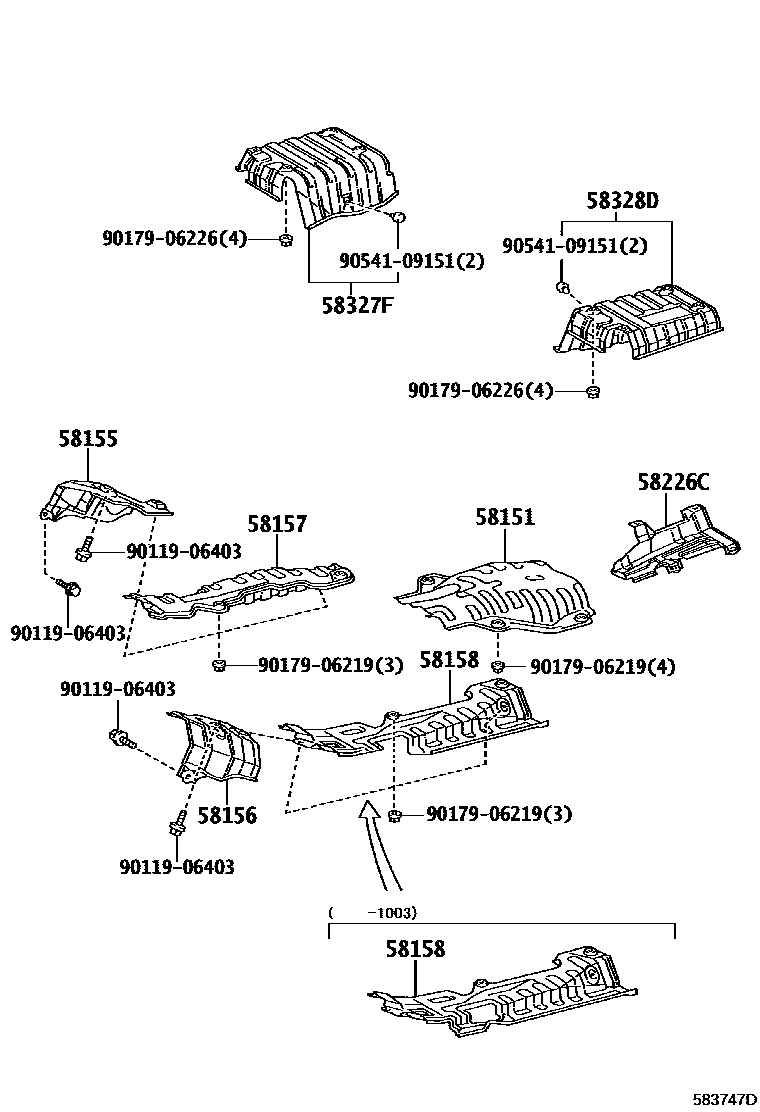

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGRX130,133200910-201611

main58151-30171iGRX135200910-201611

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGRX13#200910-201611

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRX130,133200910-201611

main58156-30090iGRX135200910-201611

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGRX13#200910-201003

sub58157-30072

main58157-30072iGRX13#201004-201110

sub58157-30073

main58157-30073iGRX13#201111-201611

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGRX130,133200910-201003

sub58158-30062

main58158-30062iGRX130,133201004-201201

sub58158-30063

main58158-30063iGRX130,133201202-201611

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30040iGRX13#200910-201611

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30053iGRX13#200910-201611

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30034iGRX13#200910-201611

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

12 parts on this diagram · 2 diagrams in section
