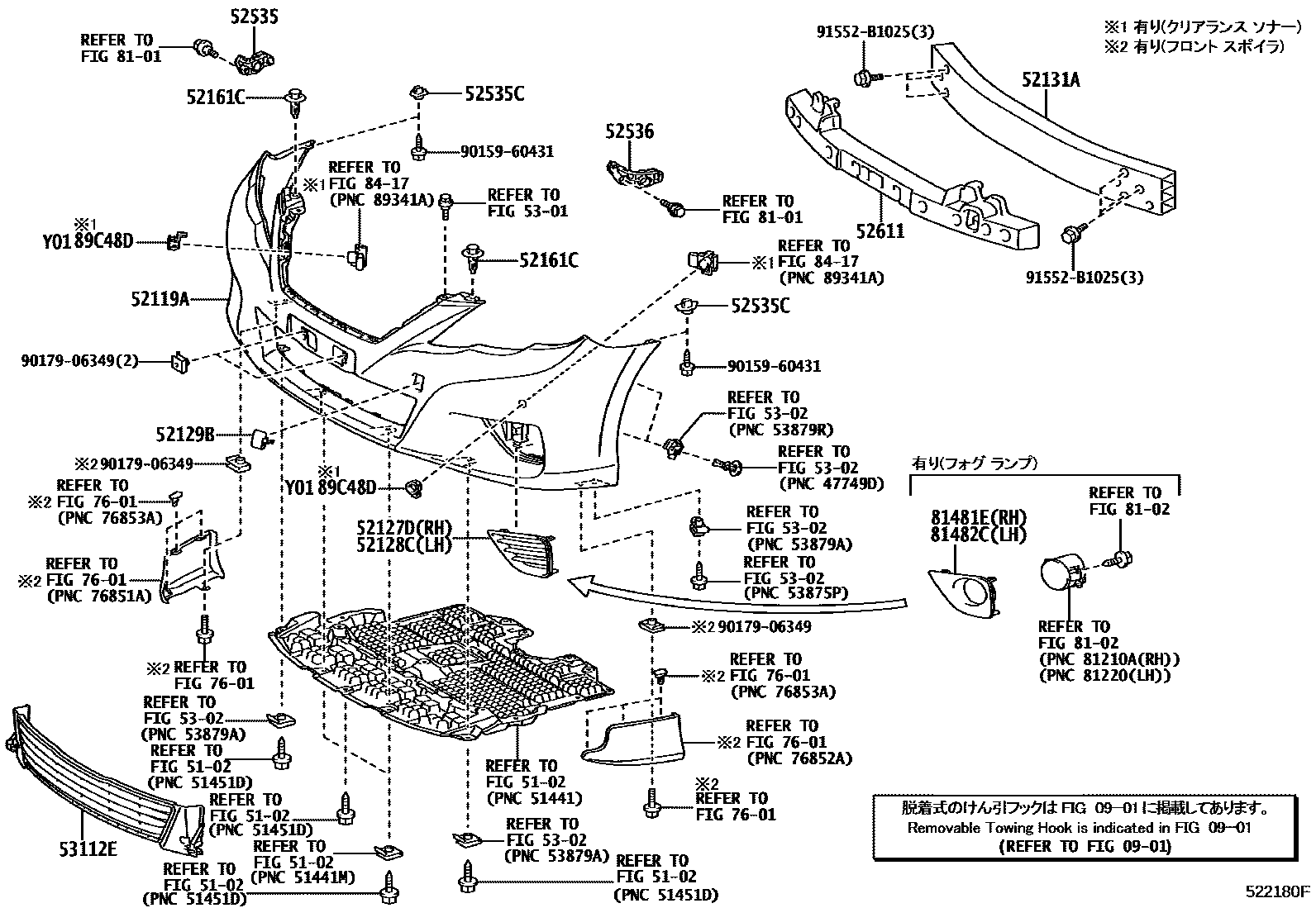

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1G'S OR GR SPORT 0006 1GRMN 0007 1 0008 1GRMN

0901

5102

52119ACOVER, FRONT BUMPER

main52119-22A40-A0iGRX130,135200910-201208

WHITE PEARL CS.,062

sub52119-22966

main52119-22A40-B0iGRX130,135200910-201208

SILVER ME.,1F7

sub52119-22966

main52119-22A40-B1iGRX130,135200910-201208

ICE TITANIUM M.M.,1H4

sub52119-22966

main52119-22A40-C0iGRX130,135200910-201208

BLACK,202

sub52119-22966

main52119-22A40-D0iGRX130,135200910-201208

GINGER RED M.M.,3R6

sub52119-22966

main52119-22A40-E0iGRX130,135200910-201208

BRONZE M.M.,4T3

sub52119-22966

main52119-22A40-J0iGRX130,135201010-201105

DK.BLUE MC.,8S6

sub52119-22966

main52119-22A60-A0iGRX130200910-201208

sub52119-22967

main52119-22A60-A0iGRX130200910-201208

WHITE PEARL CS.,062

sub52119-22967

main52119-22A60-B0iGRX133..350S200910-201208

SILVER ME.,1F7

sub52119-22967

main52119-22A60-B0iGRX133..350S200910-201208

sub52119-22967

main52119-22A60-B1iGRX133..350S200910-201208

ICE TITANIUM M.M.,1H4

sub52119-22967

main52119-22A60-B1iGRX133..350S200910-201208

sub52119-22967

main52119-22A60-C0iGRX130200910-201208

sub52119-22967

main52119-22A60-C0iGRX133..350S200910-201208

BLACK,202

sub52119-22967

main52119-22A60-D0iGRX130200910-201208

GINGER RED M.M.,3R6

sub52119-22967

main52119-22A60-D0iGRX133..350S200910-201208

sub52119-22967

main52119-22A60-E0iGRX133..350S200910-201208

BRONZE M.M.,4T3

sub52119-22967

main52119-22A60-E0iGRX133..350S200910-201208

sub52119-22967

main52119-22A80-A0iGRX133..PREM200910-201208

WHITE PEARL CS.,062

sub52119-22968

main52119-22A80-B0iGRX133..PREM200910-201208

SILVER ME.,1F7

sub52119-22968

main52119-22A80-B1iGRX133..PREM200910-201208

ICE TITANIUM M.M.,1H4

sub52119-22968

main52119-22A80-C0iGRX133..PREM200910-201208

BLACK,202

sub52119-22968

main52119-22A80-D0iGRX133..PREM200910-201208

GINGER RED M.M.,3R6

sub52119-22968

main52119-22A80-E0iGRX133..PREM200910-201208

BRONZE M.M.,4T3

sub52119-22968

main52119-22B10-A0iGRX130,135..250G201208-201611

WHITE PEARL CS.,062

sub52119-22972

main52119-22B10-B0iGRX130,135..250G201208-201611

SILVER ME.,1F7

sub52119-22972

main52119-22B10-B1iGRX130,135..250G201208-201611

ICE TITANIUM M.M.,1H4

sub52119-22972

main52119-22B10-C0iGRX130,135..250G201208-201611

BLACK,202

sub52119-22972

main52119-22B10-D0iGRX130,135..250G201208-201611

DK. RED M.M.,3Q3

sub52119-22972

main52119-22B10-F0iGRX130,135..250G201407-201611

BRILLIANT YELLOW,5B7

sub52119-22972

main52119-22B10-J0iGRX133..350S201208-201611

DK.BLUE MC.,8T5

sub52119-22972

main52119-22B40-A0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-A0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-A0iGRX130..250G201208-201611

WHITE PEARL CS.,062

sub52119-22974

main52119-22B40-A0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-A0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-B0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-B0iGRX130,135..PREM201208-201611

SILVER ME.,1F7

sub52119-22974

main52119-22B40-B0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-B0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-B0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-B1iGRX130..250G201208-201611

ICE TITANIUM M.M.,1H4

sub52119-22974

main52119-22B40-B1iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-B1iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-B1iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-B1iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-C0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-C0iGRX133..350S201208-201611

BLACK,202

sub52119-22974

main52119-22B40-C0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-C0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-C0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-D0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-D0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-D0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-D0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-D0iGRX130..250G201208-201611

DK. RED M.M.,3Q3

sub52119-22974

main52119-22B40-J0iGRX130..250G201208-201406

sub52119-22974

main52119-22B40-J0iGRX133..350S201208-201611

DK.BLUE MC.,8T5

sub52119-22974

main52119-22B40-J0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-J0iGRX133..350S201208-201406

sub52119-22974

main52119-22B40-J0iGRX133..350S201208-201406

sub52119-22974

main52119-22B50-A0iGRX133..PREM201208-201611

WHITE PEARL CS.,062

sub52119-22975

main52119-22B50-B0iGRX133..PREM201208-201611

SILVER ME.,1F7

sub52119-22975

main52119-22B50-B1iGRX133..PREM201208-201611

ICE TITANIUM M.M.,1H4

sub52119-22975

main52119-22B50-C0iGRX133..PREM201208-201611

BLACK,202

sub52119-22975

main52119-22B50-D0iGRX133..PREM201208-201611

DK. RED M.M.,3Q3

sub52119-22975

main52119-22B50-J0iGRX133..PREM201208-201611

DK.BLUE MC.,8T5

sub52119-22975

main52119-22B90-A0iGRX13#201611

sub52119-22978

main52119-22B90-A0iGRX13#201611

WHITE PEARL CS.,062

sub52119-22978

main52119-22B90-B0iGRX13#201611

SILVER ME.,1F7

sub52119-22978

main52119-22B90-B0iGRX13#201611

sub52119-22978

main52119-22B90-C0iGRX13#201611

sub52119-22978

main52119-22B90-C0iGRX13#201611

BLACK,202

sub52119-22978

main52119-22B90-C1iGRX13#201611

PRECIOUS BLACK,219

sub52119-22978

main52119-22B90-C1iGRX13#201611

sub52119-22978

main52119-22B90-D0iGRX13#201611

DK. RED M.M.,3Q3

sub52119-22978

main52119-22B90-D0iGRX13#201611

sub52119-22978

main52119-22B90-J0iGRX13#201611

TRUE BLUE M.M.,8W1

sub52119-22978

main52119-22B90-J0iGRX13#201611

sub52119-22978

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-22120iGRX130,135200910-201208

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-22090iGRX130,135200910-201208

52129BCOVER, FRONT BUMPER, LOWER

main52129-22050-A0iGRX13#..250G,350S200910-201208

WHITE PEARL CS.,062

sub52129-22903

main52129-22050-B0iGRX13#..250G,350S200910-201208

SILVER ME.,1F7

sub52129-22903

main52129-22050-B1iGRX13#..250G,350S200910-201208

ICE TITANIUM M.M.,1H4

sub52129-22903

main52129-22050-C0iGRX13#..250G,350S200910-201208

BLACK,202

sub52129-22903

main52129-22050-D0iGRX13#..250G,350S200910-201208

GINGER RED M.M.,3R6

sub52129-22903

main52129-22050-E0iGRX13#..250G,350S200910-201208

BRONZE M.M.,4T3

sub52129-22903

main52129-22050-J0iGRX130,135201010-201105

DK.BLUE MC.,8S6

sub52129-22903

main52129-22060-A0iGRX133..PREM200910-201208

WHITE PEARL CS.,062

sub52129-22906

main52129-22060-B0iGRX133..PREM200910-201208

SILVER ME.,1F7

sub52129-22906

main52129-22060-B1iGRX133..PREM200910-201208

ICE TITANIUM M.M.,1H4

sub52129-22906

main52129-22060-C0iGRX133..PREM200910-201208

BLACK,202

sub52129-22906

main52129-22060-D0iGRX133..PREM200910-201208

GINGER RED M.M.,3R6

sub52129-22906

main52129-22060-E0iGRX133..PREM200910-201208

BRONZE M.M.,4T3

sub52129-22906

main52129-22070-A0iGRX13#201208-201611

WHITE PEARL CS.,062

sub52129-22904

main52129-22070-B0iGRX13#201208-201611

SILVER ME.,1F7

sub52129-22904

main52129-22070-B1iGRX13#201208-201611

ICE TITANIUM M.M.,1H4

sub52129-22904

main52129-22070-C0iGRX13#201208-201611

BLACK,202

sub52129-22904

main52129-22070-D0iGRX13#201208-201611

DK. RED M.M.,3Q3

sub52129-22904

main52129-22070-F0iGRX130,135..250G201407-201611

BRILLIANT YELLOW,5B7

sub52129-22904

main52129-22070-J0iGRX13#201208-201611

DK.BLUE MC.,8T5

sub52129-22904

main52129-22090iGRX13#201611

52131RETAINER, FRONT BUMPER SIDE, RH

main53193-22030

main52131-22210

main52131-22211

52131AREINFORCEMENT, FRONT BUMPER

main52131-22210iGRX13#200910-201611

sub52131-22211

main52131-22211iGRX13#201611

52161CPIECE, FRONT BUMPER

main52161-16010iGRX13#200910-201611

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-22100iGRX13#200910-201611

main52535-22100iGRX13#201611

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGRX13#200910-201611

main52535-50060iGRX13#201611

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-22080iGRX13#200910-201611

main52536-22080iGRX13#201611

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22330iGRX13#200910-201611

main52611-22340iGRX13#201611

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-22120iGRX13#..250G,350S200910-201208

main53112-22150iGRX133..PREM200910-201208

main53112-22160iGRX130,135..250G201208-201611

main53112-22170iGRX130..250G201208-201611

main53112-22170iGRX133..350S201208-201611

main53112-22170iGRX133..350S201208-201611

main53112-22170iGRX133..350S201208-201611

main53112-22170iGRX133..350S201208-201611

main53112-22180iGRX13#..PREM201208-201611

main53112-22210iGRX130,135..250G201611

main53112-22220iGRX13#..250S,25RDS,35RDS201611

main53112-22220iGRX13#..250S,25RDS,35RDS201611

7601

8101

8102

81481ECOVER, FOG LAMP, RH

main52127-22150iGRX133..350S200910-201208

main52127-22150iGRX133..350S200910-201208

main52127-22150iGRX133..350S200910-201208

main52127-22150iGRX133..350S200910-201208

main52127-22170iGRX13#..250G,350S201208-201611

main52127-22190iGRX13#..PREM201208-201611

81482CCOVER, FOG LAMP, LH

main52128-22100iGRX133..350S200910-201208

main52128-22100iGRX133..350S200910-201208

main52128-22100iGRX133..350S200910-201208

main52128-22100iGRX133..350S200910-201208

main52128-22120iGRX13#..250G,350S201208-201611

main52128-22140iGRX13#..PREM201208-201611

8417

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-33100-A4iGRX133..PREM201208-201611

WHITE PEARL CS.,062

sub89348-33100

main89348-33100-A4iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-A4iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-B0iGRX133..PREM201208-201611

SILVER ME.,1F7

sub89348-33100

main89348-33100-B0iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-B0iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-B9iGRX133..PREM201208-201611

ICE TITANIUM M.M.,1H4

sub89348-33100

main89348-33100-B9iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-B9iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-C4iGRX133..PREM201208-201611

BLACK,202

sub89348-33100

main89348-33100-C4iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-C4iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-D2iGRX133..PREM201208-201611

DK. RED M.M.,3Q3

sub89348-33100

main89348-33100-D2iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-D2iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-J5iGRX133..PREM201208-201611

DK.BLUE MC.,8T5

sub89348-33100

main89348-33100-J5iGRX133..PREM201208-201611

sub89348-33100

main89348-33100-J5iGRX133..PREM201208-201611

sub89348-33100

9015960431

main90159-60431

9017906349

main90179-06349

91552B1025

main91552-B1025

26 parts on this diagram · 8 diagrams in section
