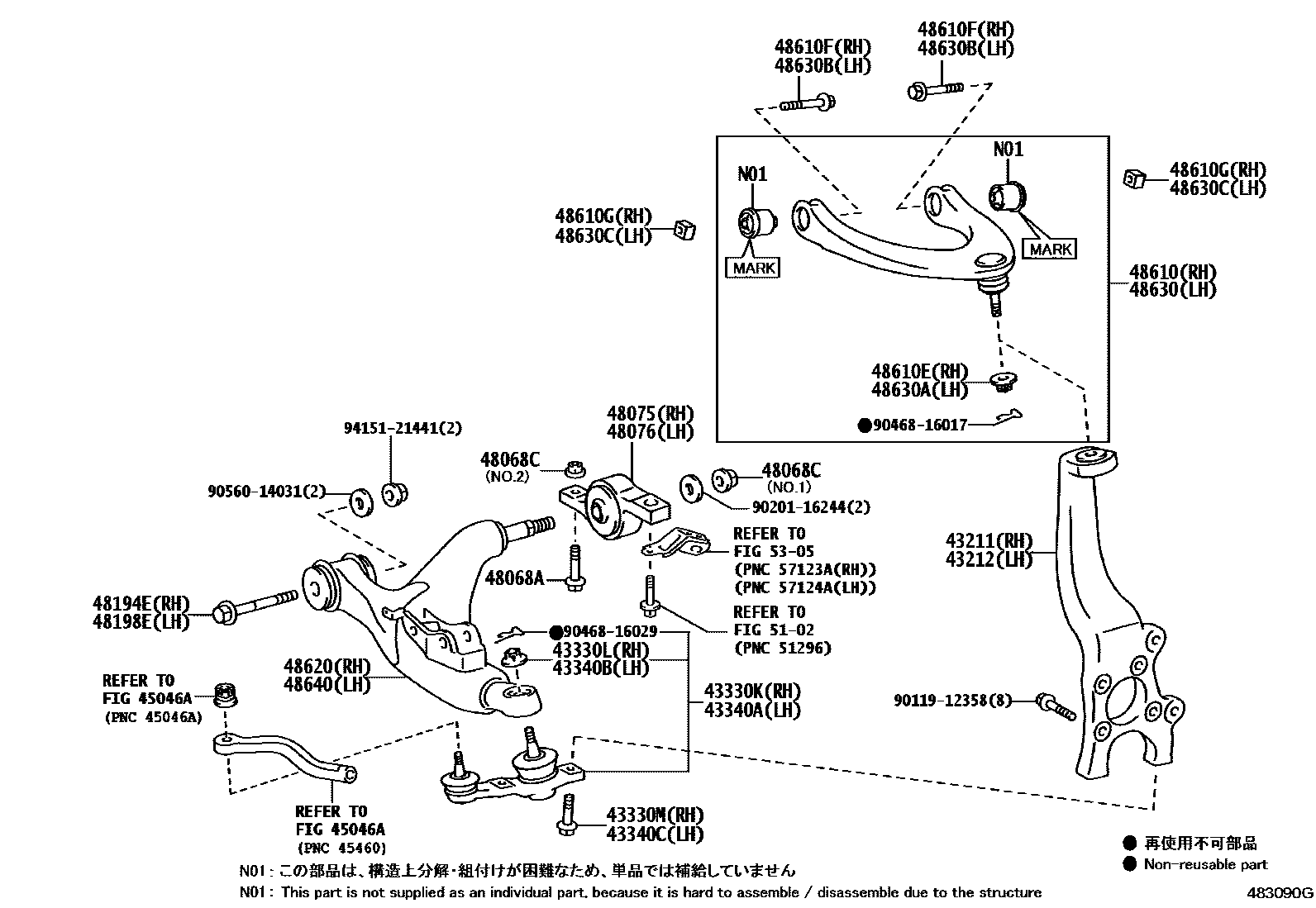

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30010iGRX130,133200910-201611

main43201-30021iGRX135200910-201611

43212KNUCKLE, STEERING, LH

main43202-30020iGRX130,133200910-201611

main43202-30031iGRX135200910-201611

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39625iGRX130,133200910-201611

main43330-39635iGRX135200910-201611

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iGRX130,133200910-201611

main90171-14014iGRX135200910-201611

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iGRX130,133200910-201611

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGRX135200910-201611

main43340-39505iGRX130,133200910-201611

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iGRX130,133200910-201611

main90171-14014iGRX135200910-201611

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iGRX130,133200910-201611

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main91552-L1265iGRX130,133200910-201611

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iGRX130,133200910-201611

main94151-21601iGRX130,133200910-201611

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-30030iGRX13#200910-201611

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-30030iGRX13#200910-201611

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main90105-14166iGRX130,133200910-201611

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main90105-14166iGRX130,133200910-201611

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39165iGRX130,133200910-201208

main48610-39165iGRX130,133201208-201509

main48610-39175iGRX135200910-201509

main48610-39205iGRX130,133201509-201611

main48610-39205iGRX130,133201611

main48610-39215iGRX135201509-201611

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iGRX13#200910-201611

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iGRX13#200910-201611

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iGRX13#200910-201611

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30290iGRX130,133200910-201208

main48620-30310iGRX135200910-201611

main48620-30340iGRX130,133201208-201611

main48620-53020iGRX130,133..250G,350S201210-201509

main48620-53020iGRX133201903

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39175iGRX135200910-201509

main48610-39215iGRX135201509-201611

main48630-39105iGRX130,133200910-201208

main48630-39105iGRX130,133201208-201509

main48630-39125iGRX130,133201611

main48630-39125iGRX130,133201509-201611

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iGRX13#200910-201611

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iGRX13#200910-201611

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iGRX13#200910-201611

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30290iGRX130,133200910-201208

main48640-30310iGRX135200910-201611

main48640-30340iGRX130,133201208-201611

main48640-53020iGRX133201903

main48640-53020iGRX130,133..250G,350S201210-201509

5102

5305

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

9056014031

main90560-14031

9415121441

main94151-21441

32 parts on this diagram · 2 diagrams in section
