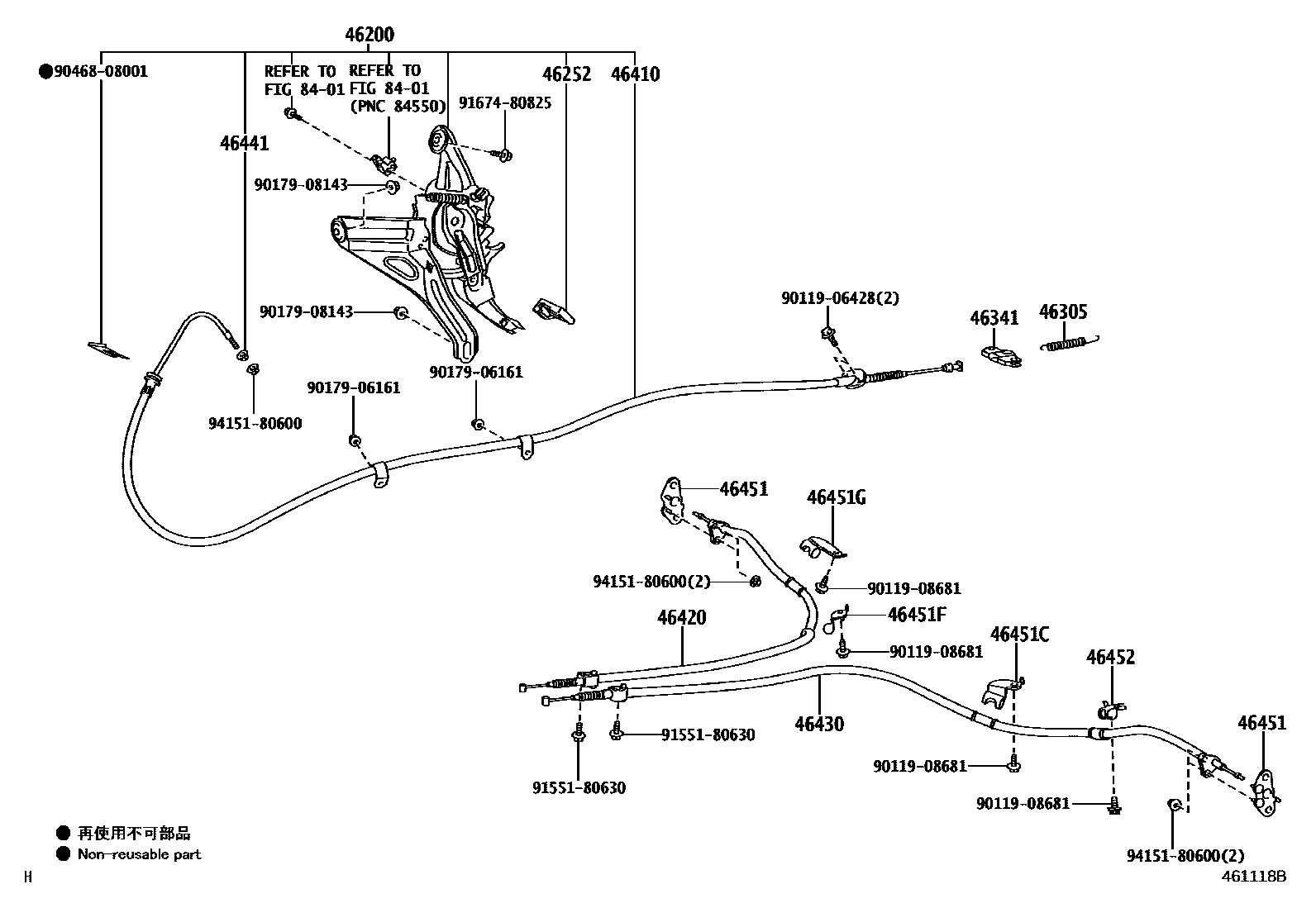

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1GRMN 6MT 0005 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30440iGRX13#200910-201108

sub46210-22360

sub46410-30780

sub46441-12010

sub90468-08001

main46210-22360iGRX13#201109-201401

sub46250-30010

main46250-30010iGRX13#201402-201611

46252PAD, PARKING PEDAL

main46252-22010iGRX13#200910-201403

main46252-47010iGRX13#201404-201611

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRX13#200910-201611

46341EQUALIZER, PARKING BRAKE

main46341-22060iGRX13#200910-201611

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22310iGRX133..350S201505-201510

main46410-22310iGRX133201903

main46410-30780iGRX13#200910-201401

sub46410-30781

main46410-30781iGRX13#201402-201611

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30580iGRX13#200910-201007

sub46420-30581

sub46601-30231

sub46602-30231

main46420-30581iGRX13#201007-201611

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-30580iGRX13#200910-201007

sub46420-30581

sub46601-30231

sub46602-30231

main46420-30581iGRX13#201007-201611

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRX133..350S201505-201510

main46441-12010iGRX13#200910-201110

main46441-12010iGRX133201903

main90177-06003iGRX13#201403-201611

main90182-06008iGRX13#201110-201403

46451BRACKET, CABLE SUPPORT

main46451-50050iGRX13#200910-201611

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRX13#200910-201611

46451FBRACKET, CABLE SUPPORT

main46451-30170iGRX130,135200910-201611

main46451-30210iGRX133200910-201611

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRX13#200910-201611

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRX13#200910-201611

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017908143

main90179-08143

9046808001

main90468-08001

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

22 parts on this diagram · 4 diagrams in section
