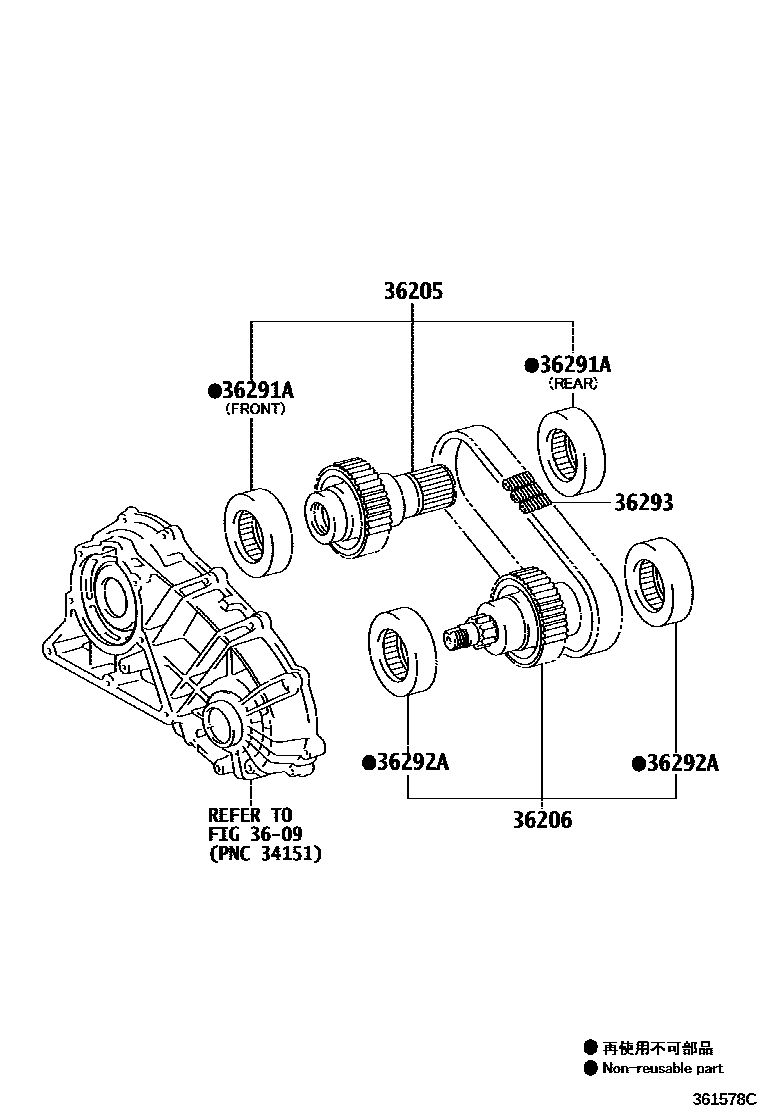

TRANSFER GEAR

3609

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030iGRX135200910-201611

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30030iGRX135200910-201611

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iGRX135200910-201611

main90363-55004iGRX135200910-201611

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004iGRX135200910-201611

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020iGRX135200910-201611

6 parts on this diagram · 1 diagram in section
