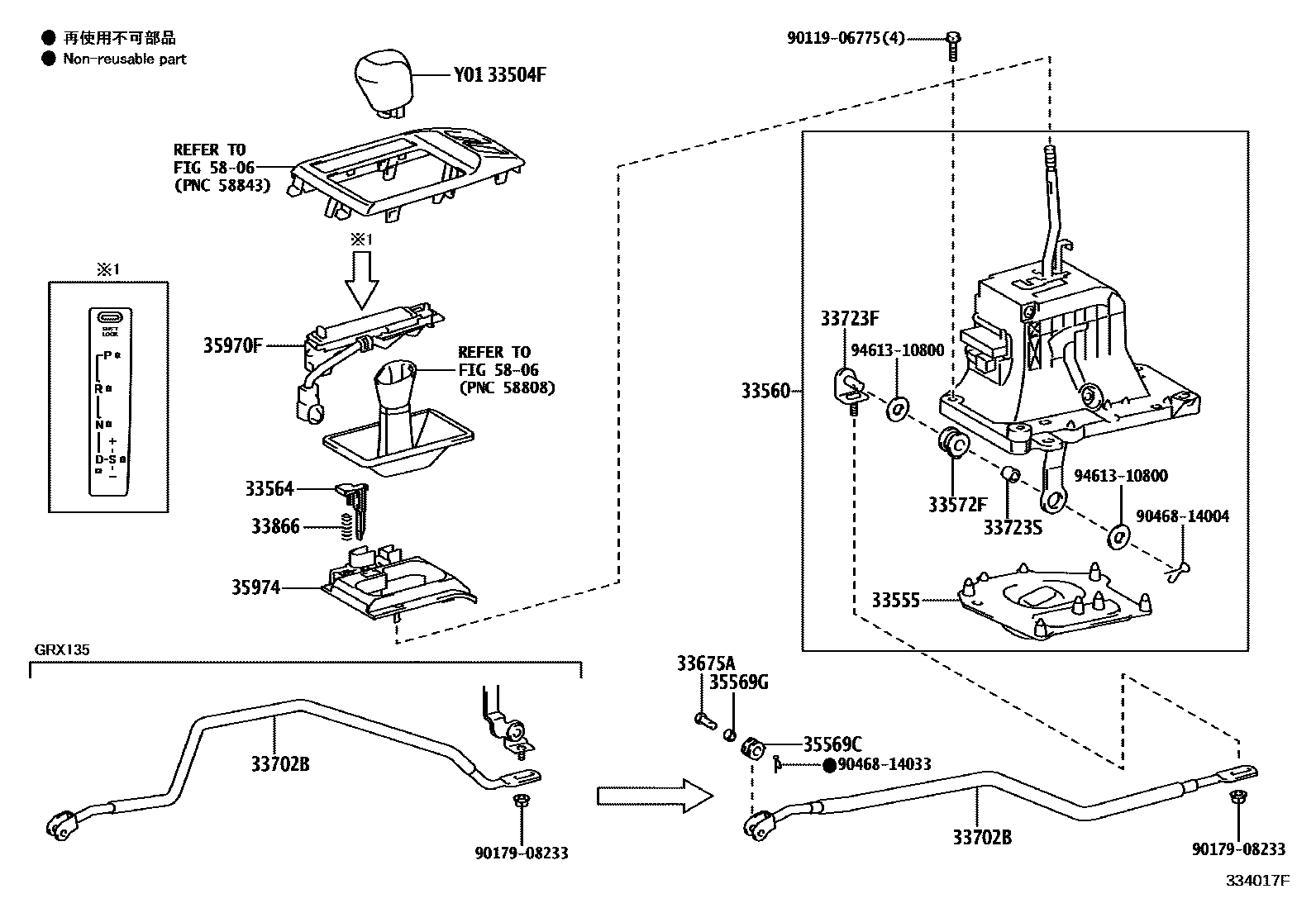

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BROWN,TRIM0#
IVORY,TRIM2#
33560UNIT ASSY, SHIFT LOCK CONTROL
33564LINK, SHIFT LOCK RELEASE, NO.1
33572FBUSH, CONTROL SHAFT LOWER
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33866SPRING, SHIFT LOCK RELEASE
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35970FHOUSING ASSY, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
5806
9011906775
main90119-06775
9017908233
main90179-08233
9046814004
main90468-14004
9046814033
main90468-14033
9461310800
main94613-10800
20 parts on this diagram · 2 diagrams in section
