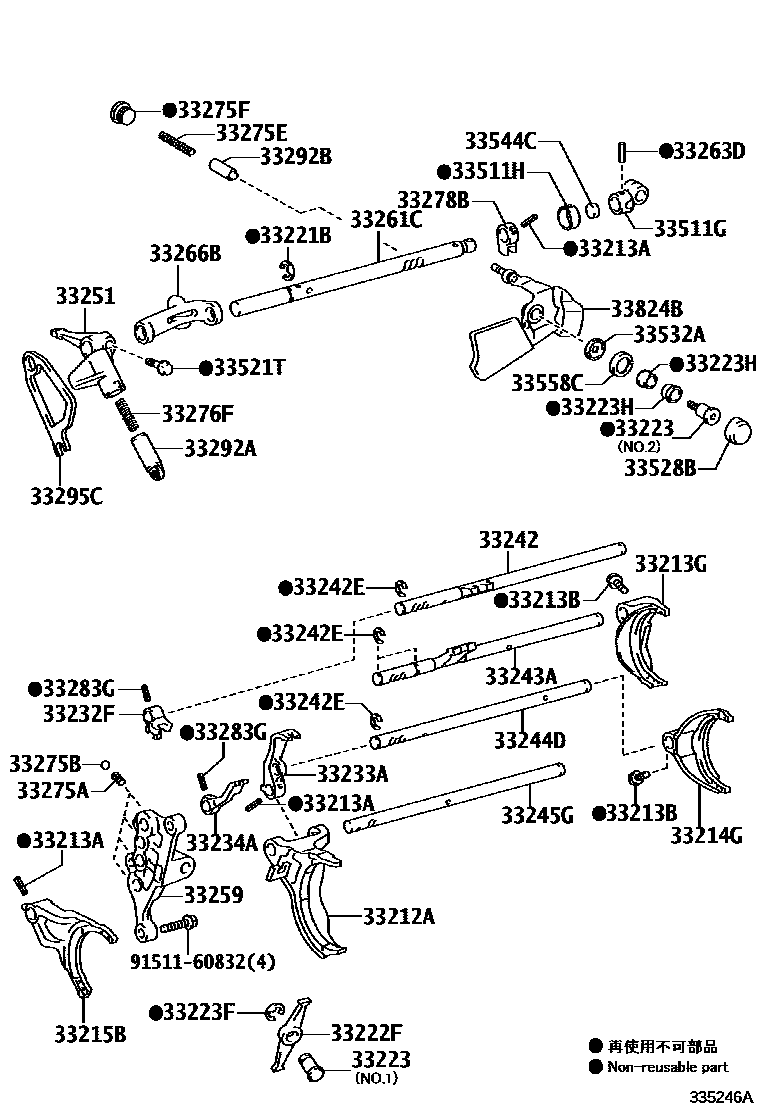

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33212AFORK, GEAR SHIFT, NO.1

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

33213BBOLT(FOR SHIFT FORK SET)

33213GFORK, GEAR SHIFT, NO.2

33214GFORK, GEAR SHIFT, NO.3

33215BFORK, GEAR SHIFT, NO.4

33221BRING, E(FOR REVERSE SHIFT ARM)

33222FARM, SHIFT

33223PIVOT, SHIFT ARM

main90386-18006

main33223-53020

main33223-35040

main96160-01200

33223FRING, E(FOR SHIFT FORK LOCK PLATE PIVOT)

33223HCOLLAR(FOR PIVOT, SHIFT ARM)

33232FHEAD, GEAR SHIFT, NO.1

33233AHEAD, GEAR SHIFT, NO.2

33234AHEAD, GEAR SHIFT, NO.3

33242SHAFT, GEAR SHIFT FORK, NO.1

main90520-12003

main33242-53050

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

33243ASHAFT, GEAR SHIFT FORK, NO.2

33244DSHAFT, GEAR SHIFT FORK, NO.3

33245GSHAFT, GEAR SHIFT FORK, NO.4

33251LEVER, SHIFT & SELECT

main33251-53060

33259BRACKET, SHIFT INTERLOCK

main33259-53010

33261CSHAFT, SHIFT & SELECT LEVER

33263DPIN (FOR SHIFT LEVER SHAFT)

33266BPIN, SHIFT INTERLOCK, NO.3

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

33275BBALL, SHAFT DETENT

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

33275FPLUG (FOR SHIFT DETENT BALL)

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

33278BSUPPORT, SHIFT & SELECT LEVER SHAFT

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

33292APIN, LOCK BALL

33292BPIN, LOCK BALL NO.2

33295CCAM, SHIFT & SELECT

33511GSHAFT, CONTROL

33511HCOLLAR (FOR CONTROL SHAFT)

33521TBOLT (FOR SHIFT LEVER HOUSING)

33528BCOVER, CONTROL SHAFT

33532APLATE, DUST BOOT

33544CDAMPER, SHIFT LEVER

33558CSEAL, SHIFT LEVER BOOT DUST

33824BWEIGHT, TRANSMISSION CONTROL CABLE

9151160832

main91511-60832

43 parts on this diagram · 1 diagram in section
