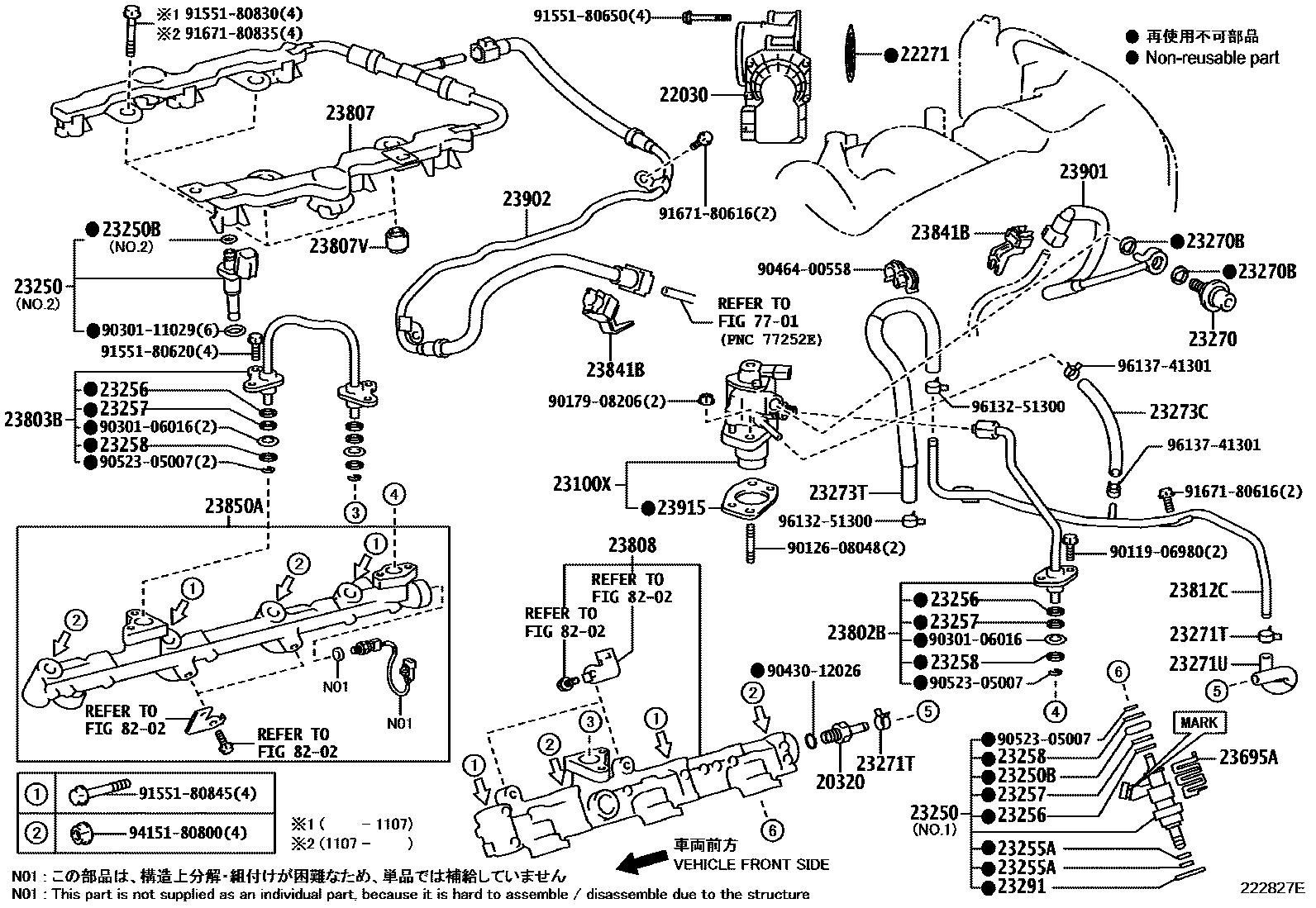

FUEL INJECTION SYSTEM

0001 1 0002 1

20320VALVE ASSY, FUEL RELIEF

main20320-31010i2GRFSE,4GRFSE..GRX13#200910-201611

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GRX130,135200910-201611

main22030-31040i2GRFSE..GRX133200910-201611

22271GASKET, THROTTLE BODY

main22271-31020i2GRFSE..GRX133200910-201611

main22271-31030i4GRFSE..GRX130,135200910-201611

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39618i2GRFSE,4GRFSE..GRX13#200910-201108

sub23100-39645

main23100-39645i2GRFSE,4GRFSE..GRX13#201108-201912

sub23100-39646

23250INJECTOR ASSY, FUEL

main23209-31070i2GRFSE..GRX133200910-201611

main23209-39057-A0i4GRFSE..GRX130,135200910-201611

MARK BLACK

main23209-39057-B0i4GRFSE..GRX130,135200910-201611

MARK BROWN

main23209-39155-A0i2GRFSE..GRX133200910-201611

main23209-39155-B0i2GRFSE..GRX133200910-201611

main23209-39155-C0i2GRFSE..GRX133200910-201611

main23209-39155-D0i2GRFSE..GRX133200910-201611

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017i2GRFSE..GRX133200910-201611

main90301-06018i2GRFSE..GRX133200910-201611

23255ASEAL, FUEL INJECTOR

main23255-31010i2GRFSE,4GRFSE..GRX13#200910-201611

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i2GRFSE,4GRFSE..GRX13#200910-201611

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i2GRFSE,4GRFSE..GRX13#200910-201611

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i2GRFSE,4GRFSE..GRX13#200910-201611

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i2GRFSE,4GRFSE..GRX13#200910-201405

sub23207-31021

main23207-31021i2GRFSE,4GRFSE..GRX13#201405-201611

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010i2GRFSE,4GRFSE..GRX13#200910-201611

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501i2GRFSE,4GRFSE..GRX13#200910-201611

23271UHOSE, FUEL, NO.1

main23271-31060i2GRFSE,4GRFSE..GRX13#200910-201611

23273CHOSE, FUEL, NO.2

main23273-31050i2GRFSE,4GRFSE..GRX13#200910-201611

23273THOSE, FUEL, NO.3

main23273-31040i2GRFSE,4GRFSE..GRX13#201504-201611

main23273-31080i2GRFSE,4GRFSE..GRX13#200910-201503

23291INSULATOR, INJECTOR VIBRATION

main23291-31011i2GRFSE,4GRFSE..GRX13#200910-201611

23695ACLAMP, NOZZLE HOLDER

main23695-31010i2GRFSE,4GRFSE..GRX13#200910-201611

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31043i2GRFSE,4GRFSE..GRX13#200910-201611

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31013i2GRFSE,4GRFSE..GRX13#200910-201611

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31061i2GRFSE..GRX133200910-201111

sub23807-31062

main23807-31062i2GRFSE..GRX133201111-201208

sub23807-31190

main23807-31062i2GRFSE..GRX133201208-201411

sub23807-31190

main23807-31150i2GRFSE..GRX133201411-201611

main23807-31150i2GRFSE..GRX133201611

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08023i2GRFSE..GRX133200910-201611

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31010i4GRFSE..GRX130,135200910-201611

main23808-31020i2GRFSE..GRX133200910-201008

sub23808-31070

main23808-31070i2GRFSE..GRX133201008-201611

23812CPIPE, FUEL, NO.2

main23812-31020i2GRFSE,4GRFSE..GRX13#200910-201110

sub23812-31050

main23812-31050i2GRFSE,4GRFSE..GRX13#201110-201611

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i4GRFSE..GRX130,135200910-201611

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i2GRFSE..GRX133200910-201611

main23850-31020i4GRFSE..GRX130,135200910-201611

23901TUBE SUB-ASSY, FUEL

main23901-31011i2GRFSE,4GRFSE..GRX13#200910-201411

main23901-31310i2GRFSE,4GRFSE..GRX13#201411-201611

23902TUBE SUB-ASSY, FUEL

main23902-31011i2GRFSE..GRX133200910-201111

sub23902-31012

main23902-31012i2GRFSE..GRX133201111-201611

23915INSULATOR, FUEL PUMP

main23915-46011i2GRFSE,4GRFSE..GRX13#200910-201611

7701

8202

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9030111029

main90301-11029

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180830

main91551-80830

9155180845

main91551-80845

9167180616

main91671-80616

9167180835

main91671-80835

9415180800

main94151-80800

9613251300

main96132-51300

9613741301

main96137-41301

48 parts on this diagram · 2 diagrams in section
