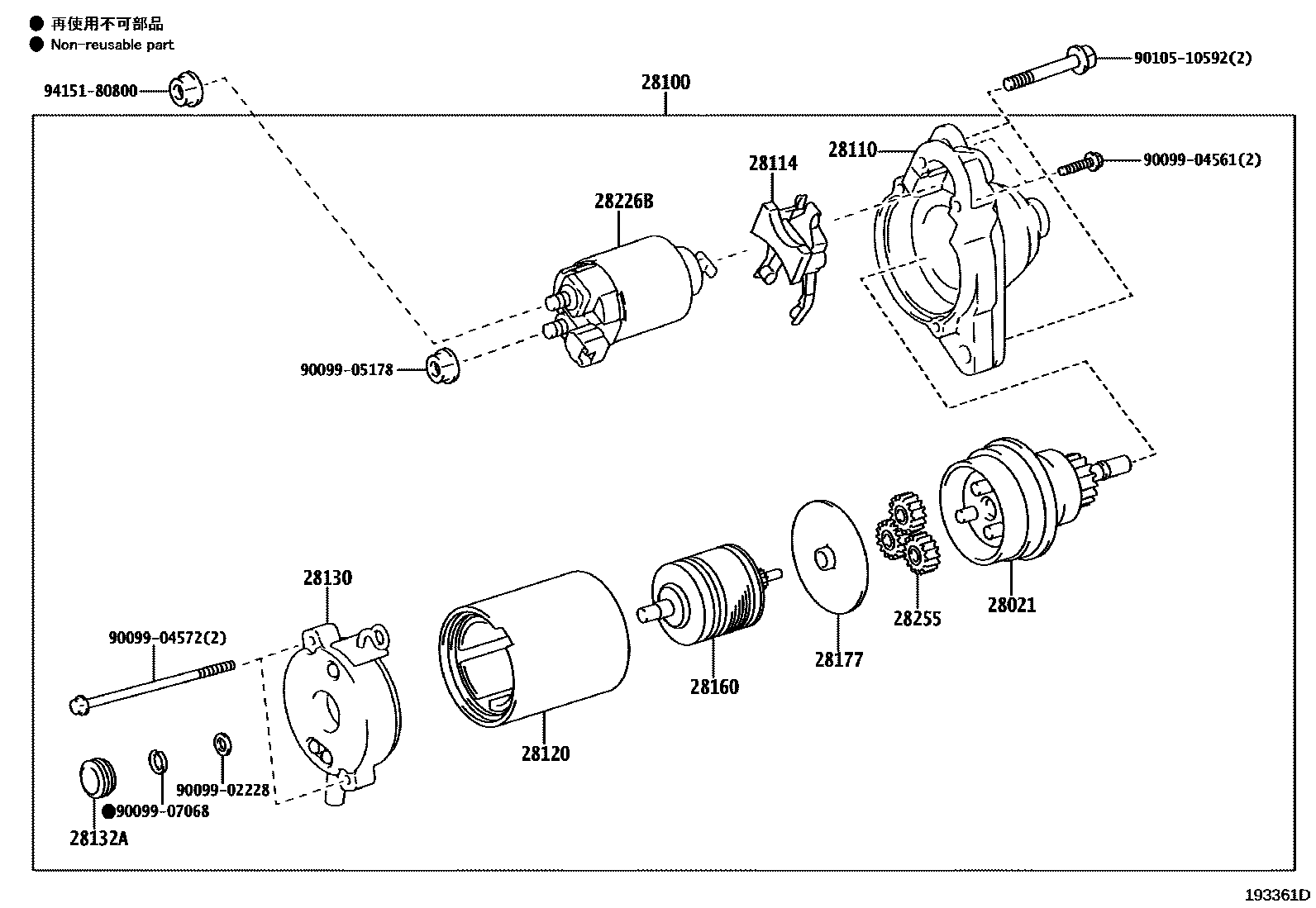

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRFSE,4GRFSE..GRX13#200910-201611

28100STARTER ASSY

main28100-31080i2GRFSE,4GRFSE..GRX13#200910-200911

sub28100-31081

main28100-31081i2GRFSE,4GRFSE..GRX13#200912-201611

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRFSE,4GRFSE..GRX13#200910-201611

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRFSE,4GRFSE..GRX13#200910-201611

28120YOKE ASSY, STARTER

main28120-28080i2GRFSE,4GRFSE..GRX13#200910-201611

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31040i2GRFSE,4GRFSE..GRX13#200910-201108

main28130-31080i2GRFSE,4GRFSE..GRX13#201108-201611

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFSE,4GRFSE..GRX13#200910-201611

28160ARMATURE ASSY, STARTER

main28160-21060i2GRFSE,4GRFSE..GRX13#200910-201611

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFSE,4GRFSE..GRX13#200910-201611

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRFSE,4GRFSE..GRX13#200910-201611

28255GEAR, PLANET

main28255-28040i2GRFSE,4GRFSE..GRX13#200910-201611

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
