STANDARD TOOL

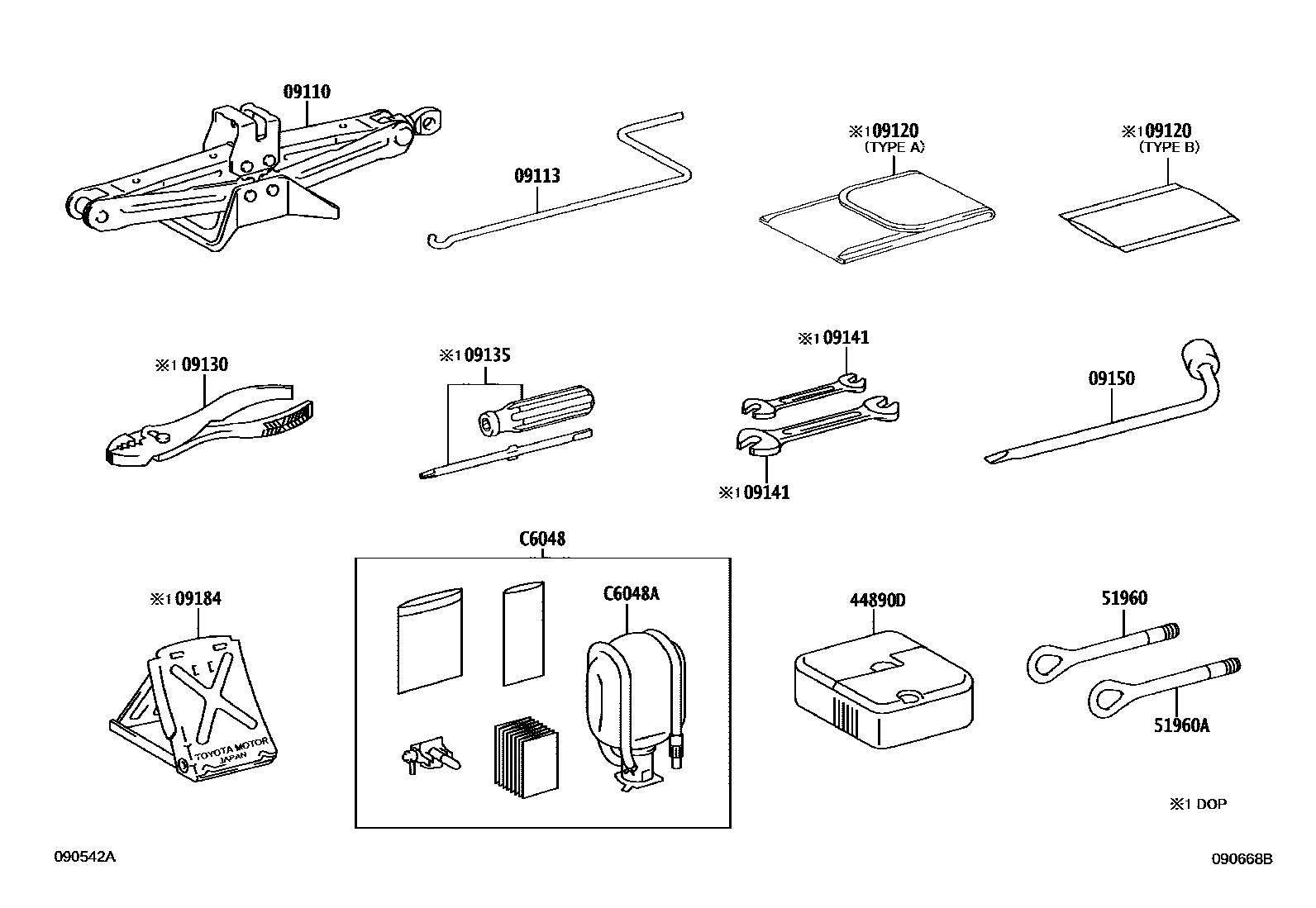

Parts diagram

09110JACK ASSY

main09111-33030i201010-201601

main09111-50051i200910-201009

main09111-76010i201602-201611

09113HANDLE, JACK

main09113-13040i200910-201611

09120BAG, TOOL

main09120-24020i200910-201611

main09120-28040i200910-201611

09130PLIERS

main99913-11500i200910-201611

09135DRIVER, SCREW

main99915-10700i200910-201611

09141SPANNER

main99914-10810i200910-201611

main99914-11214i200910-201611

09150WRENCH, HUB NUT BOX

main09150-40010i200910-201611

09184STOPPER, WHEEL

main09184-00010i200910-201611

44890DCOMPRESSOR ASSY, AIR

main44890-52021i201709

main44890-52021i201709

main44890-52021i201903

main44890-52021i201210-201611

51960HOOK ASSY, FRONT

main51961-22050i201611

main51961-53010i200910-201611

51960AHOOK ASSY, REAR

main51961-22050i201611

main51961-53010i200910-201611

C6048REPAIR SET, TIRE

main42683-47021i201210-201611

main42683-47021i201709

main42683-47021i201903

C6048ASEALANT, REPAIR TIRE

mainC604847051i201210-201611

mainC604847051i201709-201912

mainC604847051i201709-201912

mainC604847051i201903-201912

13 parts on this diagram · 1 diagram in section
