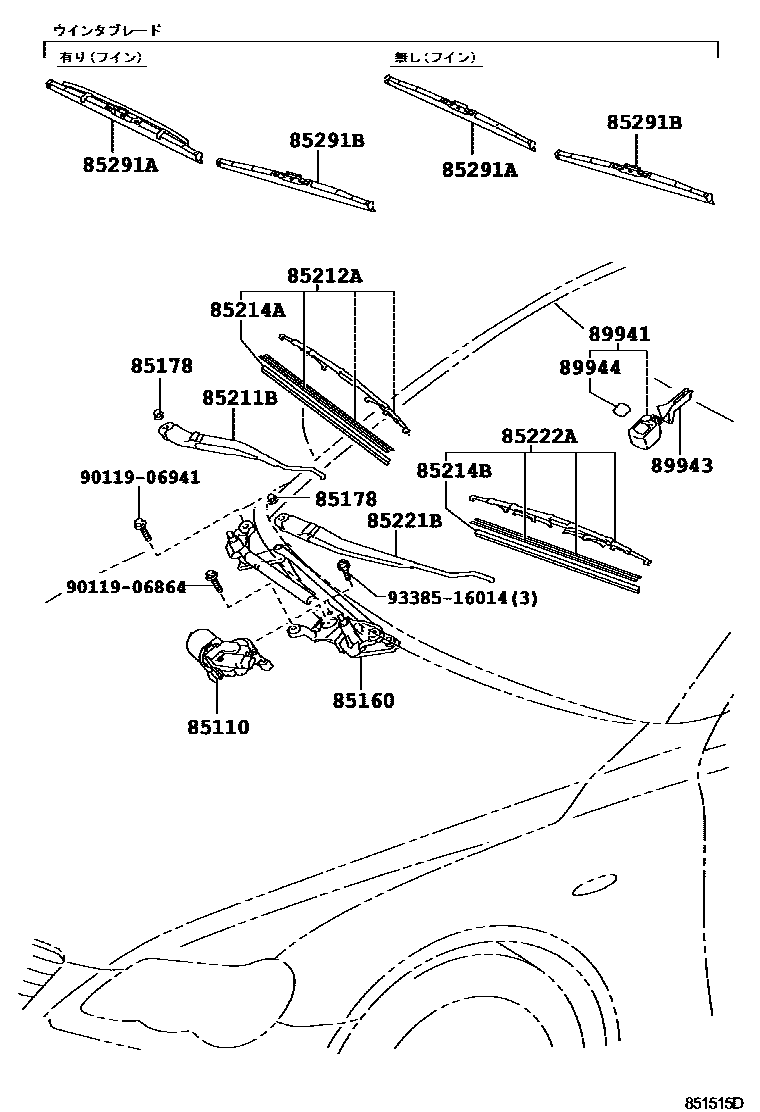

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22610iGRX12#200411-200610

main85110-22611iGRX12#200611

85160LINK ASSY, WINDSHIELD WIPER

main85150-22590supersedes 85150-22580iGRX12#200610

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iGRX12#200411-200610

85211BARM, FRONT WIPER, RH

main85211-22490supersedes 85211-22480iGRX12#200411-200610

85212ABLADE, FR WIPER, RH

main85212-46010iGRX12#200610

85214ARUBBER, WIPER, RH

main85214-48010iGRX12#200411-200610

85214BRUBBER, WIPER, LH

main85214-24050iGRX12#200411-200509

main85214-24051iGRX12#200509-200610

85221BARM, FRONT WIPER, LH

main85221-22390supersedes 85221-22380iGRX12#200411-200610

85222ABLADE, FR WIPER, LH

main85222-48120iGRX12#200411-200508

main85222-48121iGRX12#200509-200610

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060iGRX12#200411-200610

89941SENSOR, RAIN

main89941-33010iGRX121200411-200610

main89941-42010iGRX121200610

89943COVER, RAIN SENSOR

main89943-22020iGRX121200411-200610

main89943-22030iGRX121200610

89944TAPE, RAIN SENSOR

main89944-33010iGRX121200411-200610

main89944-42010iGRX121200610

9011906864

main90119-06864

9011906941

main90119-06941

9338516014

main93385-16014

17 parts on this diagram · 1 diagram in section
