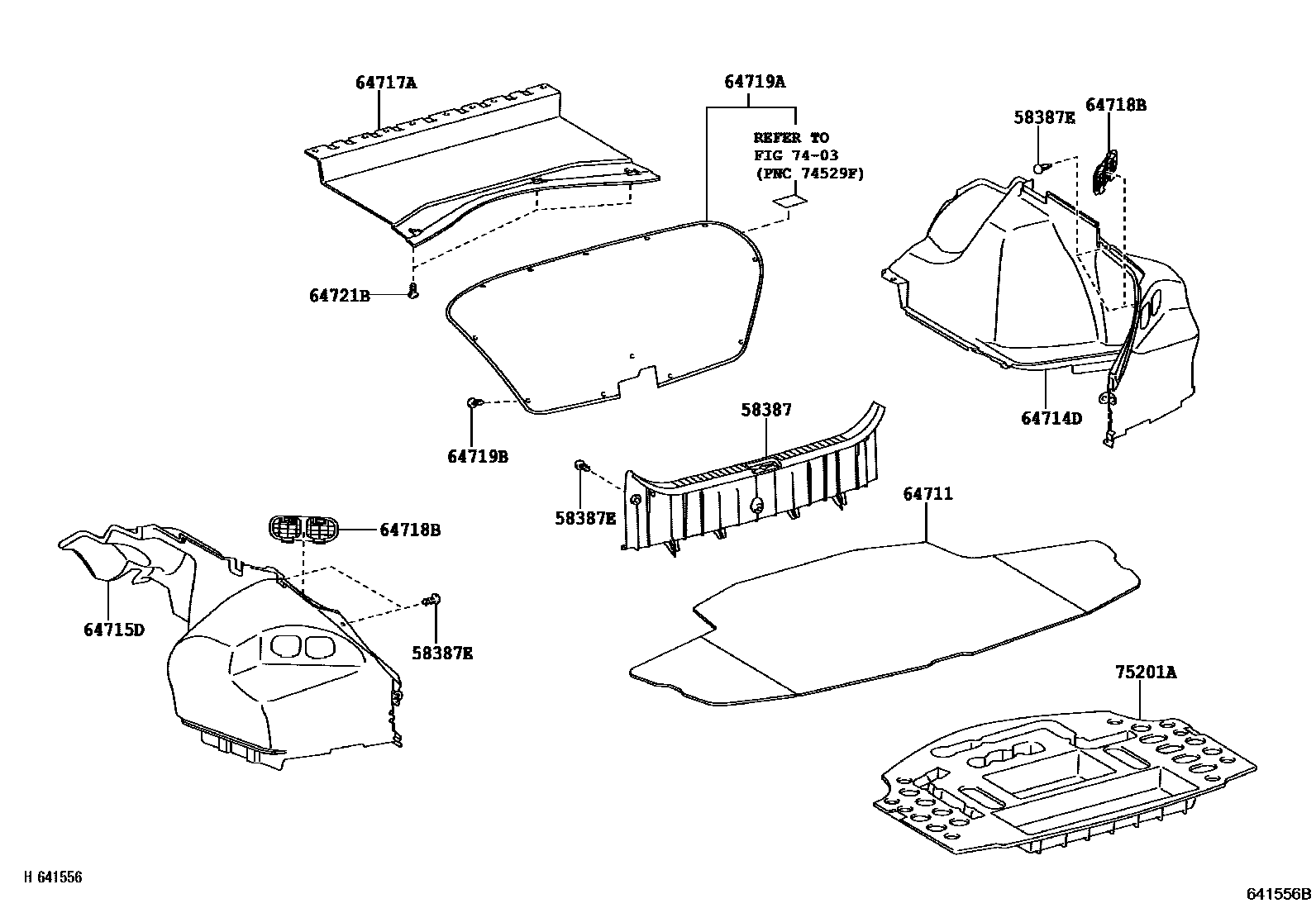

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,4#
BLACK,TRIM0#,2#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64711MAT, LUGGAGE COMPARTMENT FLOOR
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,4#
BLACK,TRIM0#,2#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,4#
BLACK,TRIM0#,2#,4#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
7403
75201ABOX, TOOL
12 parts on this diagram · 2 diagrams in section
