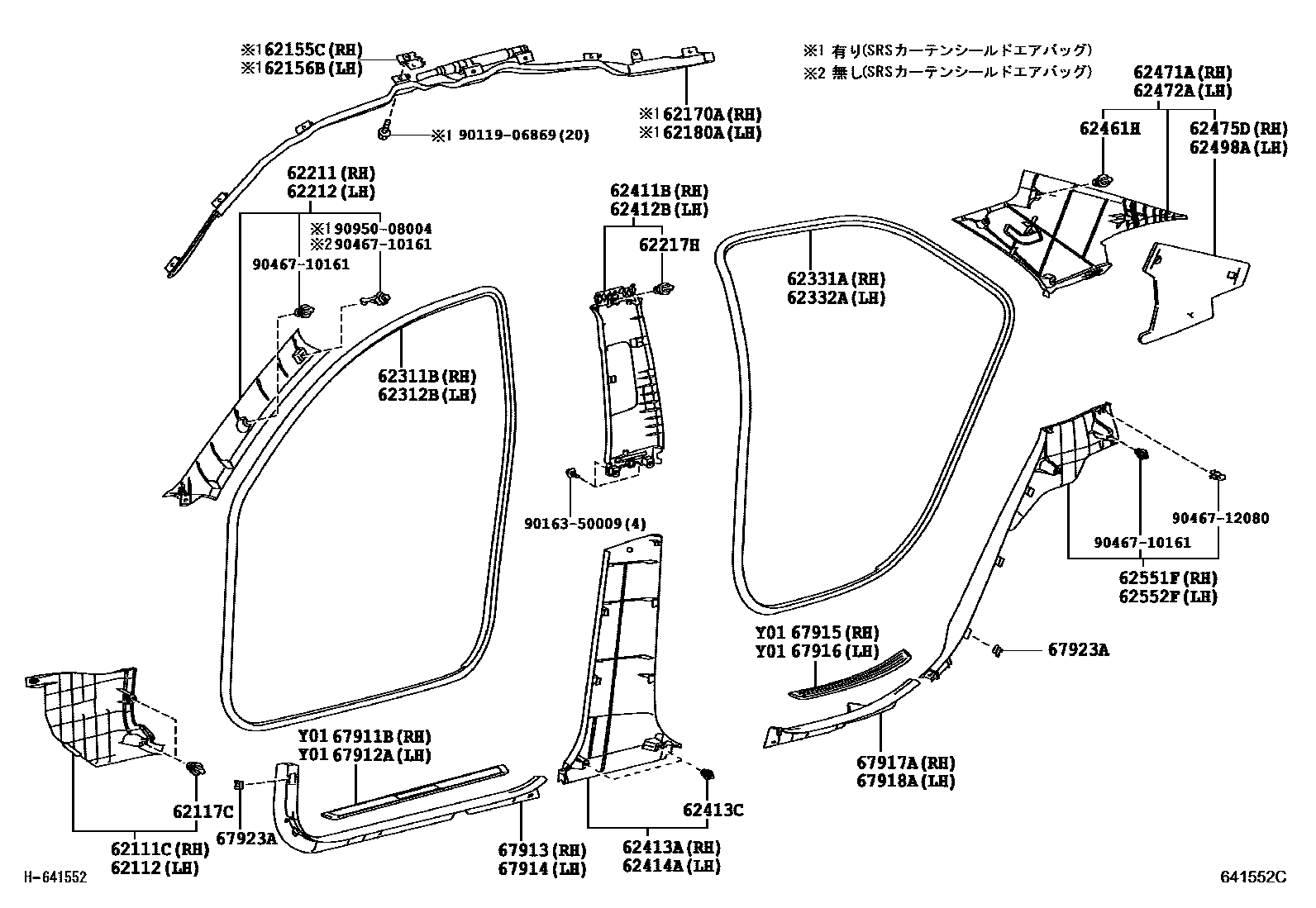

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-22160-A0iGRX12#200610-200909

IVORY,TRIM0#

main62111-22160-C0iGRX120,121..250G,300G200610-200909

BLACK,TRIM2#

main62111-22160-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-22190-A0iGRX12#200411-200610

IVORY,TRIM0#

main62112-22190-C0iGRX120,121..250G,300GP200411-200610

BLACK,TRIM2#

main62112-22190-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161×4iGRX12#200610

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-22060iGRX12#..250G,300G200610

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-22050iGRX12#..250G,300G200610

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-22040iGRX12#..250G,300G200411-200610

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-22040iGRX12#..250G,300G200411-200610

62211GARNISH, FRONT PILLAR, RH

main62211-22400-A0iGRX12#..250G,300G200411-200501

main62211-22400-B1iGRX121..300GP200411-200501

LT.GRAY,TRIM2#,4#

main62211-22401-A0supersedes 62211-22391-A0iGRX12#..250G,300G200610-200909

main62211-22401-B1supersedes 62211-22391-B1iGRX121..300GP200501-200610

LT.GRAY,TRIM2#,4#

62212GARNISH, FRONT PILLAR, LH

main62212-22410-A0iGRX12#..250G,300G200411-200501

main62212-22410-B1iGRX121..300GP200411-200501

LT.GRAY,TRIM2#,4#

main62212-22411-A0supersedes 62212-22401-A0iGRX12#..250G,300G200501-200610

main62212-22411-B1supersedes 62212-22401-B1iGRX121..300GP200501-200610

LT.GRAY,TRIM2#,4#

62217HCLIP, CENTER PILLER GARNISH

main62217-13010×2iGRX12#200610

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-22150-A0iGRX12#200610-200909

IVORY,TRIM0#

main62311-22150-C0iGRX120,121..250G,300GP200411-200610

BLACK,TRIM2#

main62311-22150-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-22150-A0iGRX12#200411-200610

IVORY,TRIM0#

main62312-22150-C0iGRX120,121..250G,300GP200411-200610

BLACK,TRIM2#

main62312-22150-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-22150-A0iGRX12#200610-200909

IVORY,TRIM0#

main62331-22150-C0iGRX120,121..250G,300G200610-200909

BLACK,TRIM2#

main62331-22150-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-22150-A0iGRX12#200610-200909

IVORY,TRIM0#

main62332-22150-C0iGRX120,121..250G,300GP200411-200610

BLACK,TRIM2#

main62332-22150-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22390-A0iGRX12#200411-200610

IVORY,TRIM0#

main62411-22390-B1iGRX120,121..250G,300GP200411-200610

LT.GRAY,TRIM2#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22410-A0iGRX12#200411-200610

IVORY,TRIM0#

main62412-22410-B1iGRX121,125..250G,300GP200610-200909

LT.GRAY,TRIM2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22150-A0iGRX12#200411-200610

IVORY,TRIM0#

main62413-22150-C0iGRX120,121..250G,300GP200411-200610

BLACK,TRIM2#

main62413-22150-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iGRX12#200610

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22150-A0iGRX12#200411-200610

IVORY,TRIM0#

main62414-22150-C0iGRX120,121..250G,300G200610-200909

BLACK,TRIM2#

main62414-22150-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10161×6iGRX12#200411-200610

62471AGARNISH, ROOF SIDE, INNER RH

main62471-22410-A0supersedes 62471-22400-A0iGRX12#..250G,300G200610-200909

main62471-22410-B1supersedes 62471-22400-B1iGRX121..300GP200411-200610

LT.GRAY,TRIM2#,4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-22400-A0supersedes 62472-22390-A0iGRX12#..250G,300G200610-200909

main62472-22400-B1supersedes 62472-22390-B1iGRX121..300GP200610-200909

LT.GRAY,TRIM4#

62475DPAD, ROOF SIDE INNER GARNISH, RH

main62475-22220iGRX12#200411-200610

62498APAD, ROOF SIDE INNER GARNISH, LH

main62498-22130iGRX12#200411-200610

62551FGARNISH, REAR SEAT SIDE, RH

main62551-22070-A0iGRX12#200610-200909

IVORY,TRIM0#

main62551-22070-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

main62551-22070-C0iGRX120,121..250G,300GP200411-200610

62552FGARNISH, REAR SEAT SIDE, LH

main62552-22090-A0iGRX12#200610-200909

IVORY,TRIM0#

main62552-22090-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

main62552-22090-C0iGRX120,121..250G,300GP200411-200610

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-22130iGRX12#200411-200610

main67910-22030iGRX120,121..250G,300GP200411-200610

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-22130iGRX12#200610

main67910-22030iGRX120,121..250G,300GP200411-200610

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22140-A0iGRX12#200610-200909

IVORY,TRIM0#

main67913-22140-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

main67913-22140-C0iGRX120,121..250G,300GP200411-200610

67914PLATE, FRONT DOOR SCUFF, LH

main67914-22130-A0iGRX12#200411-200610

IVORY,TRIM0#

main67914-22130-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

main67914-22130-C0iGRX120,121..250G,300G200610-200909

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-22130iGRX12#200610

main67930-22030iGRX120,121..250G,300GP200411-200610

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-22130iGRX12#200411-200610

main67940-22030iGRX120,121..250G,300GP200411-200610

67917APLATE, REAR DOOR SCUFF, RH

main67917-22130-A0iGRX12#200411-200610

IVORY,TRIM0#

main67917-22130-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

main67917-22130-C0iGRX120,121..250G,300G200610-200909

67918APLATE, REAR DOOR SCUFF, LH

main67918-22130-A0iGRX12#200411-200610

IVORY,TRIM0#

main67918-22130-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

main67918-22130-C0iGRX120,121..250G,300G200610-200909

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×4iGRX12#200411-200610

9011906869

main90119-06869

9016350009

main90163-50009

9046710161

main90467-10161

9046712080

main90467-12080

9095008004

main90950-08004

40 parts on this diagram · 1 diagram in section
