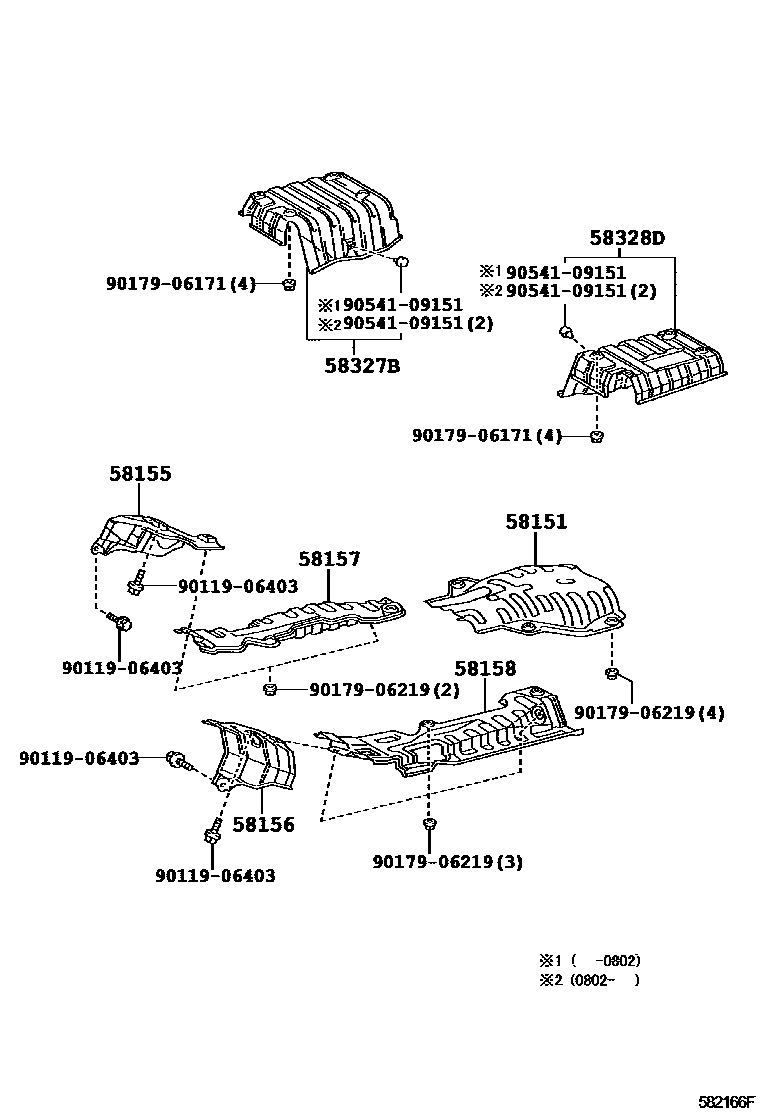

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGRX120,121200411-200610

main58151-30140iGRX125200411-200610

main58151-30171iGRX125200610

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGRX12#200411-200610

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRX120,121200411-200610

main58156-30090iGRX125200411-200610

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30070iGRX12#200411-200412

sub58157-30071

main58157-30071iGRX12#200412-200610

sub58157-30072

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30060iGRX120,121200411-200412

sub58158-30061

main58158-30061iGRX120,121200412-200610

sub58158-30062

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30052iGRX12#200411-200801

main58327-30053iGRX12#200802

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30032iGRX12#200411-200504

sub58328-30033

main58328-30033iGRX12#200505-200801

main58328-30034iGRX12#200802

9011906403

main90119-06403

9017906171

main90179-06171

9017906219

main90179-06219

9054109151

main90541-09151

11 parts on this diagram · 2 diagrams in section
