RADIATOR GRILLE

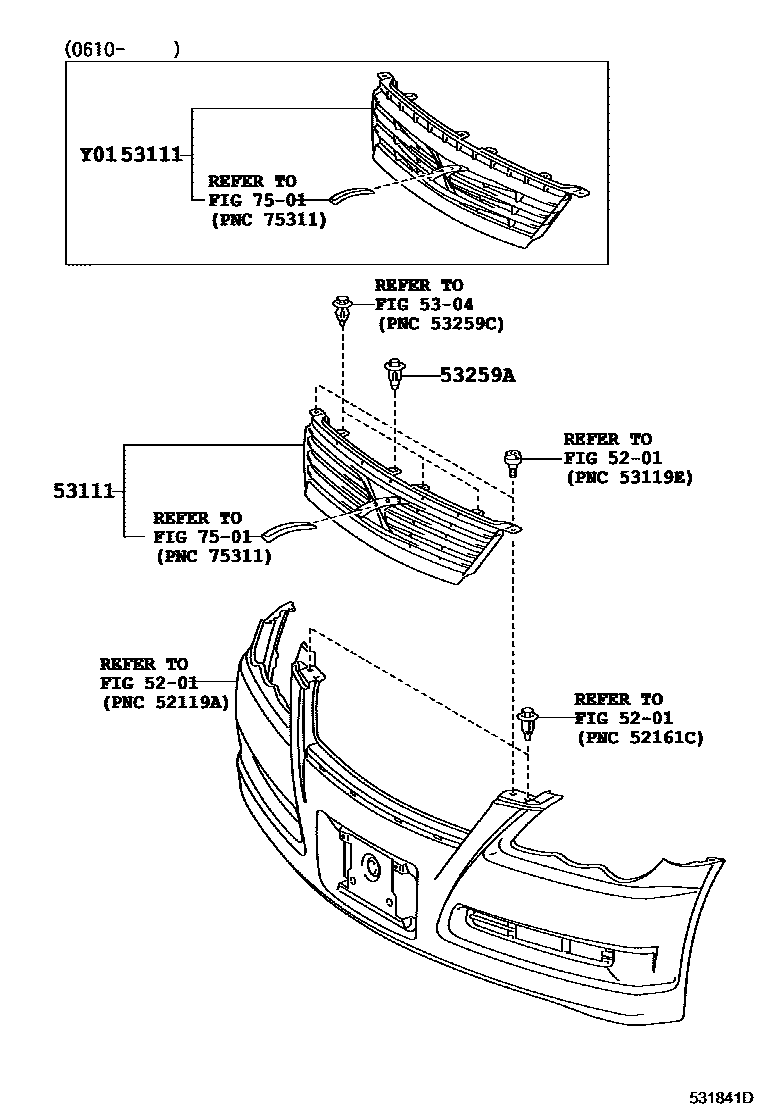

Parts diagram

5201

5304

53111GRILLE, RADIATOR

main53101-22630i200610-200808

main53101-22650supersedes 53101-22600i200808-200909

main53101-22640i200610-200808

main53101-22660i200808-200909

53259ACLIP, RADIATOR SUPPORT TO FRAME SEAL

main53259-48010i200411-200610

main90467-07211i200709-200909

7501

5 parts on this diagram · 1 diagram in section
