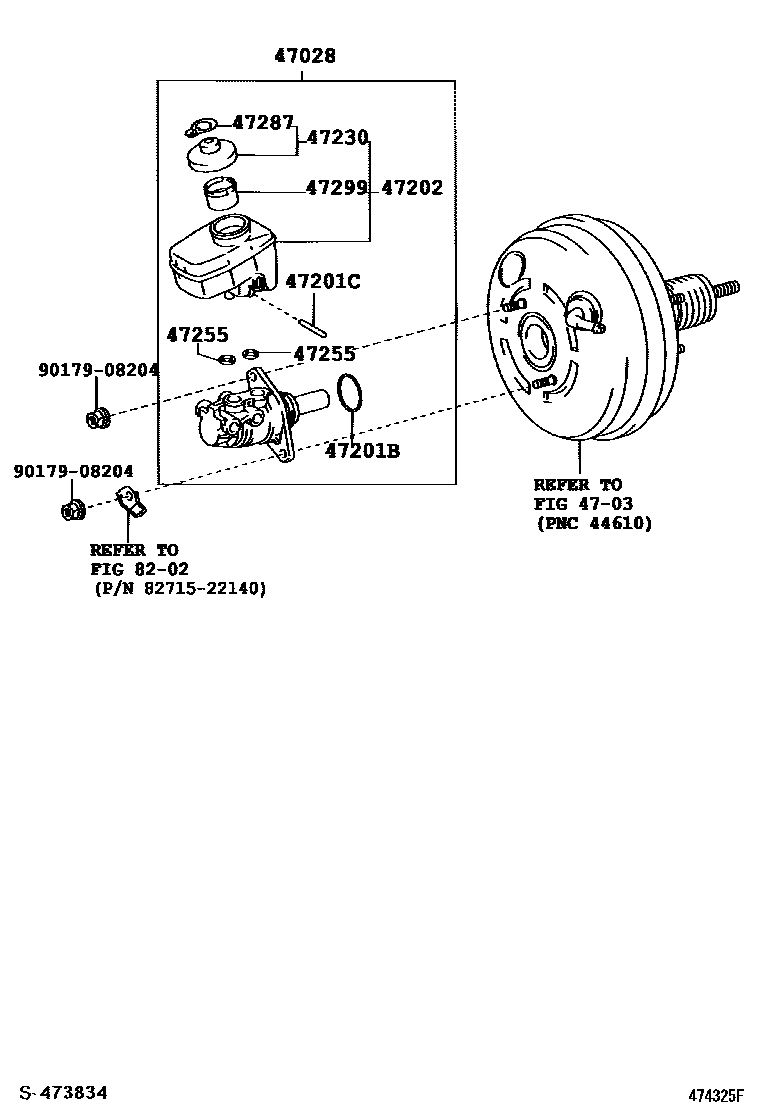

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGRX12#200411-200610

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGRX12#200411-200610

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRX12#200411-200610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGRX12#200411-200610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRX12#200411-200610

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGRX12#200411-200610

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRX12#200411-200610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRX12#200411-200610

8202

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
