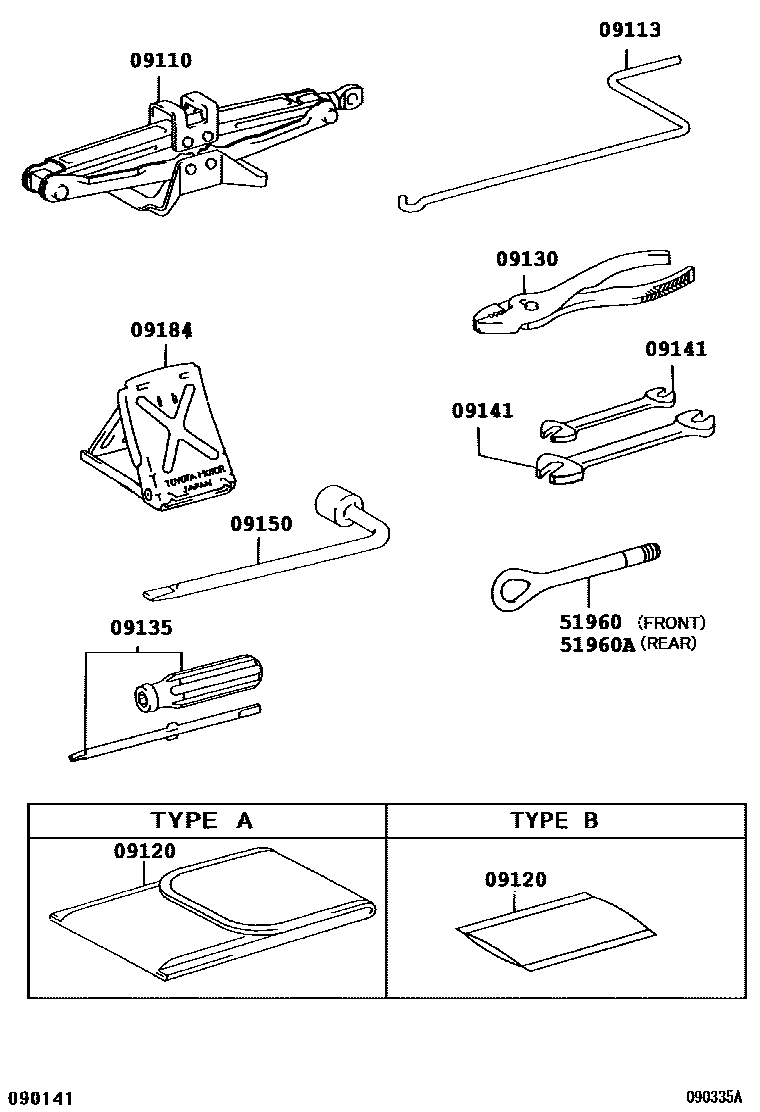

STANDARD TOOL

09110JACK ASSY

main09111-50051iGRX12#200411-200610

sub09111-76011

09113HANDLE, JACK

main09113-13040iGRX12#200411-200610

09120BAG, TOOL

main09120-24020

main09120-28040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iGRX12#200411-200610

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51961-50030iGRX12#200411-200909

51960AHOOK ASSY, REAR

main51961-50030iGRX12#200411-200909

10 parts on this diagram · 1 diagram in section
